GB
General notice
(liability): the
details of
this technical
documents serve
for description.
Consents regarding
the availability
of certain
features or
regarding a
certain purpose
always require
a special
written agreement.
9.
Drawings
Page No.
30
-GB
9 -
9.1
We reserve the right
to make technical
changes!

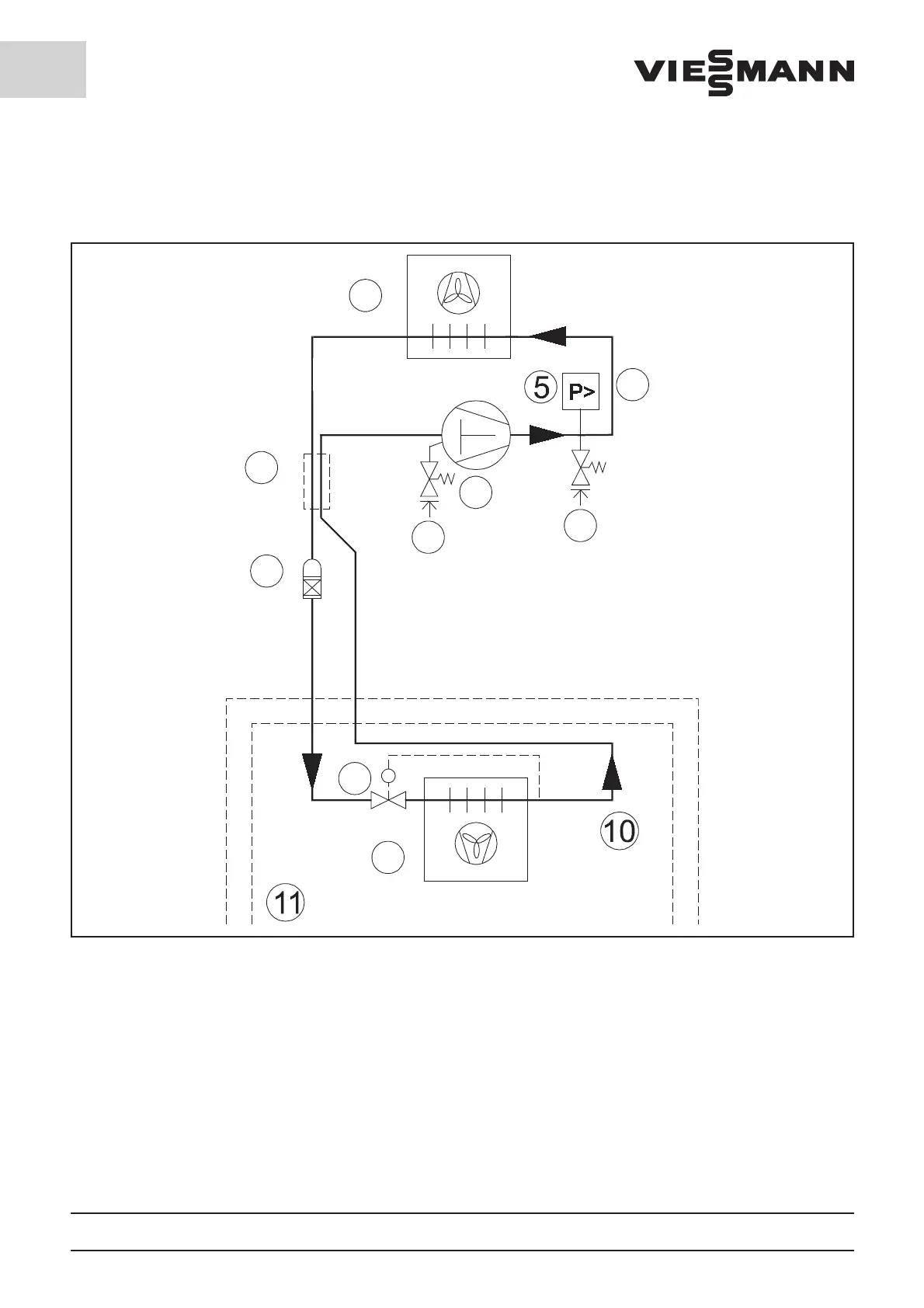

9.1 Refrigeration
circulation schematic
1
2
6
7
8
9
3
3
4
1
Compressor
2
Pressure line
3
Schrader test
connections
4
Air cooled
condenser
5
High-pressure switch
6
Heat exchanger
7
Collector/Dryer
8
Thermal expansion
valve
9
Evaporator
10
Suction line
11
Coldroom
29
31
Table of Contents
Default Chapter
2
Table of Contents
2
1 Description
3
Deep-Freeze Unit
3
Refrigeration Unit
3
2 General Information
3
Excepts from Our Warranty Conditions
3
Standards and Regulations
3
Transport
4
Delivery Condition for Wall-Hanging Units
4
Delivery Condition for Split Units
4
Unpacking and Handling
4
Energy Conservation
4
3 Cleaning and Maintenance of the Refrigeration Unit
5
Disposal of Cooling Agent
5
4 Installation of a Wall-Hanging Unit in a Viessmann Cold Storage Cell
6
Connecting a Remote Control Unit (SD Control)
10
5 Installation of a Split Unit in a
11
Viessmann Cold Storage Cell
11
Installation of the Condenser Unit
11
Drill Template for Attachment of the Large Condenser Unit
12
Drill Template for Attachment of the Small Condenser Unit
12
Installation of the Evaporator Unit
13
Drill Template for Attachment of the Large Evaporator Unit
13
Drill Template for Attachment of the Small Evaporator Unit
13
Layout and Installation of the Pipelines
14
Layout and Installation of the Electrical Lines
14
Installation of the Defrost Water Drain Hose
15
7 Coldroom Electrical Power Supply
16
6 Drainage of Defrost Water
16
Coldroom Electrical Power Supply
16
Connecting the Door Contact Switch
16
Refrigeration Unit with Electronic SD Control Unit
16
Connecting the Fault Report Contact
17
Power Supply Connection and Commissioning
17
CEE Mains Plug
18
8 Operating the SD Control Unit
19
Normal Operation
19
Parameter Entry
20
Entry of Nominal Temperatures
20
Entry of Defrosting Times
20
Selection of Coldroom Humidity
21
Selection of Language for Display Indications
21
Password and Keyboard Lock
21
Fault Report
21
Parameter List
22
Description of Operating Modes and the Respective Parameters
27
9 Drawings
30
Refrigeration Circulation Schematic
30
10 Faults
33
Emergency Operation
33
11 Favourable Storage Specifications
36
Cold Storage
36
Deep-Freeze Storage
36
Other manuals for Viessmann CS 900
