Installation Instructions Extension EA1
Installation
Extension kit for installation on a wall
Components:
H EA1 extension module
H KM BUS plug aVG
H Power cord pre-wired to plug fÖ
H Digital inputs DE1, DE2 and DE3 plugs
H 0-10VDC input plug
H Programmable output plug aBJ
H Accessory power plug fÖA

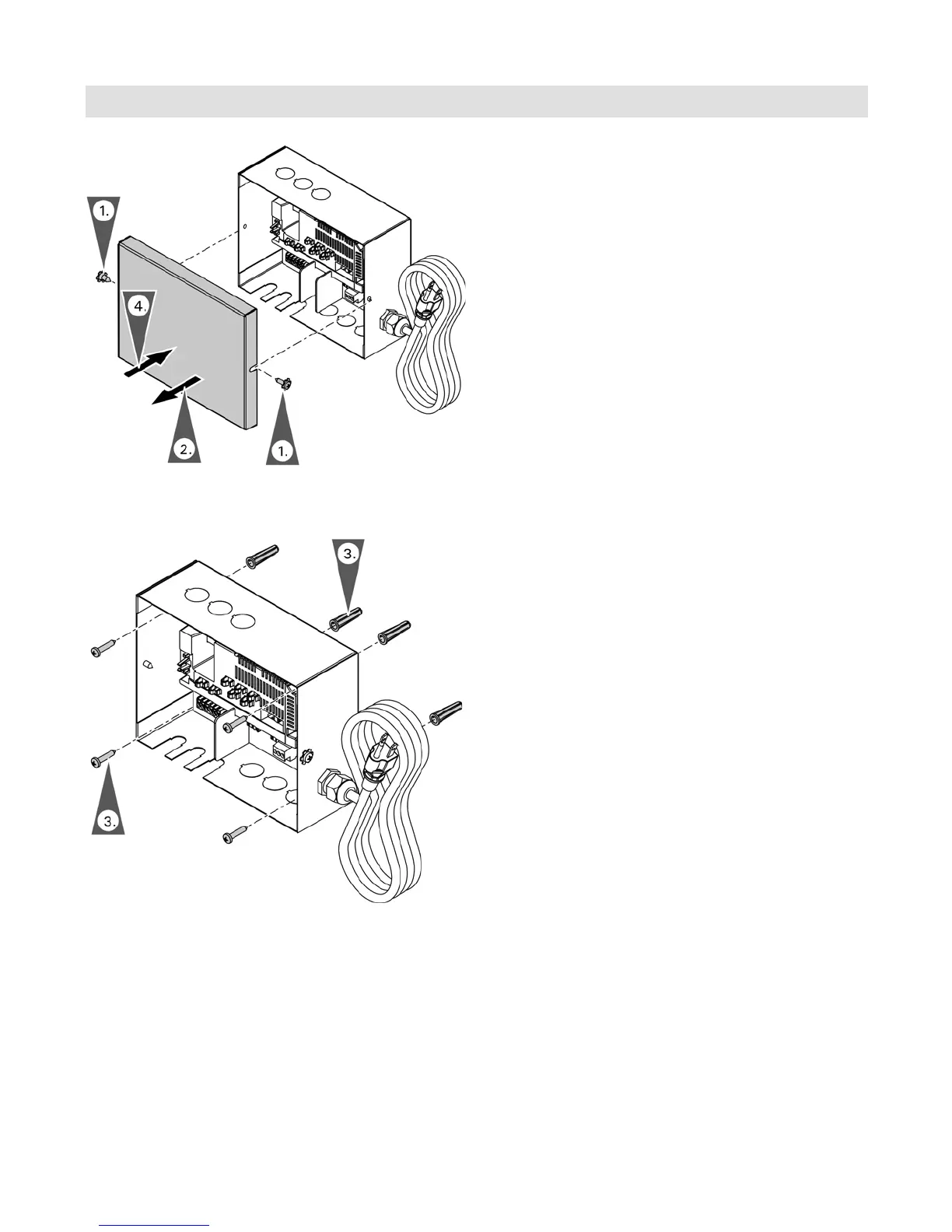

Mounting the Extension Kit
1. Loosen the retaining screws from the extension kit
encloser (do not remove) .
2. Remove cover and set aside.
3. Mount the extension module enclosure to the wall
using the supplied hardware.
4. Install the cover.
