Tecto MD5 / MD5 eco / MD7 is a vertical, refrigerated display cabinet for remote installations.
The equipment feeding the refrigerant is housed in a separate, remote room.
Tecto MD5 / MD5 eco / MD7 cabinets can be installed individually or in parallel. Each cabinet is individually
temperature controlled and comes pre-set to the correct temperature, as determined during product order.
Heat loss is minimised by a steady vertical airflow in front of the shelves. Maintaining an unobstructed and
steady airflow is crucial for the proper operation of the cabinet.

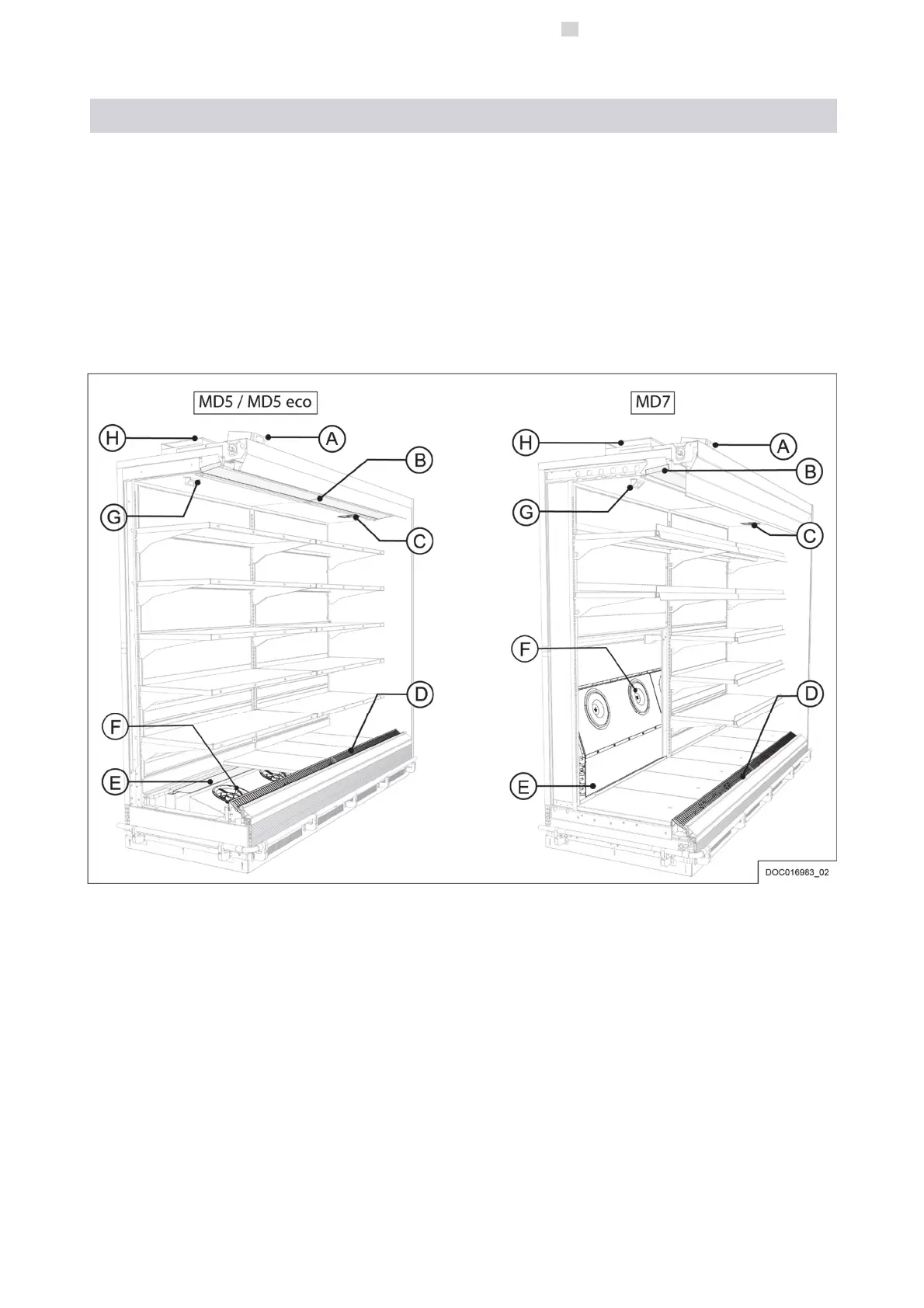

2.1. Main components
A
Control unit with li
g
ht switch
(
optional
)
B Hone
y
comb
C Equipment nameplate and loadin
g
instructions
D Suction
g
rid
E Evaporator
- MD5 / MD5 eco: underneath bottom plates, behind fans
- MD7: behind wall panels, below fans
F Evaporator fans
- MD5 / MD5 eco: underneath bottom plates
- MD7: behind wall panels
G Temperature displa
y
(
optional
)
H Electrical connection box
2. General information

Viessmann Tecto MD5 Specifications

General

Brand	Viessmann
Model	Tecto MD5
Category	Refrigerator
Language	English
