Viessmann Vitocal 100-A - 12 Technical Data; Pressure Drops

ACT Technical water inertial storage tanks
18
6020938-02
12 TECHNICAL DATA
TECHNICAL SPECIFICATIONS
Unit of
measurement
Technical storage tank
50 litres
75 litres
95 litres
Capacity litres 50 75 95
Max operating temperature
°C
95
Operating pressure bar 3
Max pressure bar 6
Net/gross weight
kg
60/69
65/74
69/78
Full load weight kg 110 140 165
Material Steel SJ235
Painting
Black solvent-based exterior paint
TECHNICAL SPECIFICATIONS
Unit of
measurement
Framework
Width
Minimum-maximum height
Depth
Dimensions (WxHxD) mm 1360 504 – 527 466
Max packaging dimensions (WxHxD) mm 1445 657 690
Material
Painted and galvanised steel
Painting Polyurethane powder
TECHNICAL SPECIFICATIONS
Unit of
Expansion Vessel Kit (for all sizes)
Capacity
litres
18
Operating pressure bar 1.3
Max pressure bar 3.0
Operating weight kg 15
TECHNICAL SPECIFICATIONS
Unit of
Electrical Heater Kit (for all sizes)
Power
kW
4.5
3
2
1.2
Voltage
V
230
3x230
230
3x230
230
3x230
230
TECHNICAL CHARATTERISTICS WITH INSTALLED ANTIFREEZE KIT
Unit of
t
Total depth of the system mm 553
Operating pressure bar 0.01 - 8
Maximum temperature
°C
80
N.B.the technical data are indicative and are subject to change. Please refer to the technical labels on the units.
CAUTION: The minimum temperature allowed for storing the units is 5°C.

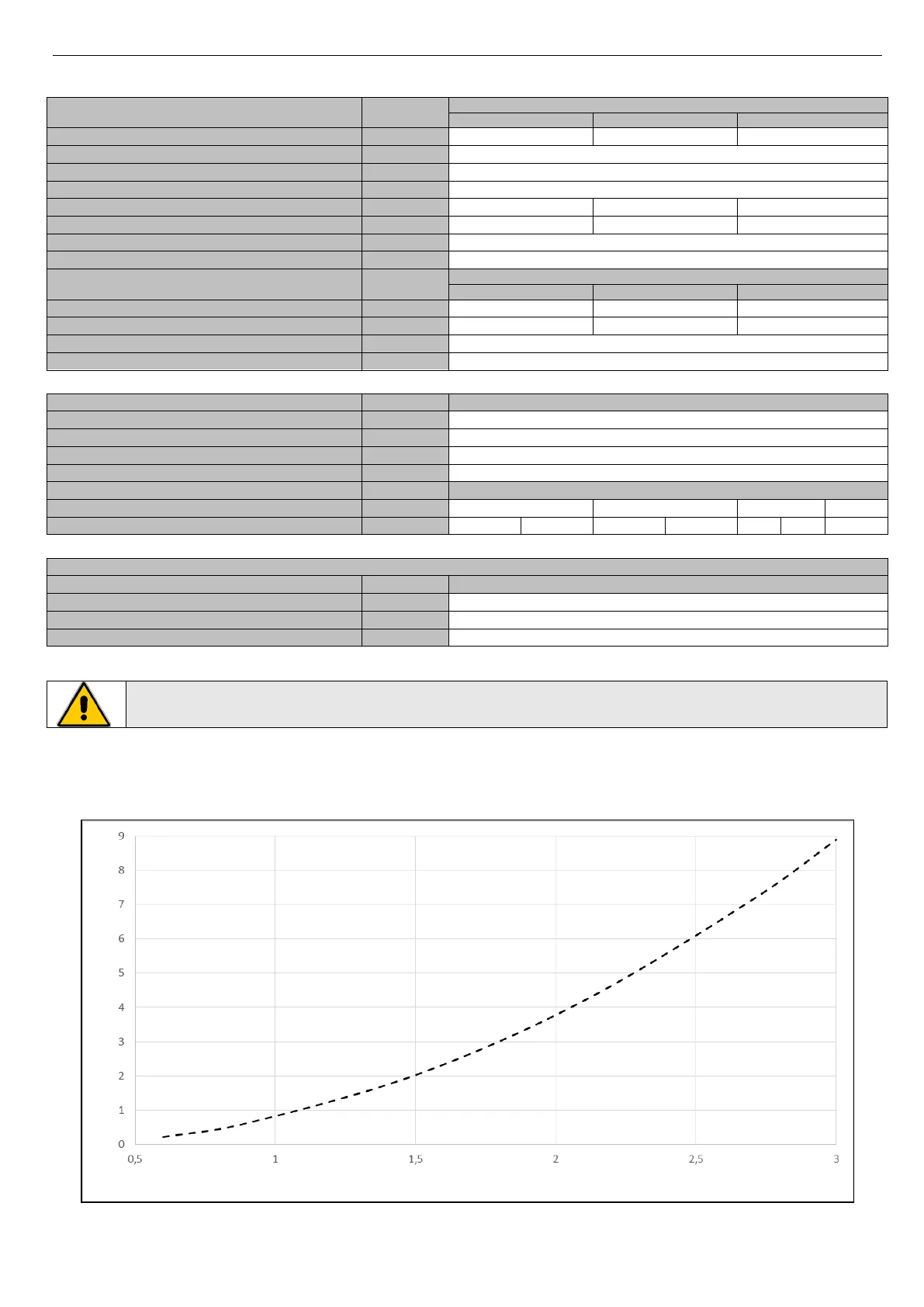

12.1 PRESSURE DROPS
The characteristic curve corresponds to the pressure drops of technical water inertial tank. These drops must
be subtracted from the useful head data provided in the user-installer manual of Vitocal 100-A units.
Portata / Flow rate [mc/h]
Perdite di carico / Pressure drop [kPa]
