ELECTRICAL DATA
When you have installed the electric heater kit, it is necessary to make the connections reported in
Paragraph 6.1.2 and to adapt the power supply according to the chosen heater type and to the absorbed
powers and electric currents given in the table below. If there's any doubt about the installed electric heater
kit, please see chapter 6 comparing it to the associated unit’s code which you can read on the technical label
applied on the unit itself.
Heater Model
Maximum input
power
Maximum input
current
Fuses Power supply
2 kW SINGLE-PHASE
2 kW
8,70 A
10 A
230V/1/50Hz
3 kW SINGLE-PHASE
3 kW
13,04 A
20 A
230V/1/50Hz
4,5 kW SINGLE-PHASE
4,5 kW
19,57 A
20 A
230V/1/50Hz
1,2 kW SINGLE-PHASE
1,2 kW
5,22 A
6 A
230V/1/50Hz
2 kW THREE-PHASE
2 kW
2,89 A
4 A
400V/3P+N+T/50Hz
3 kW THREE-PHASE
3 kW
4,34 A
8 A
400V/3P+N+T/50Hz
4,5 kW THREE-PHASE
4,5 kW
6,50 A
8 A
400V/3P+N+T/50Hz

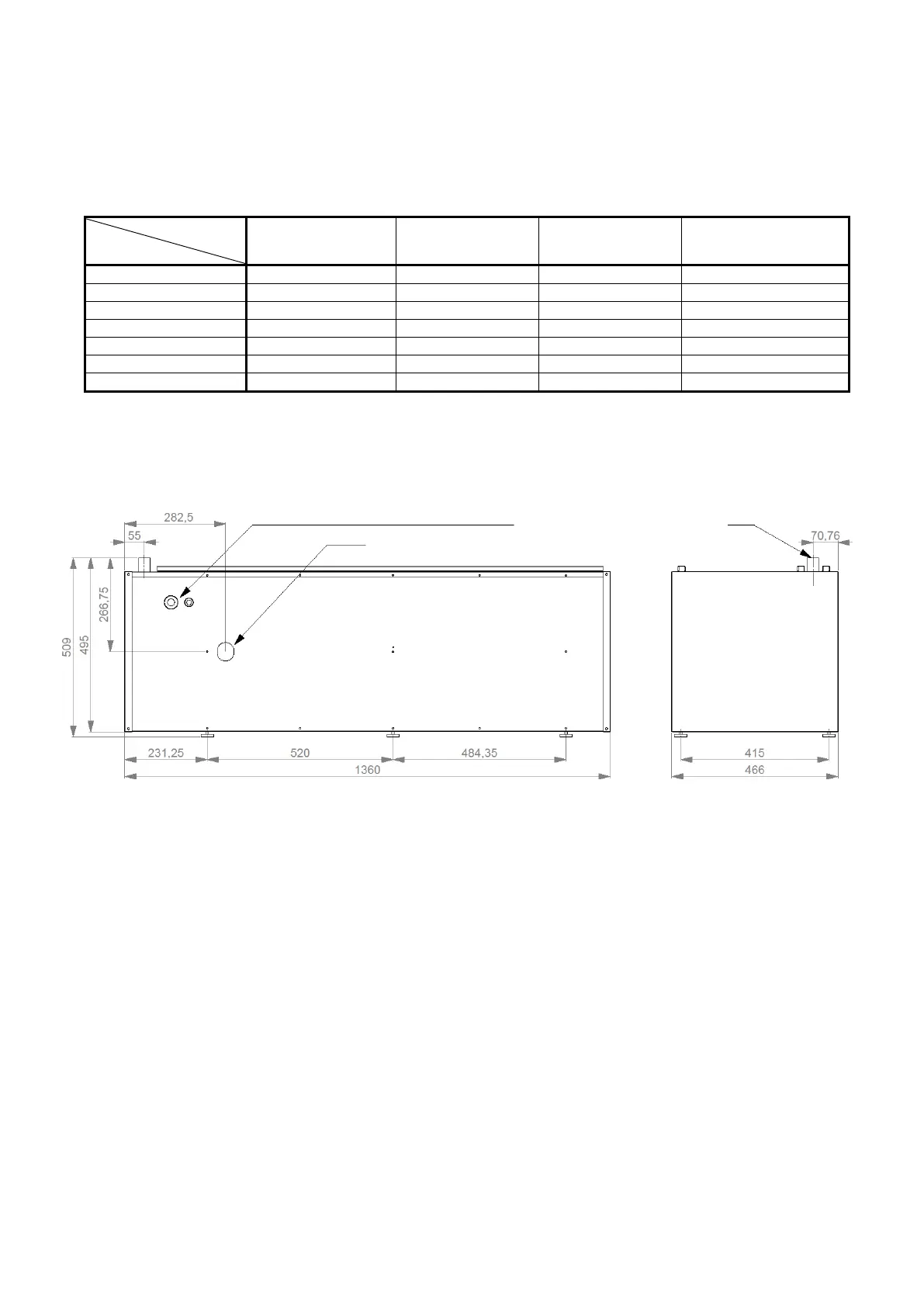

13 DIMENSIONS
13.1 DIMENSIONS
CABLE GLAND FOR ELECTRIC HEATER KIT
OUT 1"
IN 1"
