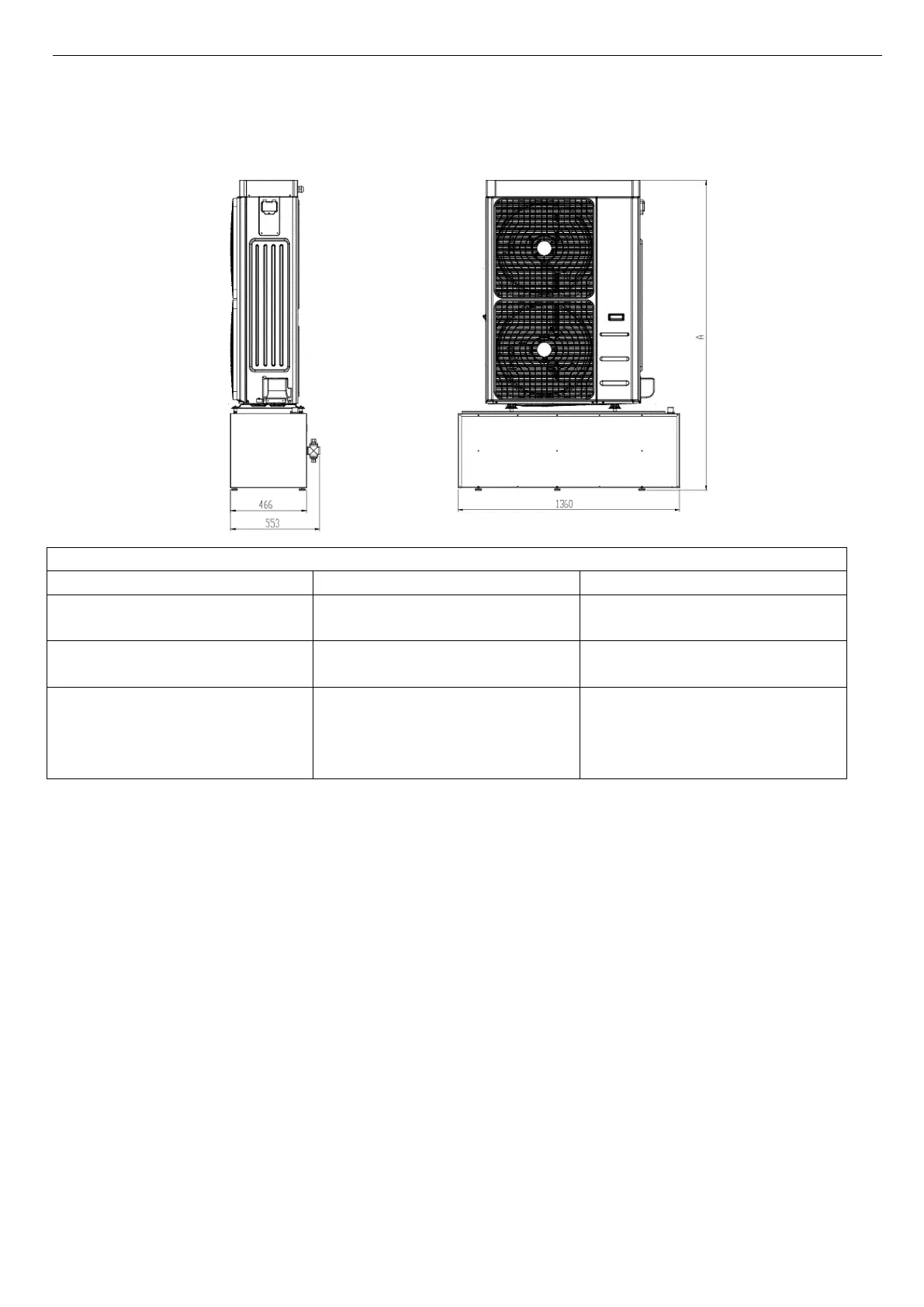

13.2 FOOTPRINT WITH VARIOUS SIZES OF Vitocal 100-A.
13.2.1 Footprint with Vitocal 100-A ranges
VARIATION OF THE HEIGHT (A) DEPENDING ON THE ADJUSTMENT OF SUPPORTING FEET
MODEL Vitocal 100-A
MINIMUM
MAXIMUM
AWO-M-AC 101.A06
AWO-M-AC 101.A08
1270 mm 1293 mm
AWO-M-AC 101.A10
AWO-M-AC 101.A12
1400 mm 1423 mm
AWO-M-AC 101.A14
AWO-AC 101.A14
AWO-M-AC 101.A16
AWO-AC 101.A16
1900 mm 1923 mm
