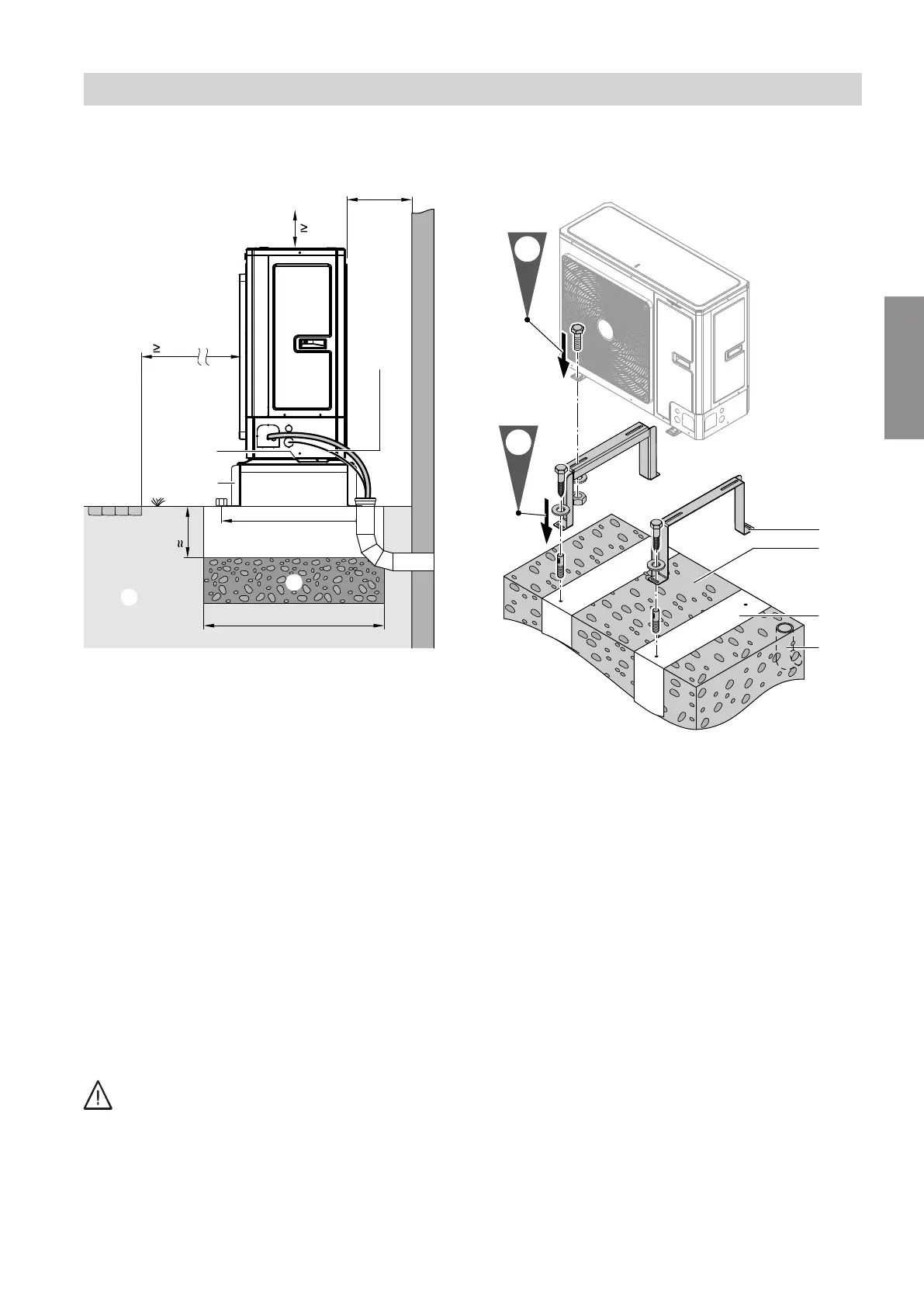

Floorstanding installation with support; line entry
below ground level
3000
K
L
B
A
b
300
E
730
600
C
F
M
200
Fig. 12
b Wall clearance for cable entry below ground level:
See "Minimum clearances".
A
Supports for floorstanding installation
B
Openings in the base plate for free drainage of
condensate:
Do not seal the openings.
C
Foundation strips
E
Frost protection for foundations (compacted
crushed stone, e.g. 0 to 32/56 mm); thickness of
layer subject to local requirements and building
regulations
F
Indoor/outdoor unit connecting cables and outdoor
unit power cable:
Route the cables free of strain.
K
Pathway, patio
L
Ground
M
DN 125 KG conduit with cover and 3x 30° pipe
bends, sealing of cable entry in the cover on site
Installing an outdoor unit on foundations
Danger
Leaks in the refrigerant lines can cause refriger-
ant to collect in the KG conduit. Some refriger-
ants, e.g. R32, form flammable mixtures with air.
Fire can cause serious damage to health.
When working on the KG conduit, ensure that
the refrigerant lines are tight.
Note
We recommend letting condensate drain away freely,
without a condensate pipe.
4x
4x
A
C
D
2.
1.
B
Fig. 13
A
Support for floorstanding installation (accessories)
B
Gravel bed as condensate soakaway
C
Concrete foundations: See Chapter "Foundations".
D
DN 125 KG conduit (only for line entry below
ground level)
Installation sequence
Installing the outdoor unit (cont.)
