5608 488 v1.2
Vitocell 100-B Installation Instructions
Set-up and Connections
120 USG (450 Liter) Tank Installation (continued)

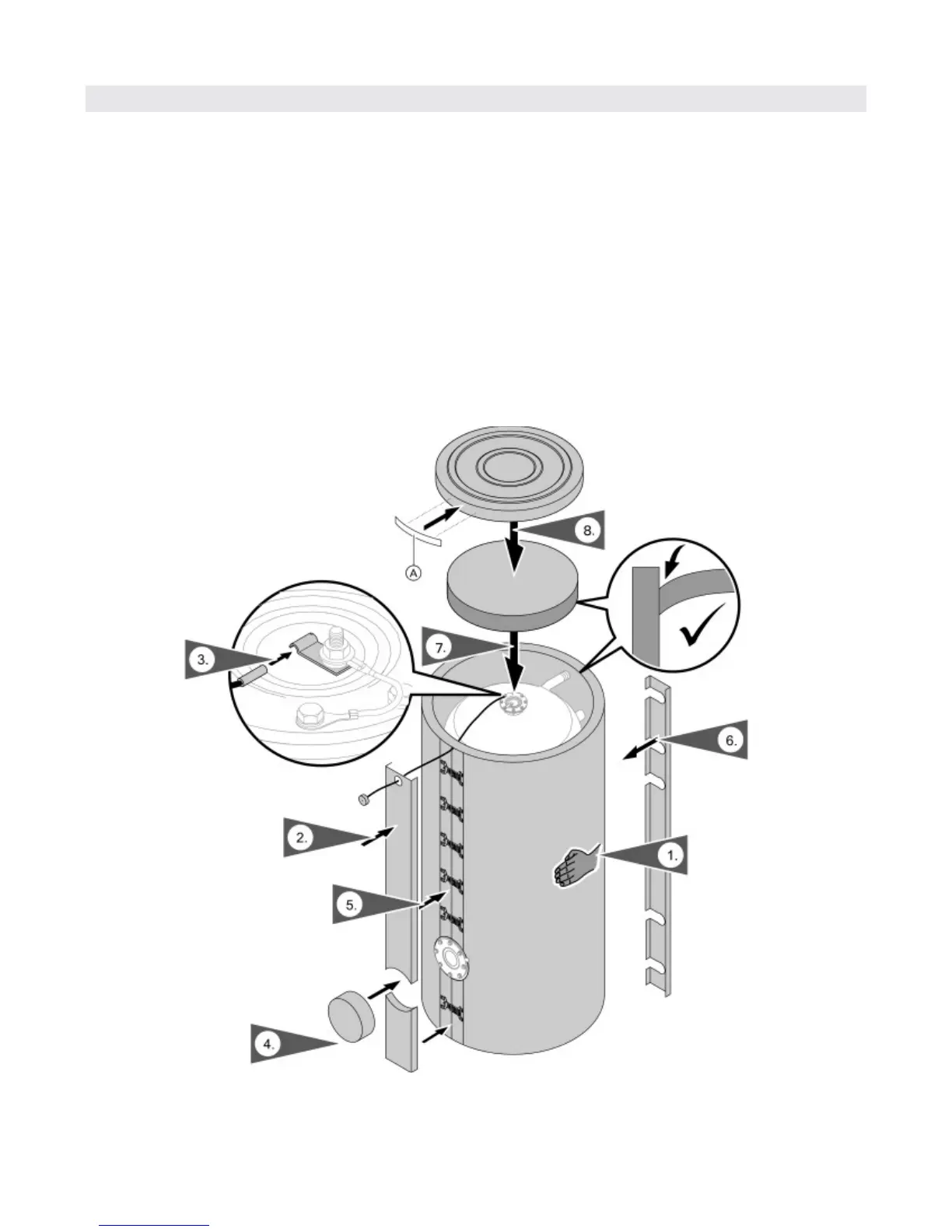

Fitting the thermometer and thermometer sensor
(if supplied) and covers
1. Smooth out the insulation jacket by tapping the jacket
evenly against the tank.
2. Route thermometer capillary tube through the
front cover hole and insulation jacket, then snap the
thermometer in place.
3. Insert the thermometer probe under the clip.
4. Install the front cleanout cover and the front lower
seam cover.
5. Install the upper front seam cover.
6. Install the back seam cover.
7. Install the top insulation and press down the edges
as shown.
8. Install the top lid and press the logo A into the lid.
Note: Seal the hole in the seam cover below the
thermometer with a cover.
