ViewSonic CDE3204 User Manual

6

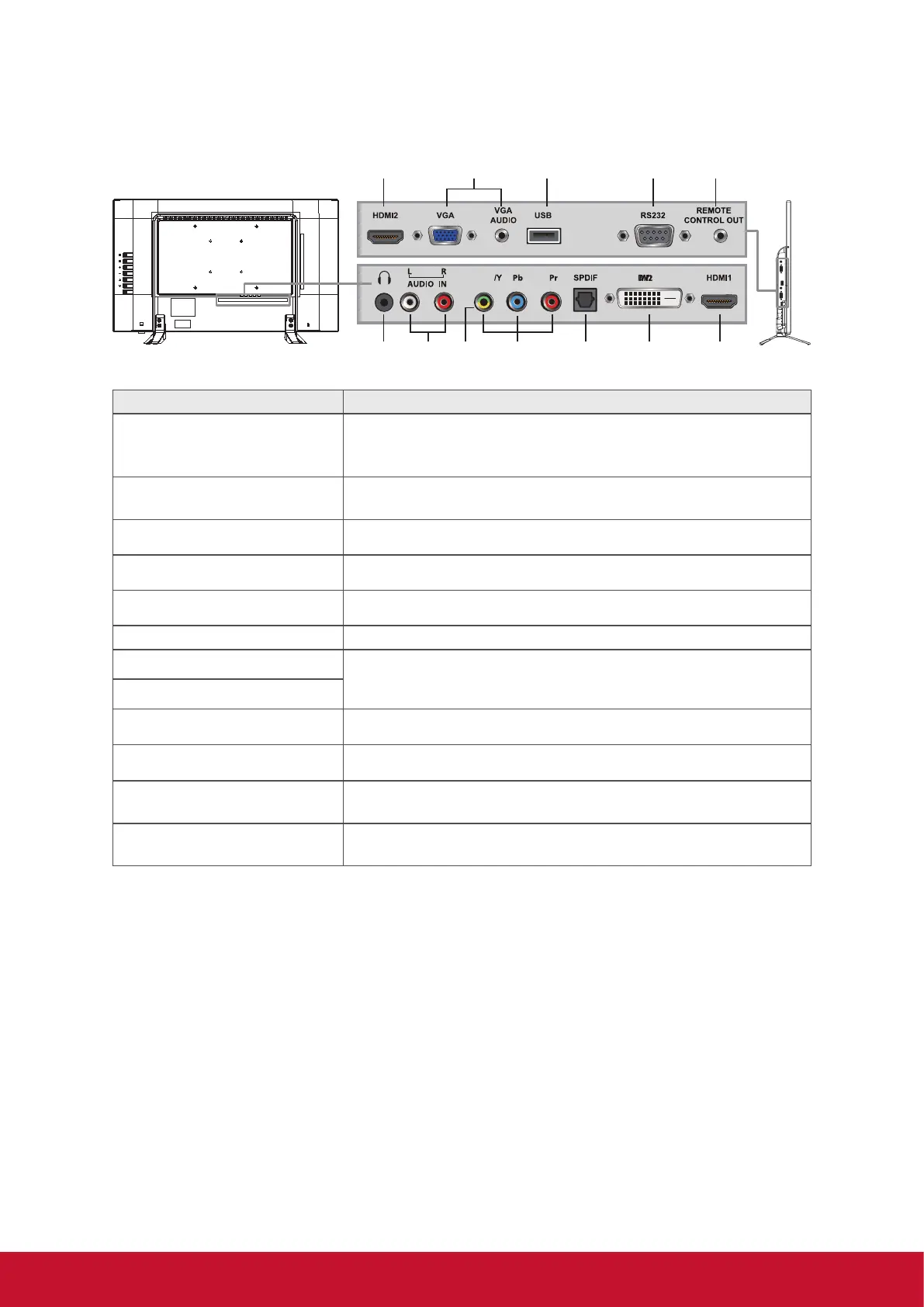

Rear & Side View of the Product
1089 1211
1 2 3 4567
CVBS
Item Description
1 Earphone Jack
Connect to earphones. By connecting the earphones, you can
listen to the sound from the display through the earphones.
If you connect the earphones, the display speakers will be muted.
2 Audio input (left/ right)
Connect to the corresponding audio connectors on your A/V
device.
3 CVBS input Connect to the CVBS input of A/V devices.
4 YPbPr signal input Connect to the YPbPr output of YPbPr device.
5 SPDIF Optical output Connect to the SPDIF input of Audio amplifier.
6 DVI-D Connect to the DVI-D of PC.
7 HDMI 1 input (with MHL)
Connect to the HDMI output of A/V devices. The HDMI 1 has MHL
function to support mobile device.
8 HDMI 2 input
9 PC/VGA in & PC Audio in Connect to a PC VGA port and a PC line / audio port.
10 USB Connect to USB devices, such as USB flash drive.
11 RS232 signal input
Reserved for the service technician’s use.
See RS232 protocol section.
12 IR Out
Connect to an IR emitter. This will enable the remote control of
external equipment.

ViewSonic CDE3204 Specifications

General

Panel life	50000 h
Pixel pitch	- mm
Response time	8 ms
Display diagonal	32 \
Display brightness	350 cd/m²
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	59.8 - 70.09 Hz
Horizontal scan range	31.47 - 63.98 kHz
LED backlighting type	Edge-LED
Supported video modes	480i, 480p, 720p, 1080i, 1080p
Display number of colors	16.78 million colors
Active display area (W x H)	698.4 x 392.85 mm
Wi-Fi	-
HDMI version	1.4
VGA (D-Sub) input ports	1
RMS rated power	20 W
Purpose	Retail
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	41 W
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Placement supported	Indoor
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	20 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	138 mm
Package width	794 mm
Package height	496 mm
Package weight	8070 g
Cables included	AC
Sustainability certificates	ENERGY STAR
Certification	UL, FCC, Energy Star 7.0, EPEAT, Mexico Energy, CE, ErP, EAC

Weight and Dimensions

Depth	57 mm
Width	733 mm
Height	431.2 mm
Weight	6300 g
