HDMI Timing Reference Chart
No. Mode HDMI DVI
1 VGA60 (640x480) Yes Yes
2 SVGA60 (800x600) Yes Yes
3 XGA60 (1024x768) Yes Yes
4 SXGA60 (1280x1024) Yes Yes
5 WXGA60 (1360x768) Yes Yes
6 1280 x 800 NA NA
7 1440 x 900 Yes Yes
8 1680 x 1050 Yes Yes
9 1920 x 1080 Yes Yes
10 480i60 Yes Yes
11 576i50 Yes Yes
12 480P60 Yes Yes
13 576P50 Yes Yes
14 720P50 Yes Yes
15 720P60 Yes Yes
16 1080I50 Yes Yes
17 1080I60 Yes Yes
18 1080P50 Yes Yes
19 1080P60 Yes Yes
20 1080P24 Yes Yes
21 1080P30 Yes NA

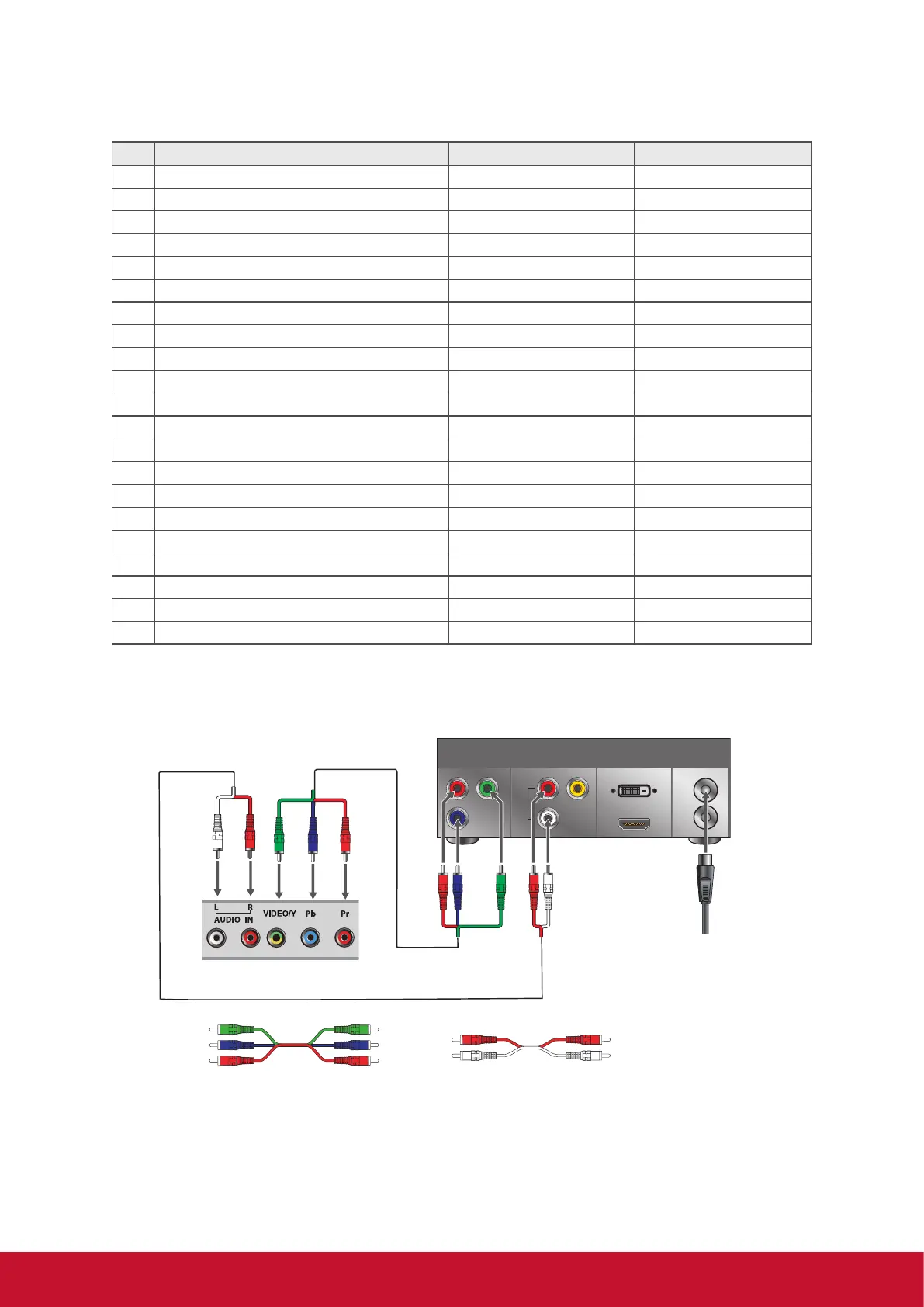

YPbPr or Component Connection
Rear side of the display
HD cable box /
HD satellite box
CATV / Satellite
antenna cable
Audio cable
Component cable
Component cable
Audio cable
COMPONENT
VIDEO OUT
Pr Y
VIDEO
DVI-HDTV OUT
HDMI OUT
OUT
IN
AUDIO
L
R
Pb
LINE OUT
Note:
YPbPr provides better quality than the AV connection.

ViewSonic CDE3204 Specifications

General

Panel life	50000 h
Pixel pitch	- mm
Response time	8 ms
Display diagonal	32 \
Display brightness	350 cd/m²
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	59.8 - 70.09 Hz
Horizontal scan range	31.47 - 63.98 kHz
LED backlighting type	Edge-LED
Supported video modes	480i, 480p, 720p, 1080i, 1080p
Display number of colors	16.78 million colors
Active display area (W x H)	698.4 x 392.85 mm
Wi-Fi	-
HDMI version	1.4
VGA (D-Sub) input ports	1
RMS rated power	20 W
Purpose	Retail
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	41 W
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Placement supported	Indoor
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	20 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	138 mm
Package width	794 mm
Package height	496 mm
Package weight	8070 g
Cables included	AC
Sustainability certificates	ENERGY STAR
Certification	UL, FCC, Energy Star 7.0, EPEAT, Mexico Energy, CE, ErP, EAC

Weight and Dimensions

Depth	57 mm
Width	733 mm
Height	431.2 mm
Weight	6300 g
