15

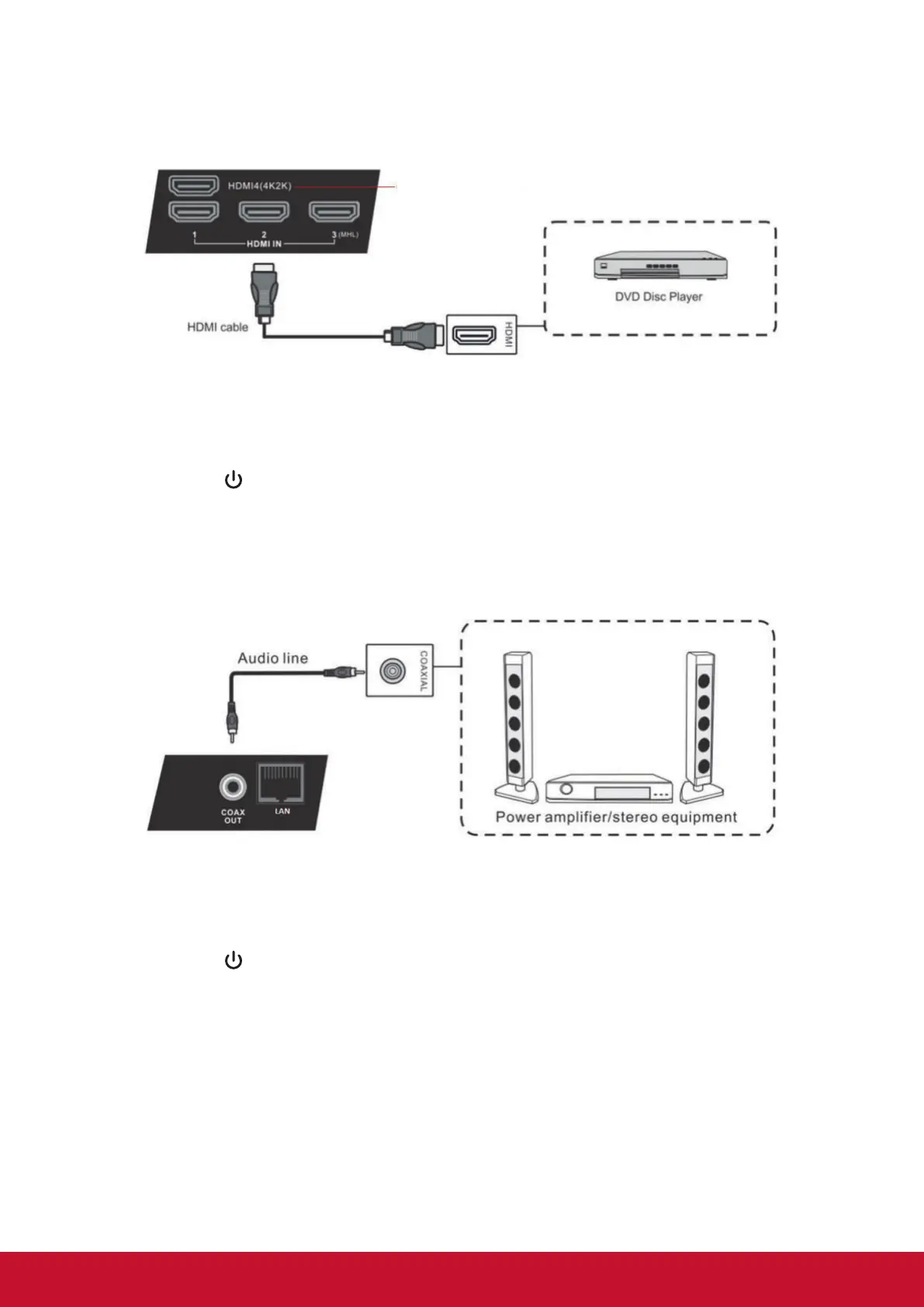

3.5 HDMI Connections
CDE8452T/SWB8452B
1. Connect the HDMI cable to the HDMI ports on your display and peripheral
device.
2. Plug in the power cord, and turn on the rear-panel power supply switch.
3. Press the
button on the right-hand side of the display to turn the screen on.
4. Press the INPUT button to switch to the HDMI source.
3.6 Coaxial Connections
1. Connect a coaxial cable from DIGITAL OUT to your sound system’s coaxial
connector.
2. Plug in the power cord, and turn on the rear-panel power supply switch.
3. Press the
button on the right-hand side of the display to turn the screen on.
