16

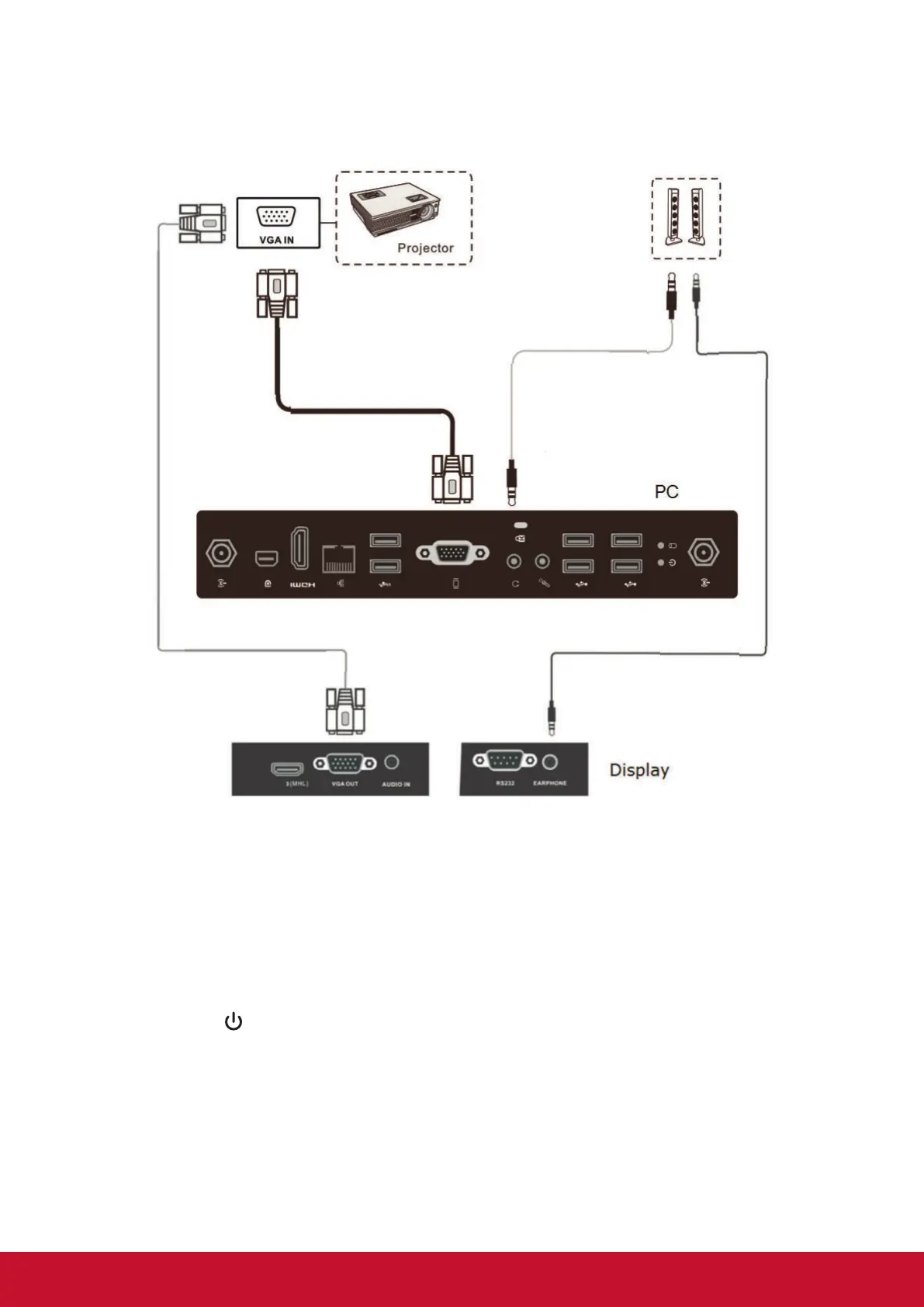

3.7 VGA Connections
1. To output video and sound to an external device via VGA connection:
• Connect a VGA cable (15-pin) from your display’s VGA OUT port to the input
port of a projector or other device.
• Connect an audio cable from the AUDIO OUT port on your display to the input
port of your speaker system.
2. Plug in the power cord, and turn on the rear-panel power supply switch.
3. Press the
button on the right-hand side of the display to turn the screen on.
4. Press the INPUT button to switch to the “PC” source.
5. Setup the VGA OUT or Multiscreen settings on your smart display.
Note: The VGA OUT function can output images from the smart display only.
