19
Connecting a VCR with Composite (CVBS) and S-Video outputs
Connecting your VCR to your LCD monitor will enable you to display video from the VCR.
Refer to your VCR owner’s manual for more information.

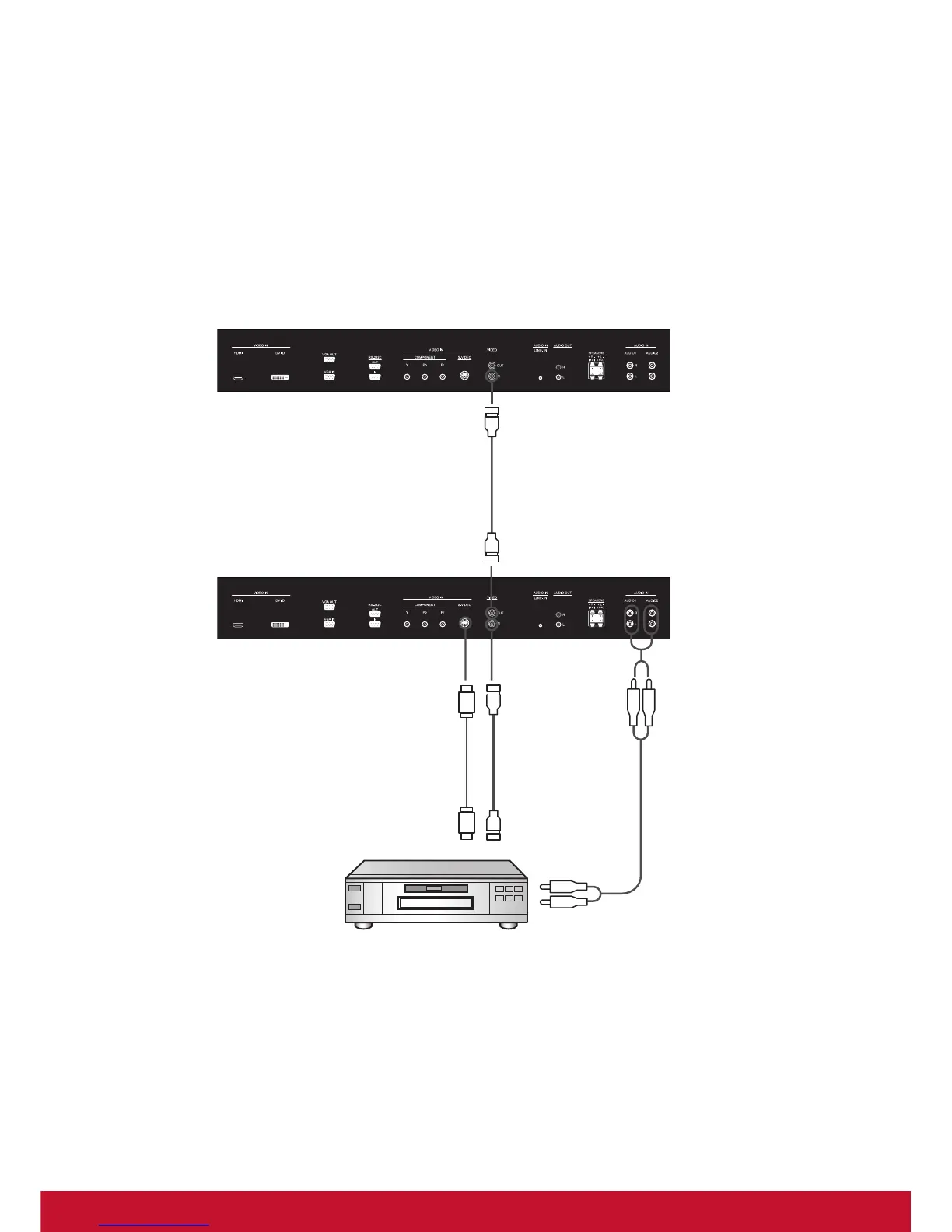

Connect the LCD Monitor to a VCR
• Connect the VIDEO-IN jack of the LCD monitor to the composite (AV) output of the VCR. Alternatively,
you can also use an S-Video cable to connect the S-VIDEO jack of the LCD monitor to the S-Video
output of the VCR.
• The AUDIO IN jacks can be used for audio input. Do not reverse the audio left and right jacks.
LCD monitor (second monitor)
VCR
To composite
(CVBS) output
To audio output
* Cables are not supplied
To S-Video output
