20

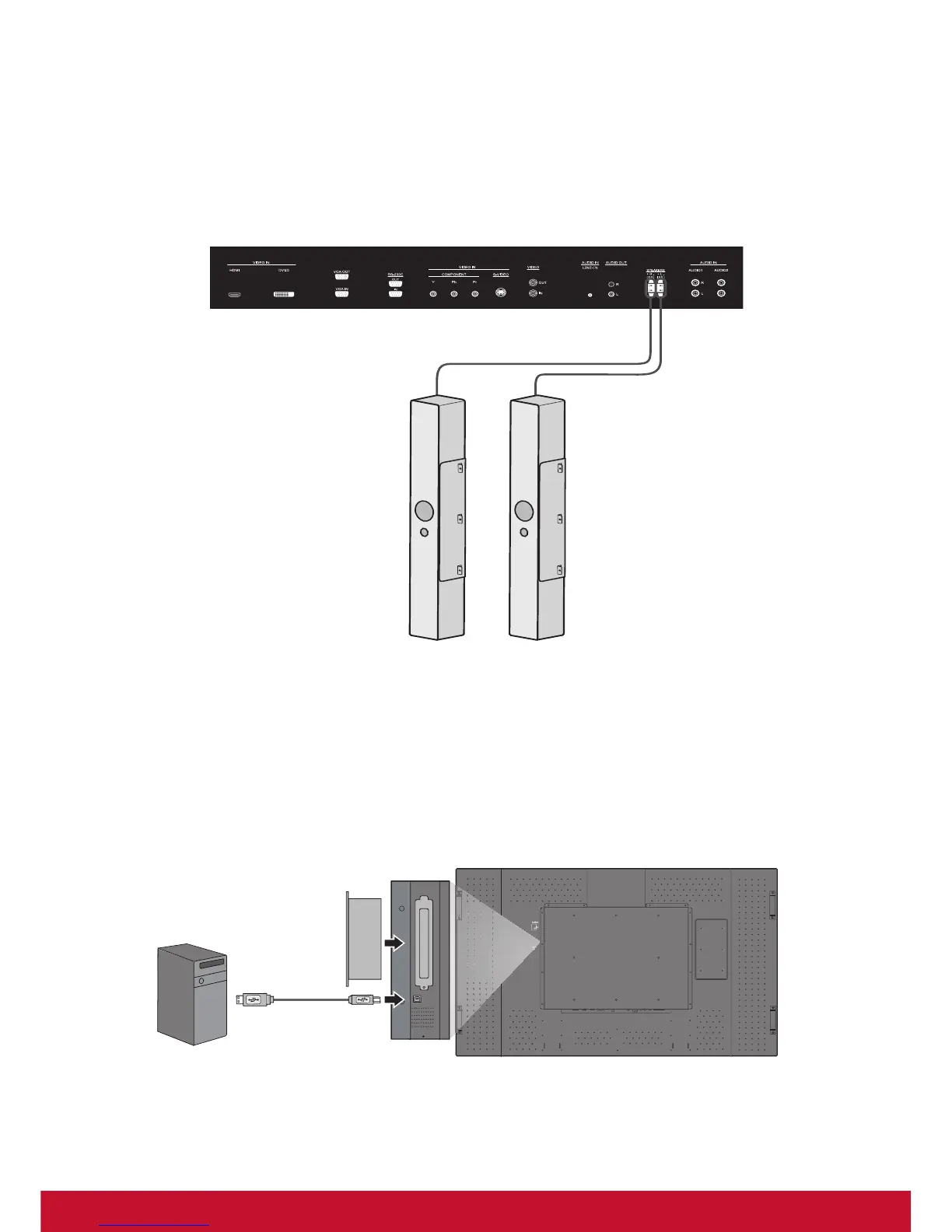

Connecting to External Speakers
This LCD monitor has a built-in 12W +12W amplifier, so you can connect your external speakers to the
LCD monitor directly. Refer to your external speakers’ owner's manual for more information.
Connect the LCD Monitor to External Speakers
• Connect the lead wires of the external speakers to the SPEAKERS jacks of the LCD monitor. Do not
reverse the audio left and right jacks.
CONNECTING THE TOUCH MODULE
• There are two ways to connect the touch module.
1. Connect the USB cable on the display to a PC.
The touch module supports easy Plug-and-Play operations. There is no need to install additional
drivers on the PC.
2.Install an OPS (Open Pluggable Specification) module in to the slot on the rear of the display. Refer to
the module’s documentation for user instructions.
External speakers
PC
Module OPS
To Next Page
