ViewSonic PJD7583w User Manual

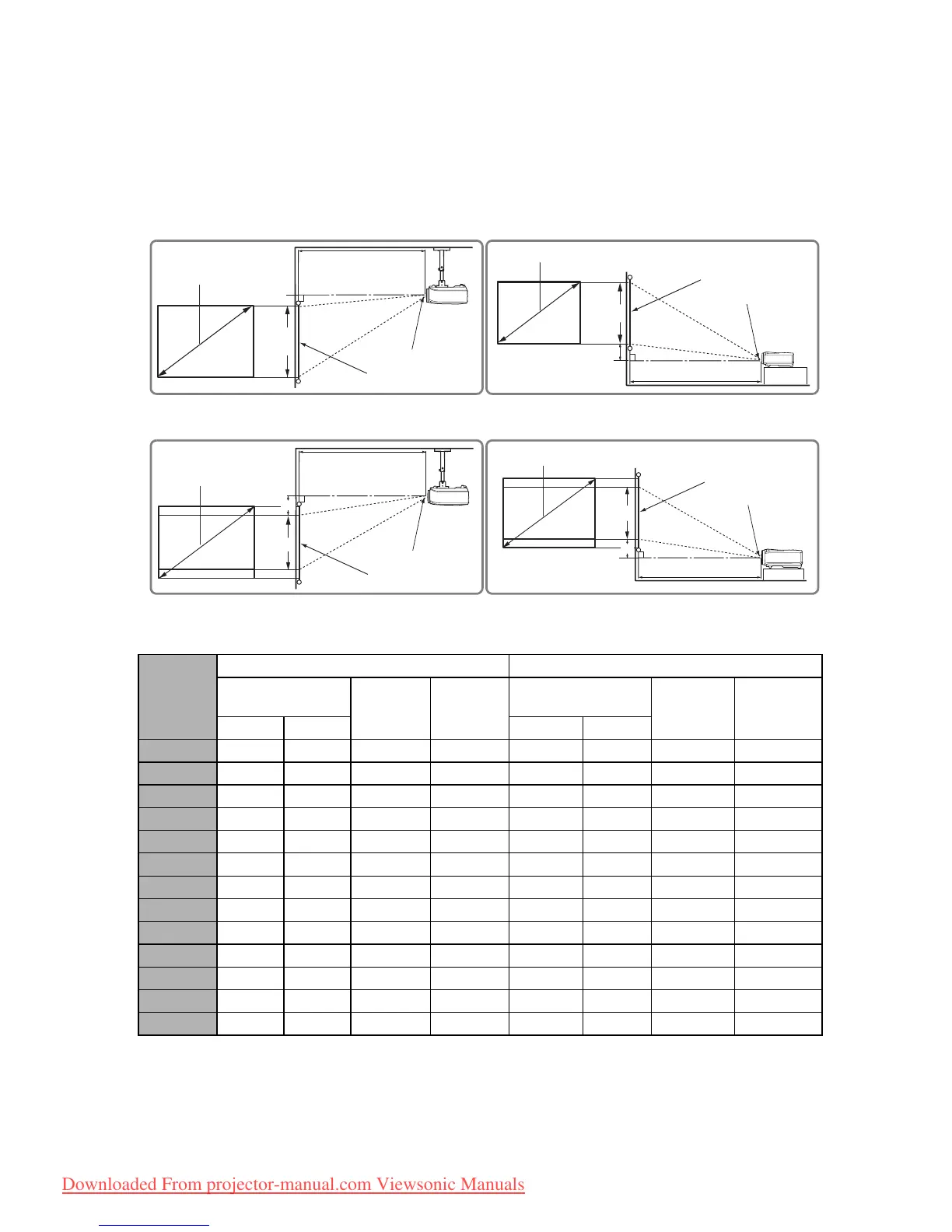

Positioning your projector 13
Projection dimensions
Refer to "Dimensions" on page 77 for the center of lens dimensions of this projector before
calculating the appropriate position.
PJD7383/PJD7383i
(a) Screen
Size
[inch (m)]
4:3 image 16:9 image
(b) Projection
distance [m (inch)]
(c) Image
height
[cm (inch)]
(d) Vertical
offset
[cm (inch)]
(b) Projection
distance [m (inch)]
(c) Image
height
[cm (inch)
(d) Vertical
offset
[cm (inch)]
min. max. min. max.
30 (0.8) 0.4 (15) 0.4 (15) 46 (18) 7 (2.7) 0.4 (15) 0.4 (15) 34 (14) 12.6 (5.0)
40 (1.0) 0.5 (19) 0.5 (19) 61 (24) 9 (3.6) 0.5 (19) 0.5 (19) 46 (18) 16.8 (6.6)
50 (1.3) 0.6 (24) 0.6 (24) 76 (30) 11 (4.5) 0.6 (24) 0.6 (24) 57 (23) 21.0 (8.3)
60 (1.5) 0.7 (29) 0.7 (29) 91 (36) 14 (5.4) 0.7 (29) 0.7 (29) 69 (27) 25.1 (9.9)
70 (1.8) 0.9 (34) 0.9 (34) 107 (42) 16 (6.3) 0.9 (34) 0.9 (34) 80 (32) 29.3 (11.6)
80 (2.0) 1.0 (39) 1.0 (39) 122 (48) 18 (7.2) 1.0 (39) 1.0 (39) 91 (36) 33.5 (13.2)
90 (2.3) 1.1 (44) 1.1 (44) 137 (54) 21 (8.1) 1.1 (44) 1.1 (44) 103 (41) 37.7 (14.9)
100 (2.5) 1.2 (49) 1.2 (49) 152 (60) 23 (9.0) 1.2 (49) 1.2 (49) 114 (45) 41.9 (16.5)
120 (3.0) 1.5 (58) 1.5 (58) 183 (72) 27 (10.8) 1.5 (58) 1.5 (58) 137 (54) 50.3 (19.8)
150 (3.8) 1.9 (73) 1.9 (73) 229 (90) 34 (13.5) 1.9 (73) 1.9 (73) 171 (68) 62.9 (24.8)
200 (5.1) 2.5 (97) 2.5 (97) 305 (120) 46 (18.0) 2.5 (97) 2.5 (97) 229 (90) 83.8 (33.0)
250 (6.4) 3.1 (122) 3.1 (122) 381 (150) 57 (22.5) 3.1 (122) 3.1 (122) 286 (113) 104.8 (41.3)
300 (7.6) 3.7 (146) 3.7 (146) 457 (180) 69 (27.0) 3.7 (146) 3.7 (146) 343 (135) 125.7 (49.5)
(a)
(c)
(b)
(e)
(f)
(d)
(a)
(d)
(b)
(e)
(f)
(c)
(a)
(d)
(c)
(b)
(e)
(f)
(a)
(c)
(b)
(e)
(f)
(d)
(f): Center of lens(e): Screen
• 4:3 image on a 4:3 screen
• 16:9 image on a 4:3 screen
