ViewSonic TD2220 User Manual

11
Do the following to adjust the display setting:
1. To display the Main Menu, press button [1].
NOTE: All OSD menus and adjustment screens disappear automatically after about 15
seconds. This is adjustable through the OSD timeout setting in the setup menu.
2. To select a control to adjust, pressorto scroll up or down in the Main Menu.

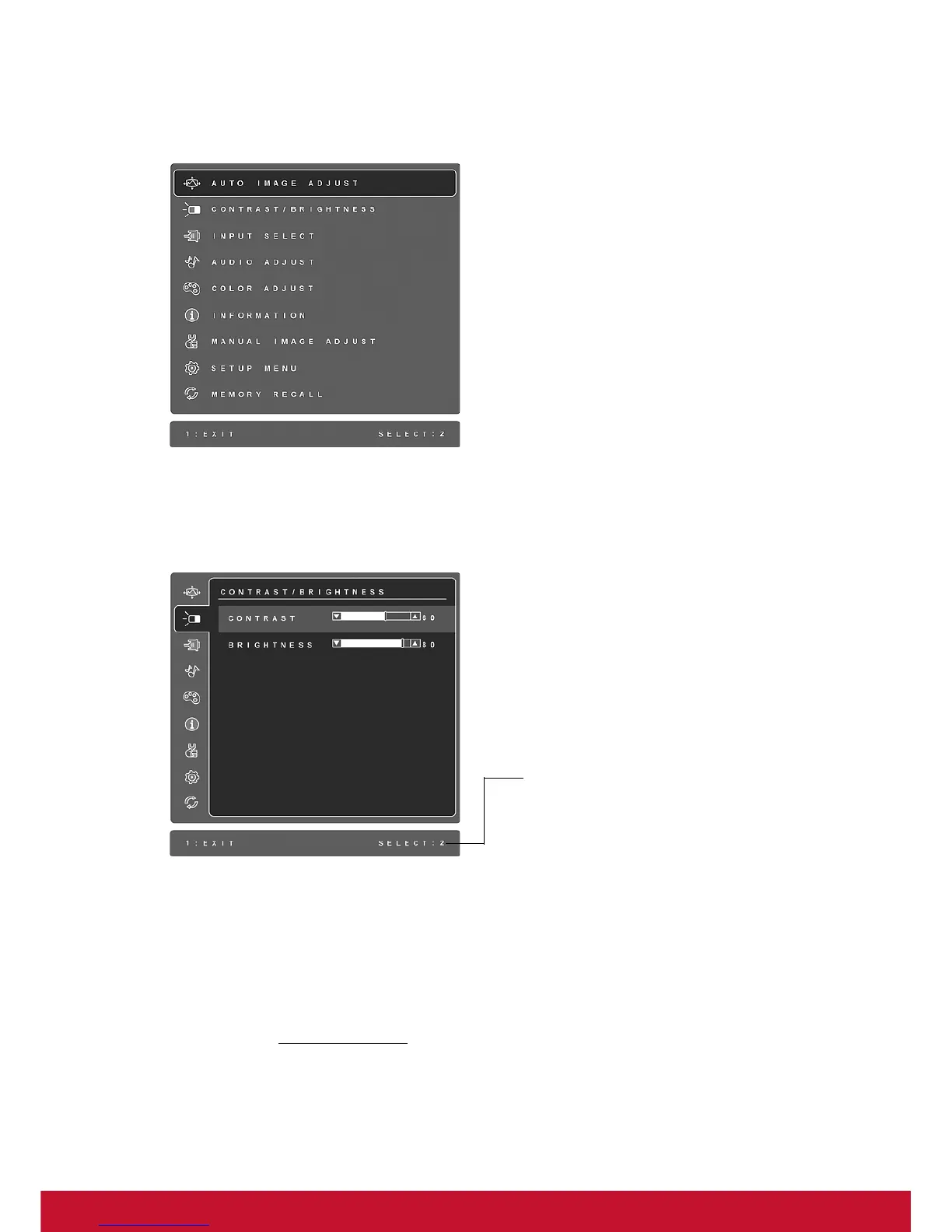

3. After the desired control is selected, press button [2]. A control screen like the one shown
below appears.
4. To adjust the control, press the up  or down  buttons.
5. To save the adjustments and exit the menu, press button [1] twice.
The following tips may help you optimize your display:
• Adjust the computer's graphics card so that it outputs a 1920 x 1080 @ 60Hz video signal to
the LCD display. (Look for instructions on “changing the refresh rate” in the graphics card's
user guide.)
• If necessary, make small adjustments using H. POSITION and V. POSITION until the
screen image is completely visible. (The black border around the edge of the screen should
barely touch the illuminated “active area” of the LCD display.)
The line at the bottom of the screen shows
the current functions of buttons 1 and 2:
Exit or select the control.

ViewSonic TD2220 Specifications

General

Full HD	Yes
Dimensions (WxDxH)	511 x 66 x 310 mm
Display viewable area (HxV)	477.5 x 269.2 mm
Dimensions (W x D x H) with stand	511 x 240 x 635 mm
Mean time between failures (MTBF)	40000 h
3D	No
Aspect ratio	16:9
Screen shape	Flat
Backlight type	W-LED
Display diagonal	21.5 \
Touchscreen type	Tabletop
Display brightness	200 cd/m²
Display technology	LED
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	1000:1
Display diagonal (metric)	54.61 cm
Viewing angle, horizontal	170 °
Digital vertical frequency	50 - 76 Hz
Digital horizontal frequency	24 - 83 kHz
Certification	CE, CB, BSMI, PSB, SASO, C-tick, e-standby, KC, UL/cUL, FCC-B (ICES003), UL CoC, Mexico Energy, GOST-R/Hygienic, UkrSEPRO, TCO 5.2, Erp, CCC, China Energy, EPEAT Silver, WEEE, RoHS, SVHC
Product color	Black
Compatible operating systems	Windows 7
Audio input	1
USB Type-A downstream ports quantity	2
Tilt angle range	20 - 5 °
Panel mounting interface	100 x 100 mm
AC input voltage	110 - 240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	26 W
Power consumption (PowerSave)	18 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90 %
Package weight	6450 g
RMS rated power	4 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	240 mm
Width (with stand)	511 mm
Height (with stand)	635 mm
Weight (with stand)	4920 g
Weight (without stand)	3960 g
