ViewSonic TD2220 User Manual

10
Adjusting the Screen Image
Use the buttons on the front control panel to display and adjust the OSD controls which display
on the screen. The OSD controls are explained at the top of the next page and are defined in
“Main Menu Controls” on page 12.
Scrolls through menu options and adjusts the
displayed control.
Audio Adjust () / Contrast ()
Power light
Blue = ON
Orange = Power Saving
Displays the control screen for
the highlighted control.
Also a shortcut to toggle analog
and digital connection.
Displays the Main
Menu or exits the
control screen and
saves adjustments.

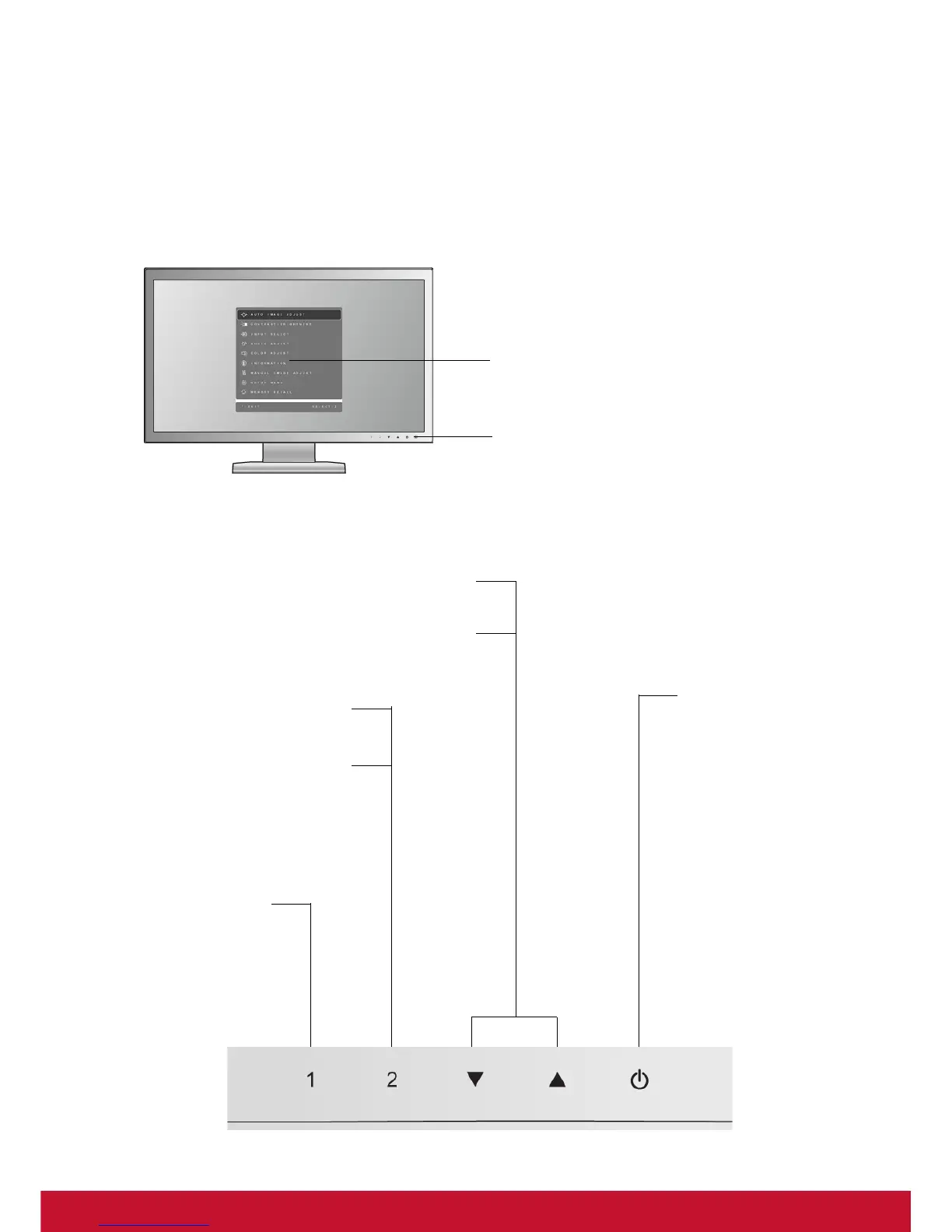

Main Menu
with OSD controls
Front Control Panel
shown below in detail

ViewSonic TD2220 Specifications

General

Full HD	Yes
Dimensions (WxDxH)	511 x 66 x 310 mm
Display viewable area (HxV)	477.5 x 269.2 mm
Dimensions (W x D x H) with stand	511 x 240 x 635 mm
Mean time between failures (MTBF)	40000 h
3D	No
Aspect ratio	16:9
Screen shape	Flat
Backlight type	W-LED
Display diagonal	21.5 \
Touchscreen type	Tabletop
Display brightness	200 cd/m²
Display technology	LED
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	1000:1
Display diagonal (metric)	54.61 cm
Viewing angle, horizontal	170 °
Digital vertical frequency	50 - 76 Hz
Digital horizontal frequency	24 - 83 kHz
Certification	CE, CB, BSMI, PSB, SASO, C-tick, e-standby, KC, UL/cUL, FCC-B (ICES003), UL CoC, Mexico Energy, GOST-R/Hygienic, UkrSEPRO, TCO 5.2, Erp, CCC, China Energy, EPEAT Silver, WEEE, RoHS, SVHC
Product color	Black
Compatible operating systems	Windows 7
Audio input	1
USB Type-A downstream ports quantity	2
Tilt angle range	20 - 5 °
Panel mounting interface	100 x 100 mm
AC input voltage	110 - 240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	26 W
Power consumption (PowerSave)	18 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90 %
Package weight	6450 g
RMS rated power	4 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	240 mm
Width (with stand)	511 mm
Height (with stand)	635 mm
Weight (with stand)	4920 g
Weight (without stand)	3960 g
