13

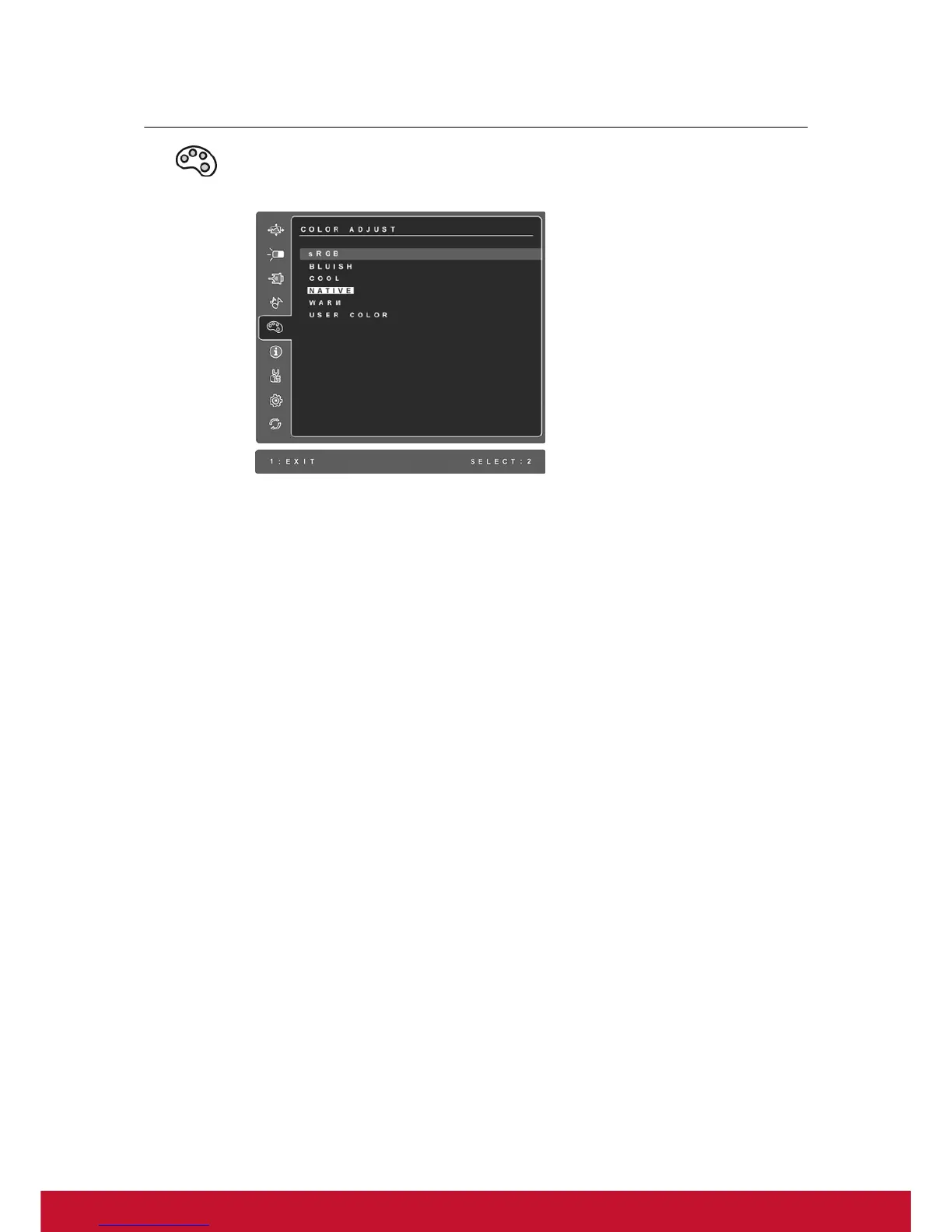

Control Explanation
Color Adjust provides several color adjustment modes, including preset color
temperatures and a User Color mode which allows independent adjustment of
red (R), green (G), and blue (B). The factory setting for this product is native.
sRGB-This is quickly becoming the industry standard for color management,
with support being included in many of the latest applications. Enabling this
setting allows the LCD display to more accurately display colors the way they
were originally intended. Enabling the sRGB setting will cause the Contrast and
Brightness adjustments to be disabled.
Bluish (9300)-Adds blue to the screen image for cooler white (used in most
office settings with fluorescent lighting).
Cool (7500)-Adds blue to the screen image for cooler white (used in most office
settings with fluorescent lighting).
Native (6500)-Adds red to the screen image for warmer white and richer red.
Warm (5000)-Adds red to the screen image for warmer white and richer red.
User Color Individual adjustments for red (R), green (G), and blue (B).
1. To select color (R, G or B) press button [2].
2. To adjust selected color, pressand.
Important: If you select RECALL from the Main Menu when the product is
set to a Preset Timing Mode, colors return to the Native factory preset.

Other manuals for ViewSonic TD2220

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ViewSonic TD2220 and is the answer not in the manual?

ViewSonic TD2220 Specifications

General IconGeneral
Full HDYes
Dimensions (WxDxH)511 x 66 x 310 mm
Display viewable area (HxV)477.5 x 269.2 mm
Dimensions (W x D x H) with stand511 x 240 x 635 mm
Mean time between failures (MTBF)40000 h
3DNo
Aspect ratio16:9
Screen shapeFlat
Backlight typeW-LED
Display diagonal21.5 \
Touchscreen typeTabletop
Display brightness200 cd/m²
Display technologyLED
Viewing angle, vertical160 °
Contrast ratio (dynamic)20000000:1
Contrast ratio (typical)1000:1
Display diagonal (metric)54.61 cm
Viewing angle, horizontal170 °
Digital vertical frequency50 - 76 Hz
Digital horizontal frequency24 - 83 kHz
CertificationCE, CB, BSMI, PSB, SASO, C-tick, e-standby, KC, UL/cUL, FCC-B (ICES003), UL CoC, Mexico Energy, GOST-R/Hygienic, UkrSEPRO, TCO 5.2, Erp, CCC, China Energy, EPEAT Silver, WEEE, RoHS, SVHC
Product colorBlack
Compatible operating systemsWindows 7
Audio input1
USB Type-A downstream ports quantity2
Tilt angle range20 - 5 °
Panel mounting interface100 x 100 mm
AC input voltage110 - 240 V
Power supply typeAC
AC input frequency50 - 60 Hz
Power consumption (typical)26 W
Power consumption (PowerSave)18 W
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 90 %
Package weight6450 g
RMS rated power4 W
Sustainability certificatesENERGY STAR
Weight and Dimensions IconWeight and Dimensions
Depth (with stand)240 mm
Width (with stand)511 mm
Height (with stand)635 mm
Weight (with stand)4920 g
Weight (without stand)3960 g
