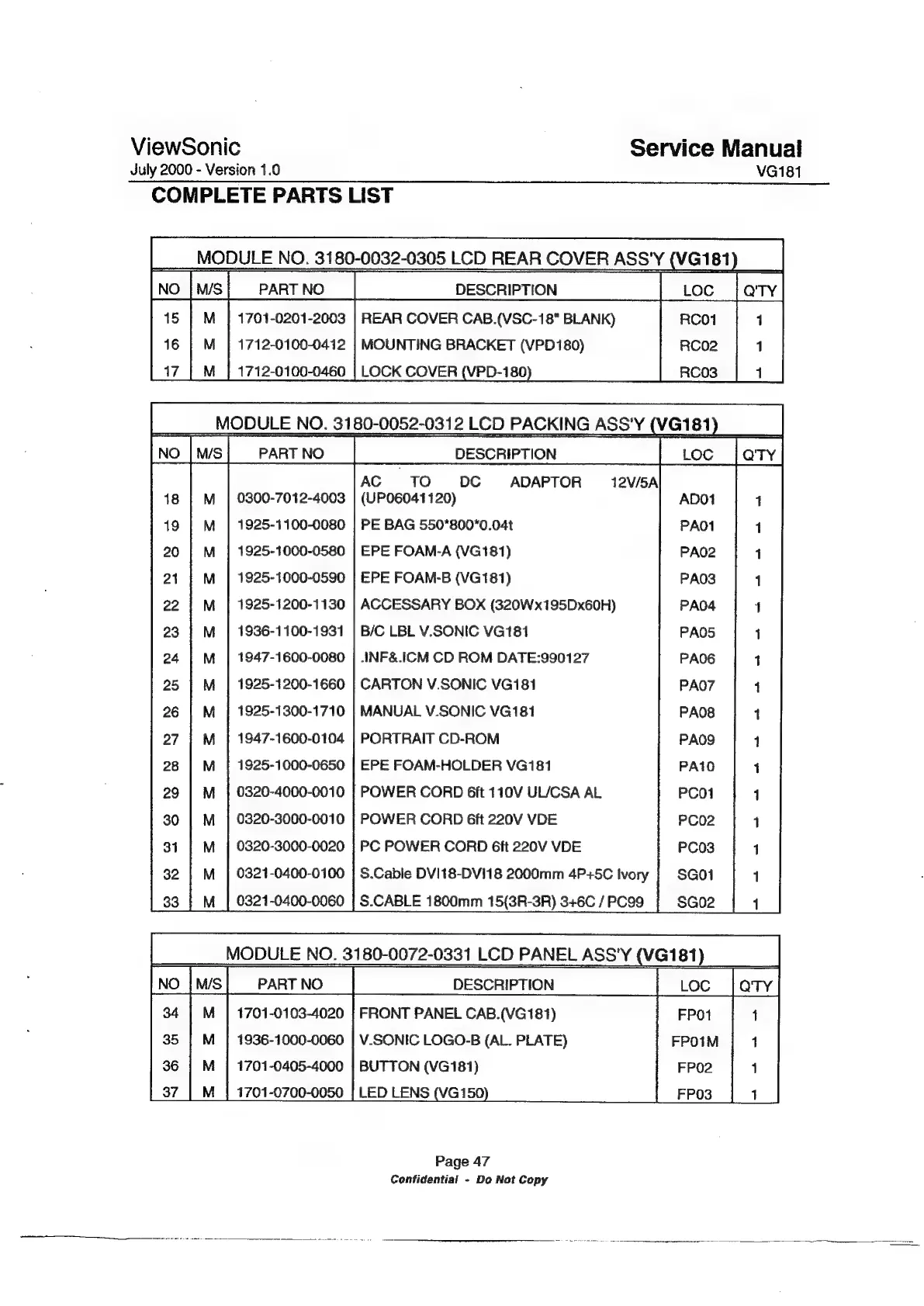

COMPLETE PARTS LIST
MODULE NO. 3180-0032-0305 LCD REAR COVER ASS'Y (VG181
No jws|__pantNo_{____oesonren___|_.oc_fory
1701-0201-2003
1712-0100-0412
1712-0100-0460
REAR COVER CAB.(VSC-18" BLANK)
MOUNTING BRACKET (VPD180)
LOCK COVER (VPD-180
RCO01
RC02
RCO3
MODULE NO. 3180-0052-0312 LCD PACKING ASS'Y (VG181
0300-7012-4003
1925-1100-0080
1925-1000-0580
1925-1000-0590
1925-1200-1130
1936-1100-1931
1947-1600-0080
1925-1200-1660
1925-1300-1710
1947-1600-0104
1925-1000-0650
0320-4000-0010
0320-3000-0010
0320-3000-0020
0321-0400-0100
0321-0400-0060
Ca ee a ee
TO
(pseu 120)
PE BAG 550°800"0.04t
EPE FOAM-A (VG181)
EPE FOAM-B (VG181)
ACCESSARY BOX (320Wx195Dx60H)
B/C LBL V.SONIC VG181
NF&.ICM CD ROM DATE:990127
CARTON V.SONIC VG181
MANUAL V.SONIC VG181
PORTRAIT CD-ROM
EPE FOAM-HOLDER VG181
DC ADAPTOR 12V/5A
| POWER CORD 6ft 110V UL/CSA AL
POWER CORD 6ft 220V VDE
PC POWER CORD 6ft 220V VDE
S.Cable DVI18-DVI18 2000mm 4P+5C Ivory
S.CABLE 1800mm 15{3R-3R) 3+6C /PC99
MODULE NO. 3180-0072-0331 LCD PANEL ASS'Y | ___ MODULE NO. 3180-0072-0331 LCD PANEL ASSY(V@181) _—|
PART NO DESCRIPTION
1701-0103-4020
1936-1000-0060
1701-0405-4000
1701-0700-0050
FRONT PANEL CAB.(VG181)
V.SONIC LOGO-B (AL. PLATE)
BUTTON (VG181)
LED LENS (VG150
