Service Manual ViewSonic
VG181 July 2000 - Version 1.0

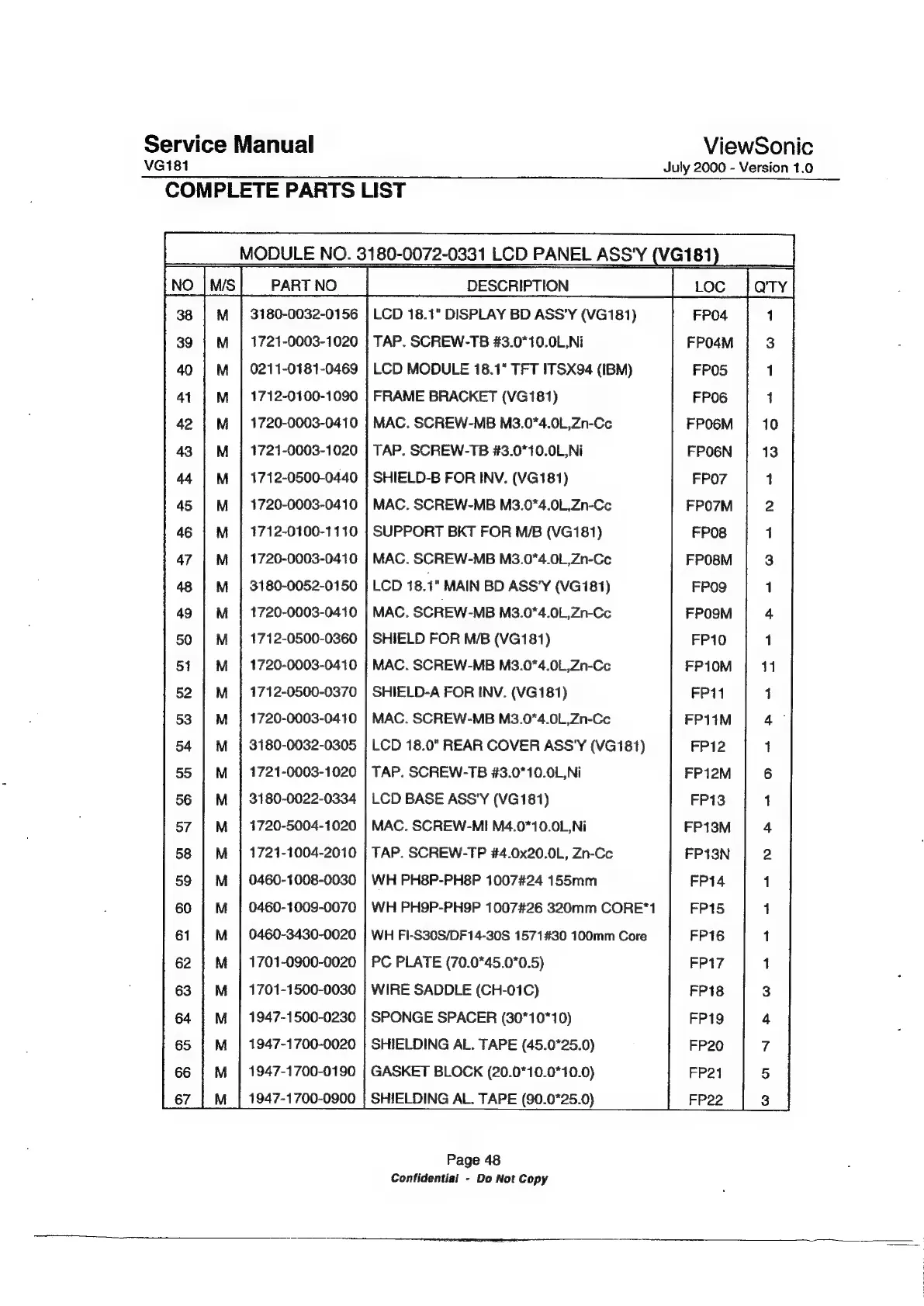

COMPLETE PARTS LIST
MODULE NO. 3180-0072-0331 LCD PANEL ASS'Y (VG181
wo {ws| _rastwo_|___nesowrno __{ too ory
3180-0032-0156 | LCD 18.1" DISPLAY BD ASS'Y (VG181)
1721-0003-1020 | TAP. SCREW-TB #3.0*10.0L,Ni
0211-0181-0469 | LCD MODULE 18.1" TFT ITSX94 (IBM)
1712-0100-1090 | FRAME BRACKET (VG181)
1720-0003-0410 | MAC. SCREW-MB M3.0*4.0L,Zn-Cc
1721-0003-1020 | TAP. SCREW-TB #3.0°10.0L,Ni
1712-0500-0440 | SHIELD-B FOR INV. (VG181)
1720-0003-0410 | MAC. SCREW-MB M3.0*4.0L,Zn-Cc
1712-0100-1110 | SUPPORT BKT FOR M/B (VG181)
1720-0003-0410 | MAC. SCREW-MB M3.0°4.0L,Zn-Cc
3180-0052-0150 | LCD 18.1" MAIN BD ASS'Y (VG181)
1720-0003-0410 | MAC. SCREW-MB M3.0*4.0L,Zn-Cc
1712-0500-0360 | SHIELD FOR M/B (VG181)
1720-0003-0410 | MAC. SCREW-MB M3.0*4.0L,Zn-Cc
1712-0500-0370 | SHIELD-A FOR INV. (VG181)
1720-0003-0410 | MAC. SCREW-MB M3.0*4.0L,Zn-Cc
3180-0032-0305 | LCD 18.0” REAR COVER ASS'Y (VG181)
1721-0003-1020 | TAP. SCREW-TB #3.0°10.0L,Ni
3180-0022-0334 | LCD BASE ASS'Y (VG181)
1720-5004-1020 | MAC. SCREW-MI M4.0*10.0L,Ni
1721-1004-2010 | TAP. SCREW-TP #4.0x20.0L, Zn-Cc
0460-1008-0030 | WH PH8P-PH8P 1007#24 155mm
0460-1009-0070 | WH PH9P-PH9P 1007#26 320mm CORE"
0460-3430-0020 | WH FI-S30S/DF14-30S 1571#30 100mm Core
1701-0900-0020 | PC PLATE (70.0*45.0°0.5)
1701-1500-0030 | WIRE SADDLE (CH-01C)
1947-1500-0230 | SPONGE SPACER (30*10*10)
1947-1700-0020 | SHIELDING AL. TAPE (45.0°25.0)
1947-1700-0190 | GASKET BLOCK (20.0°10.0*10.0)
1947-1700-0900 | SHIELDING AL. TAPE (90.0*25.0)
oa N &F Ww = = &=—- = HH fF aA DM se BP wa
Page 48
Confidential - Do Not Copy
