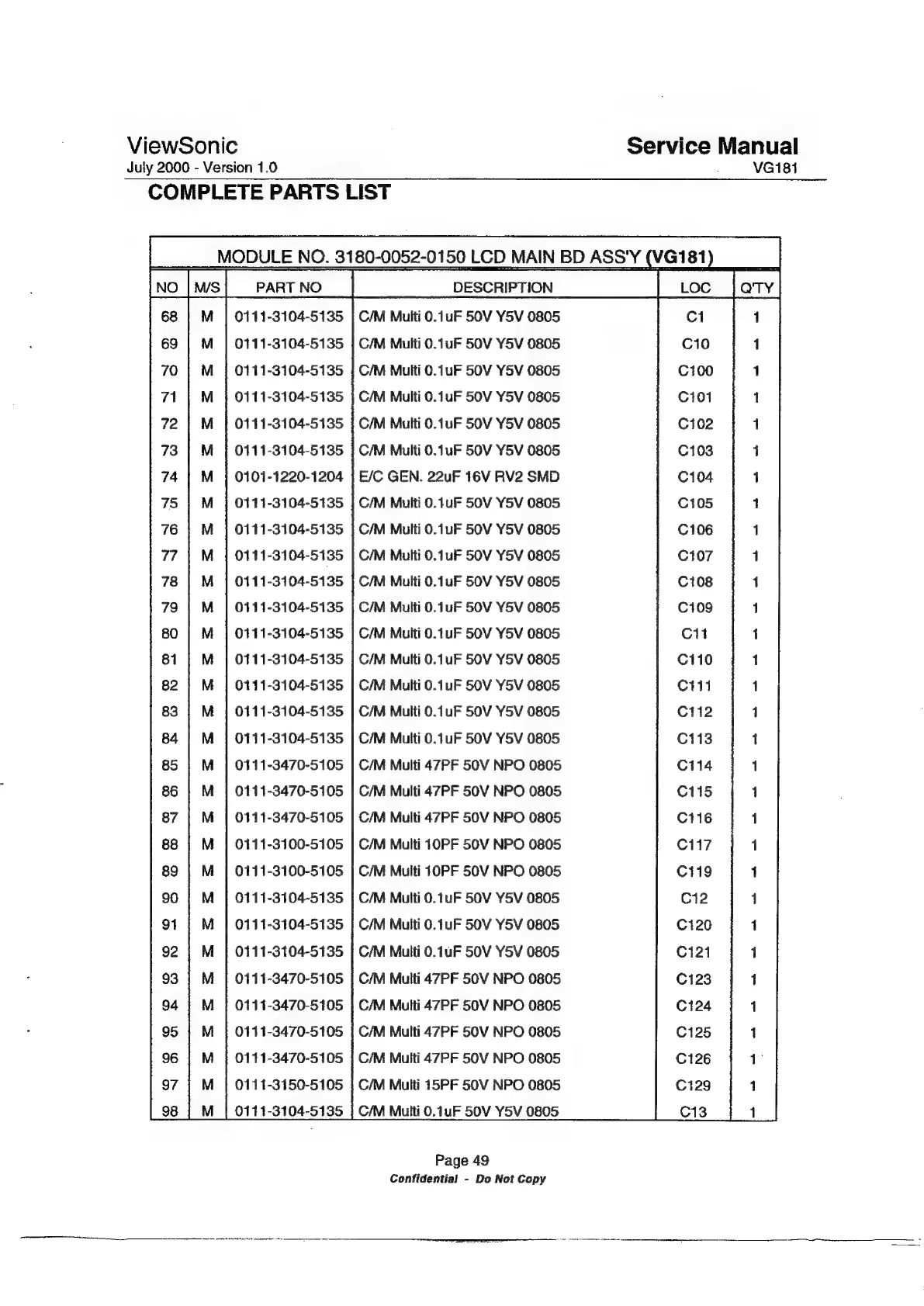

COMPLETE PARTS LIST
MODULE NO. 3180-0052-0150 LCD MAIN BD ASS'Y (VG181
vo |ws|_easrwo_| ____oesonrmon_| 16_far
0111-3104-5135
0111-3104-5135
0111-3104-5135
0111-3104-5135
0111-3104-5135
0111-3104-5135
0101-1220-1204
0111-3104-5135
0111-3104-5135
0111-3104-5135
0111-3104-5135
0411-3104-5135
0111-3104-5135
0111-3104-5135
0111-3104-5135
01411-3104-5135
0111-3104-5135
0111-3470-5105
0111-3470-5105
01411-3470-5105
0111-3100-5105
0111-3100-5105
0111-3104-5135
0111-3104-5135
0111-3104-5135
0111-3470-5105
0111-3470-5105
0111-3470-5105
0111-3470-5105
0111-3150-5105
0111-3104-5135
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
E/C GEN. 22uF 16V RV2 SMD
C/M Multi 0.4uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 47PF 50V NPO 0805
C/M Multi 47PF 50V NPO 0805
C/M Multi 47PF 50V NPO 0805
C/M Multi 10PF 50V NPO 0805
C/M Multi 10PF 50V NPO 0805
C/M Multi 0.1uF 50V Y5SV 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 47PF 50V NPO 0805
C/M Multi 47PF 50V NPO 0805
C/M Multi 47PF 50V NPO 0805
C/M Multi 47PF 50V NPO 0805
C/M Multi 15PF 50V NPO 0805
C/M Multi 0,4uF 50V Y5V 0805
