ViewSonic VG181 - Page 56

Service Manual
VG181

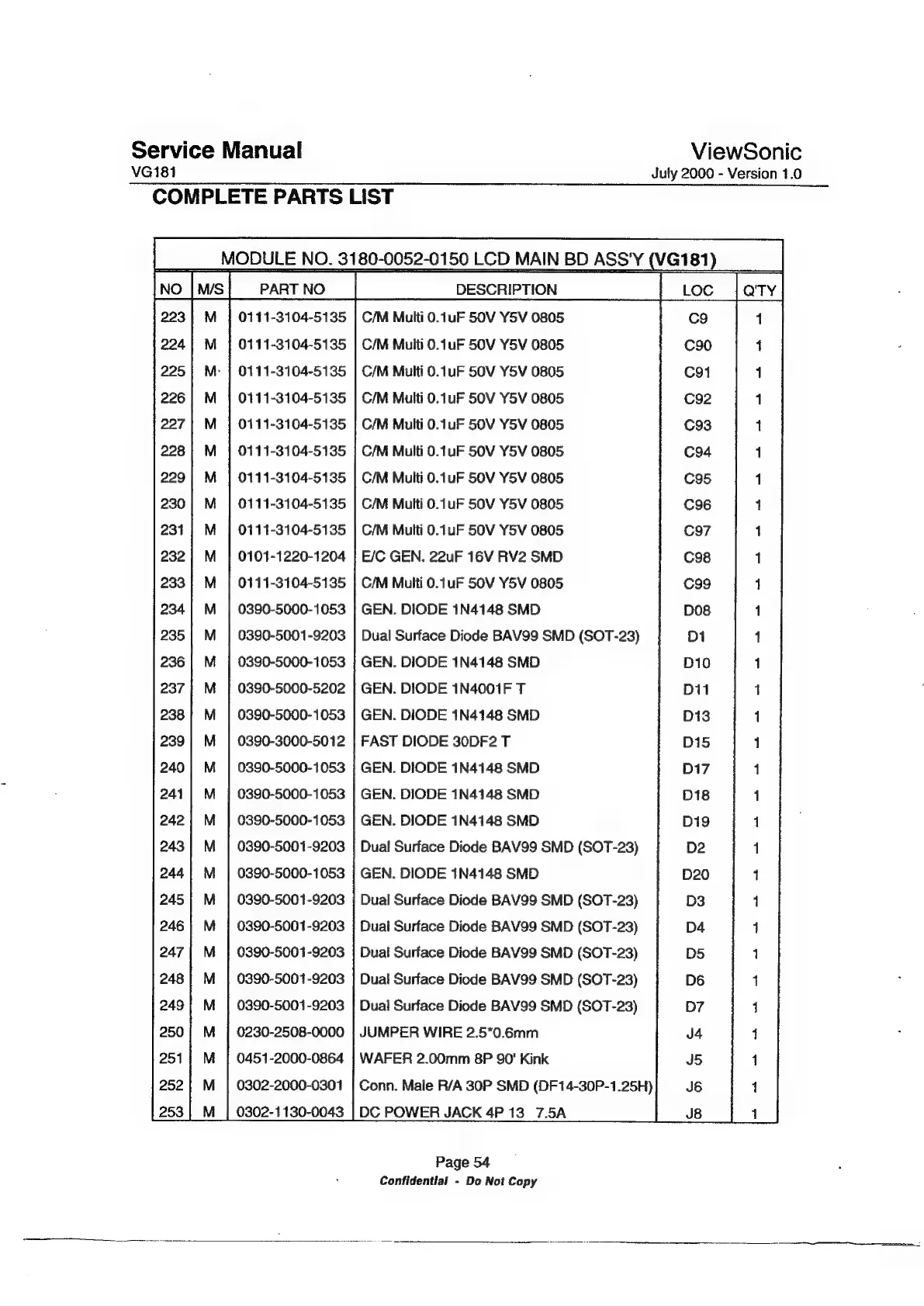

COMPLETE PARTS LIST
No jws|_eara | ____vescrrrnow _|' woo ary
0111-3104-5135
0111-3104-5135
0111-3104-5135
0111-3104-5135
0111-3104-5135
0411-3104-5135
0111-3104-5135
0111-3104-5135
0111-3104-5135
0101-1220-1204
01411-3404-5135
0390-5000-1053
0390-5001 -9203
0390-5000-1053
0390-5000-5202
0390-5000-1053
0390-3000-5012
0390-5000-1053
0390-5000-1053
0390-5000-1053
0390-5001-9203
0390-5000-1053
0390-5001-9203
0390-5001-9203
0390-5001-9203
0390-5001 -9203
0390-5001 -9203
0230-2508-0000
0451-2000-0864
0302-2000-0301
0302-1 130-0043
MODULE NO. 3180-0052-0150 LCD MAIN BD ASS
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
C/M Multi 0.1uF SOV Y5V 0805
C/M Multi 0.1uF 50V Y5V 0805
E/C GEN. 22uF 16V RV2 SMD
C/M Multi 0.1uF 50V Y5V 0805
GEN. DIODE 1N4148 SMD
Dual Surface Diode BAV99 SMD (SOT-23)
GEN. DIODE 1N4148 SMD
GEN. DIODE 1N4001F T
GEN. DIODE 1N4148 SMD
FAST DIODE 30DF2 T
GEN. DIODE 1N4148 SMD
GEN. DIODE 1N4148 SMD
GEN. DIODE 1N4148 SMD
Dual Surface Diode BAV99 SMD (SOT-23)
GEN. DIODE 1N4148 SMD
Dual Surface Diode BAV99 SMD (SOT-23)
Dual Surface Diode BAV99 SMD (SOT-23)
Duat Surface Diode BAV99 SMD (SOT-23)
Dua! Surface Diode BAV99 SMD (SOT-23)
Dual Surface Diode BAV99 SMD (SOT-23)
JUMPER WIRE 2.5*0.6mm
WAFER 2.00mm 8P $0' Kink
Conn. Male R/A 30P SMD (DF14-30P-1.25H)
DC POWER JACK 4P 13 7.5A
Page 54
Confidential - Do Not Copy
ViewSonic
July 2000 - Version 1.0
Y(VG181)
