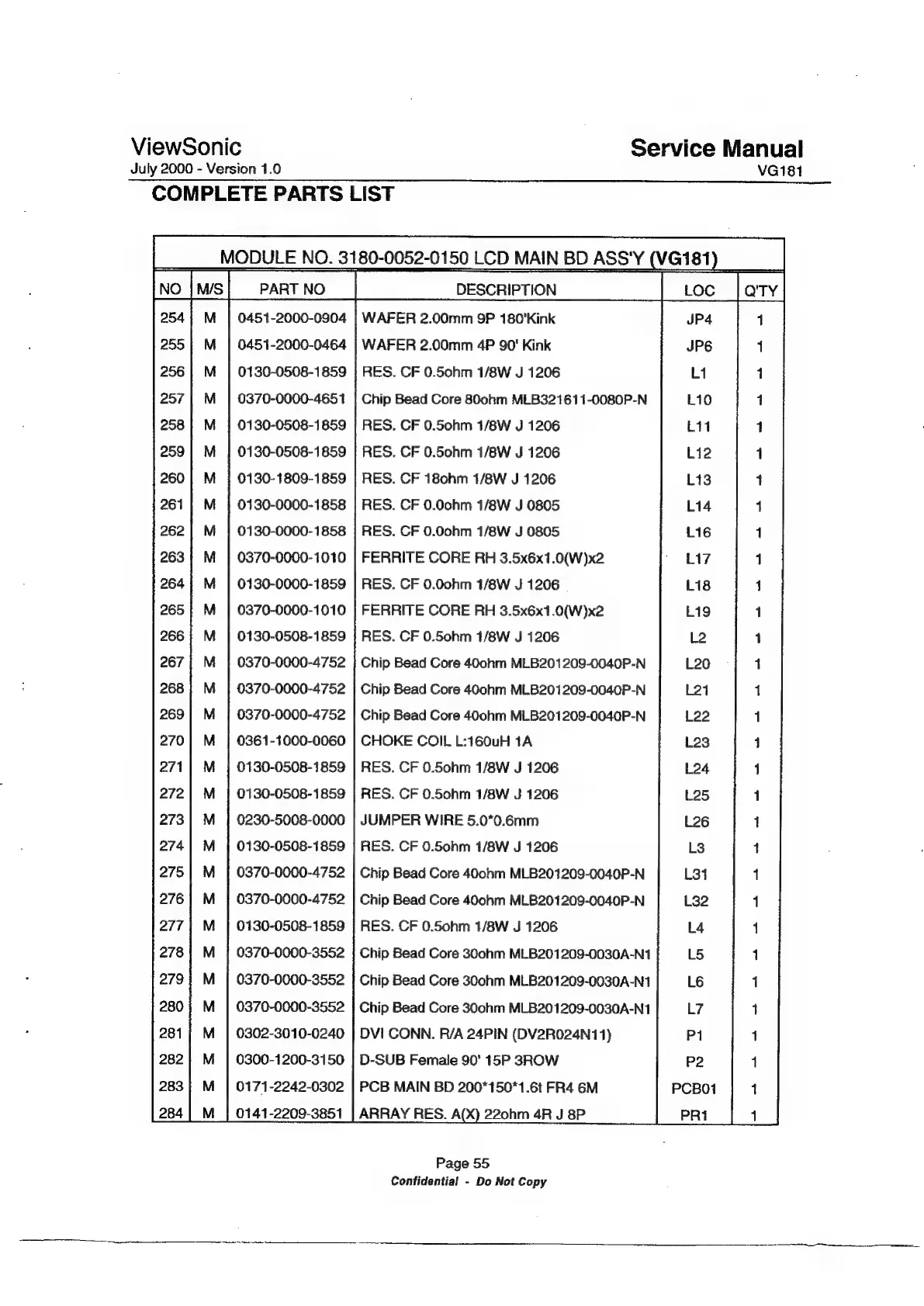

COMPLETE PARTS LIST
MODULE NO. 3180-0052-0150 LCD MAIN BD ASS'Y (VG181)
sol extn | ____ossonenon —_| se Ten
0451-2000-0904 | WAFER 2.00mm 9P 180'Kink
0451-2000-0464 | WAFER 2.00mm 4P 90' Kink
0130-0508-1859 | RES. CF 0.50hm 1/8W J 1206
0370-0000-4651 | Chip Bead Core 800hm MLB32161 1-O080P-N
0130-0508-1859 | RES. CF 0.50hm 1/8W J 1206
0130-0508-1859 | RES. CF 0.50hm 1/8W J 1206
0130-1809-1859 | RES. CF 180hm 1/8W J 1206
0130-0000-1858 | RES. CF 0.0chm 1/8W J 0805
0130-0000-1858 | RES. CF 0.0ohm 1/8W J 0805
0370-0000-1010 | FERRITE CORE RH 3.5x6x1.0(W)x2
0130-0000-1859 | RES. CF 0.00hm 1/8W J 1206
0370-0000-1010 | FERRITE CORE RH 3.5x6x1.0(W)x2
0130-0508-1859 | RES. CF 0.50hm 1/8W J 1206
0370-0000-4752 } Chip Bead Core 400hm MLB201209-0040P-N
0370-0000-4752 | Chip Bead Core 400hm MLB201209-0040P-N
0370-0000-4752 | Chip Bead Core 400hm MLB201209-0040P-N
0361-1000-0060 | CHOKE COIL L:160uH 1A
0130-0508-1859 | RES. CF 0.50hm 1/8W J 1206
0130-0508-1859 | RES. CF 0.50hm 1/8W J 1206
0230-5008-0000 | JUMPER WIRE 5.0*0.6mm
0130-0508-1859 | RES. CF 0.50hm 1/8W J 1206
0370-0000-4752 | Chip Bead Core 400hm MLB201209-0040P-N
0370-0000-4752 | Chip Bead Core 400hm MLB201209-0040P-N
0130-0508-1859 | RES. CF 0.50hm 1/8W J 1206
0370-0000-3552 | Chip Bead Core 300hm MLB201209-0030A-N1
0370-0000-3552 | Chip Bead Core 300hm MLB201209-0030A-N1
0370-0000-3552 | Chip Bead Core 300hm MLB201209-0030A-N1
0302-3010-0240 | DVI CONN. R/A 24PIN (DV2R024N11)
0300-1200-3150 | D-SUB Female 90° 15P 3ROW
0171-2242-0302 | PCB MAIN BD 200*150*1.6t FR4 6M
0141-2209-3851 | ARRAY RES. A(X) 22chm 4R J 8P
