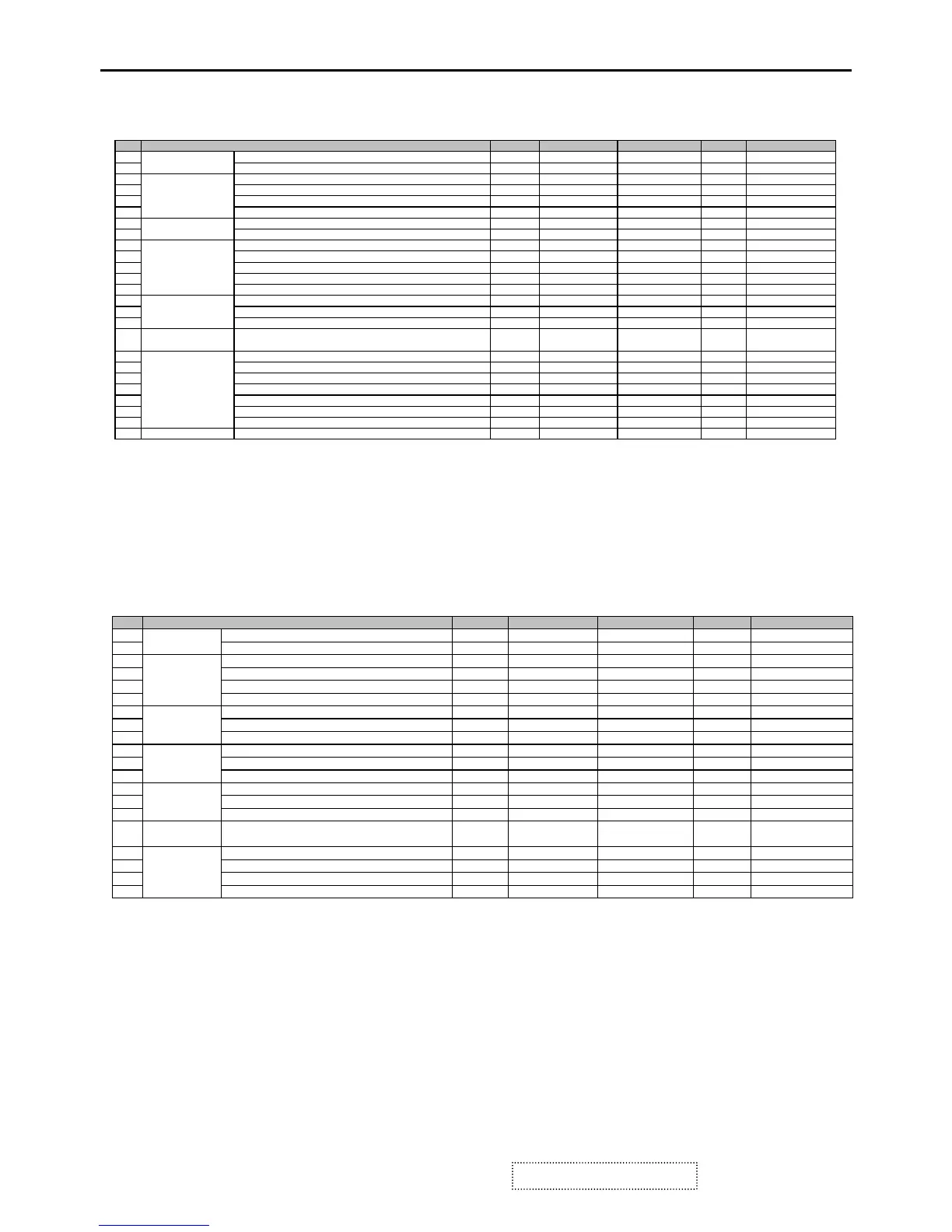

7. Recommended Spare Parts List
Rev: 1a
Serial No. Prefix:QCK
Item ECR/ECN ViewSonic P/N Ref. P/N Location Universal number#
1 AC POWER CORD GERMAN WALL 1.83M A-00006133 2427130047P P951
2 I/O CABLE D15/D15 20276(3+6) 1.83M A-VC-0101-0386 2427501187P P961
3 PC BOARD ASS'Y SMD B-00005311 2200501400P U801
4 PCB ASS'Y BLOCK (MAIN) B-00008018 6201-7998907131
5 PCB ASS'Y BLOCK (CON) B-00008019 6202-7998907131
6 PC BOARD ASS'Y SMD B-00008020 2200501500P U801
7 BEZEL ASS'Y C-00008031 2603307972
8 CABI BACK ASSY C-00008032 2603407675
9 I/O CABLE D15/D15 20276(5.8) 1.83M CB-00005317 2427501196P P961
10 I/O CABLE (DVI) QCODS1641D8D-A 1.8M CB-00005318 2427590004P P971
11 I/O CABLE DVI-D*2 20276(6.0) 1.83M CB-00006182 2427501198P P971
12 FFC CABLE FFC 30P*1.0mm*L180mm (30P*1.0mm*L180mm) CB-00008007 2420318302P P980
13 FFC CABLE FFC 8P*0.3mm*L165mm (8P*0.3mm*L165mm) CB-00008008 2420390003P P981
14 GUARANT CARD (QSG) DC-00005307 2002370009P 6P82
15 CD-OWNER GUIDE CD-DRIVER DDSK DC-00005309 2438570007P 6P81
16 CD-OWNER GUIDE DC-00008034 2438570025P 6P80
17
Electronic
Com
onents:
LCD PANEL E-00008011 2212090200P V901
18 Generic Foam Set P-00001347 30833
19 Generic Box P-00002515 20653
20 CARTON BOX P-00005321 2011091102P 6P01
21 POLYFOAM P-00005322 2012186700P 6P20
22 POLYETHY BAG 160*140MM T=0.5MM LDPE P-00008025 2013054023P 5B03
23 POLYETHY BAG P-00008026 2013054030P 6P60
24 POLYETHY BAG P-00008027 2013054031P 6P83
25
Plastics:
STAND PL-00005315 2028262002P 5B01
Remark 1:
Above listed items are examples, supplier can expand the rows to add more necessary items.
Remark 2:
Documentation:
Packing Material:
All revised RSPLs with newly added items or any change made should be highlighted and correlated with the ECN/ECR approved by ViewSonic Corporation. This is to
eliminate repeated cross checks of each item between this version and prior versions.
RECOMMENDED SPARE PARTS LIST (VP930-3)
Description
ViewSonic Model Number: VS10725
Accessories:
PC Board Assembly:
Cabinets:
Cables:
Serial No. Pre
QCL Rev: 1a
Item ECR/ECN ViewSonic P/N Ref. P/N Location Universal number#
1 AC POWER CORD 1.83M A-00005362 2427130046P P951
2 I/O CABLE D15/D15 20276(3+6) 1.83M A-VC-0101-0386 2427501187P P961
3 PCB (INVERTER) B-00008021 2200501300P U901
4 PCB Power Board B-00005311 2200501400P U801
5 PCB Main Board B-00008018 6201-7998907131
6 PCB Control Board B-00008019 6202-7998907131
7 BEZEL ASS'Y C-00005324 2603307945
8 CABI BACK ASSY C-00005331 2603407672
9 STAND C-00008033 2028262001P 5B01
10 I/O CABLE D15/D15 20276(5.8) 1.83M CB-00005317 2427501196P P961
11 I/O CABLE (DVI) QCODS1641D8D-A 1.8M CB-00005318 2427590004P P971
12 I/O CABLE DVI-D*2 20276(6.0) 1.83M CB-00006182 2427501198P P971
13 GUARANT CARD QSG DC-00005307 2002370009P 6P82
14 CD-OWNER GUIDE CD-DRIVER DC-00005309 2438570007P 6P81
15 CD-OWNER GUIDE DC-00008034 2438570025P 6P80
16
Electronic
Com
onents:
LCD PANEL E-00008011 2212090200P V901
17 POLYFOAM P-00005322 2012186700P 6P20
18 Craft Box P-00005325 2011091103P 6P01
19 Generic Box P-00002515 20653
20 POLYETHY BAG P-00008026 2013054030P 6P60
Remark 1:
Above listed items are examples, supplier can expand the rows to add more necessary items.
Remark 2:
ViewSonic Model Number: VS10725
All revised RSPLs with newly added items or any change made should be highlighted and correlated with the ECN/ECR approved by ViewSonic
Corporation. This is to eliminate repeated cross checks of each item between this version and prior versions.
Packing
Material:
Documentation:
RECOMMENDED SPARE PARTS LIST (VP930b-3)
Description
Accessories:
PC Board
Assembly:
Cabinets:
Cables:
