Item Description
14 TV Input Jack
Connect this jack to your Cable or VHF/UHF antenna.
15 Headphone Jack
Connect to your headphones. By connecting the headphones, you can
listen to the sound from the TV on headphones.
＊
If you connect the headphones, the TV speakers will be muted.
AV connection
Connect the composite video and audio input jacks to the corresponding output jacks of your
A/V device.
--- VIDEO: Composite Video input [8]
--- AUDIO: AV/ S-Video signal Audio input [9]
S-Video connection
Connect the S-Video and audio input jacks to the corresponding output jacks of your VCR or
other video device that has S-Video. S-Video provides better picture quality than composite
video connection. If both are connected, S-Video signal has priority.
--- VIDEO: S-Video input [7]
--- AUDIO: AV/ S-Video signal Audio input [9]
Component (YPbPr) connection
YPbPr provides better picture quality than the S-Video or the AV connection.
＊For YPbPr connection, connect the component video (YPbPr) and audio jacks to the
corresponding output jacks of your A/V device.
--- VIDEO: YPbPr signal input [11]
--- AUDIO: YPbPr signal audio input [10]
HDMI connection
HDMI (High-Defi nition Multimedia Interface) is a licensable audio/video connector interface
for transmitting uncompressed, encrypted digital streams between this TV and any HDMI-
equipped audio/video equipment.
＊Be sure to use only an HDMI cable that bears the HDMI logo.
＊If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI
Input Terminal (with DVI-to-HDMI cable or adapter), and connect the Audio cable to the
Audio In jacks.

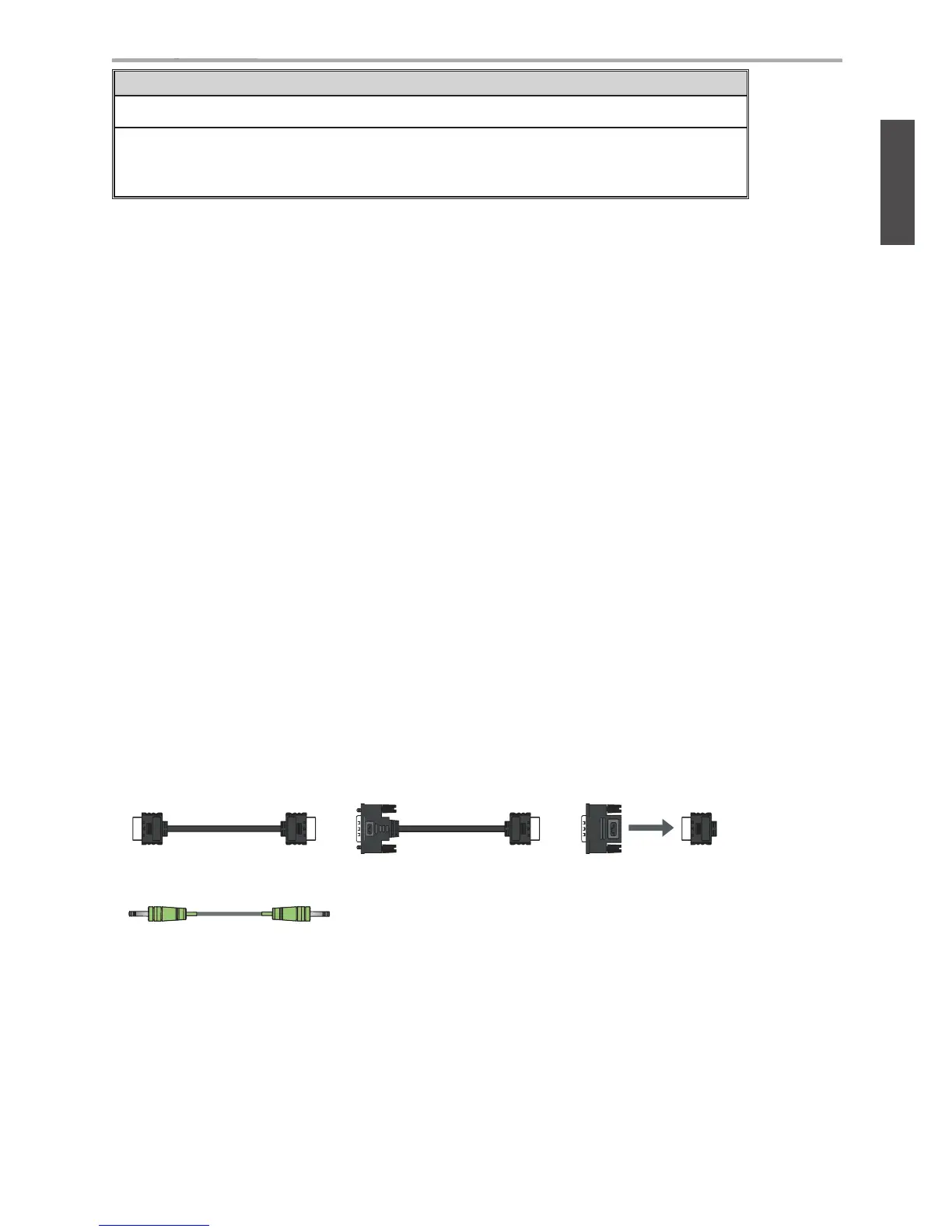

DVI-to-HDMI cableHDMI cable DVI-to-HDMI adapter
Audio cable
