USB 3.0 connector (20-1 pin USB3_12, USB3_910)
These connectors allow you to connect a USB 3.0 module for additional USB 3.0 front or rear panel ports.
With an installed USB 3.0 module, you can enjoy all the benefits of USB 3.0 including faster data transfer
speeds of up to 5Gbps, faster charging time for USB-chargeable devices, optimized power efficiency, and
backward compatibility with USB 2.0.

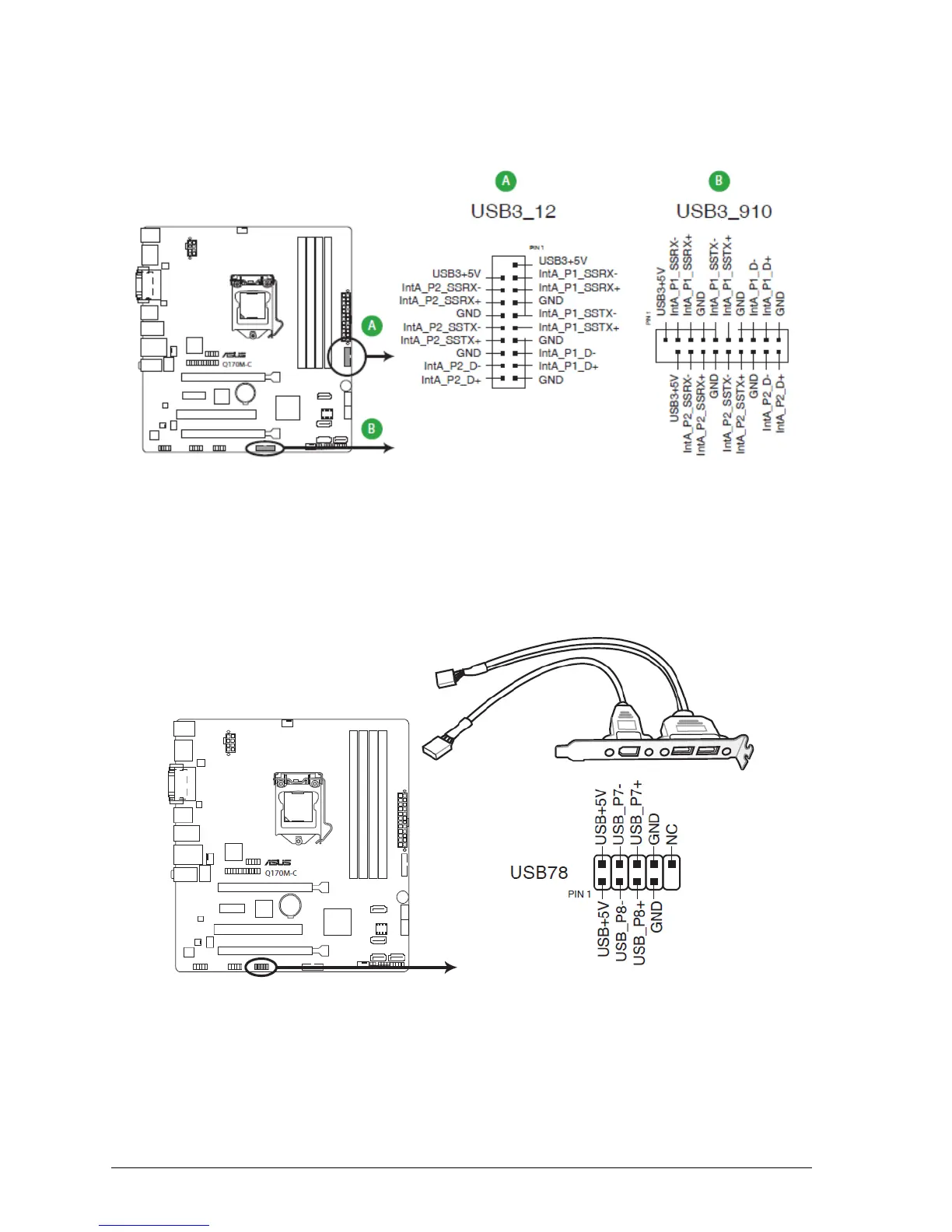

Figure 18: Front USB3.0 connectors
USB 2.0 connectors (10-1 pin USB78)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then
install the module to a slot opening at the back of the system chassis. These USB connectors comply with
USB 2.0 specifications and supports up to 480Mbps connection speed.
Figure 19: Front USB2.0 connector
