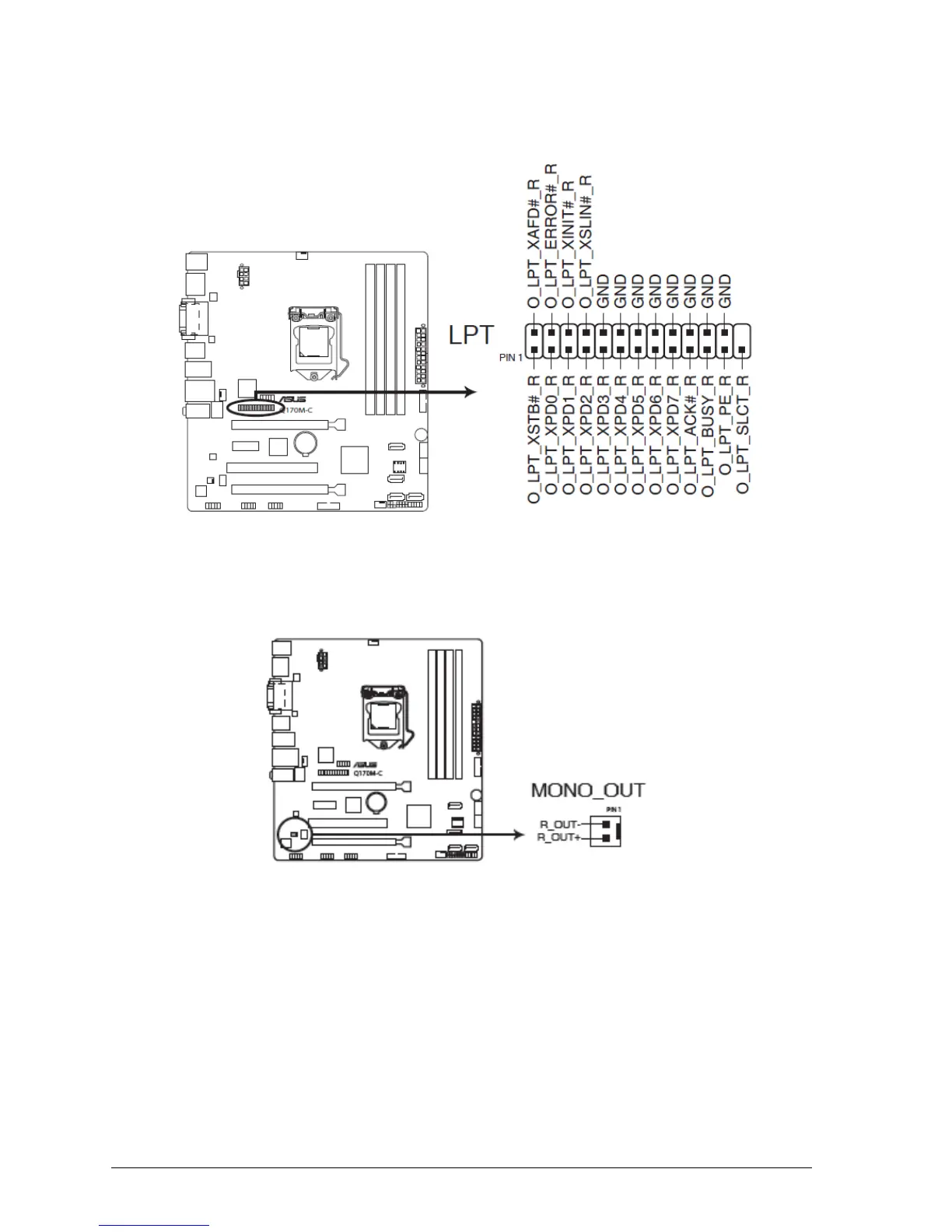

LPT connector (26-1 pin LPT)
The LPT (Line Printing Terminal) connector supports devices such as a printer. LPT standardizes as IEEE
1284, which is the parallel port interface on IBM PC-compatible computers.
Figure 20: LPT connector
Mono out header (2-pin MONO_OUT)
This internal mono out header allows connection to an internal, low power speaker for basic system sound
capability. The subsystem is capable of driving a speaker load of 4 Ohms at 2 Watts (rms).
Figure 21: MONO_OUT connector
