GATE OPERATOR INSTALLATION
! TECHNICAL TIP: Before completing the installation procedure;
• Openandclosethegatemanually,makingsurethereissufcientspacebetweenthegate
and adjacent walls.
• Check that the wheels are turning freely on the track and there are no restrictions while
pushing the gate to the open and closed positions.
• Conrmthatthereisadequatespacingfortheguiderollersandthatthereareno
restrictions throughout the travel of the gate.

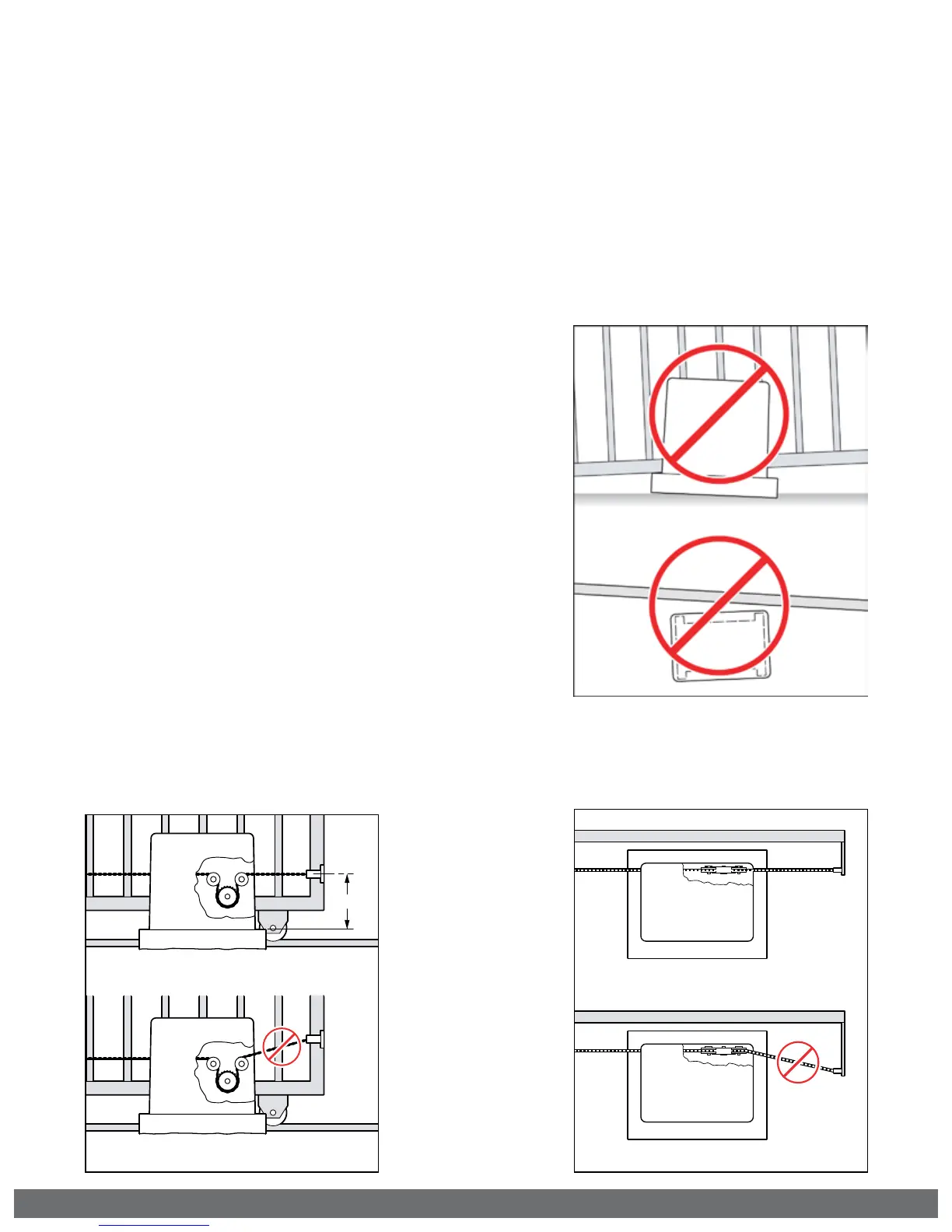

STEP 1
Before securing the chassis to the
concrete pad or posts, make sure the
gate and operator are LEVEL and
PARALLEL. Minimum distance between
the operator and gate is 3”.
STEP 2
Chain Installation: Before welding the
provided chain brackets, make sure the
chain will be in a straight line with, and at
the same height as, the chain leaving the
gate operator rollers.
14.375"
