D. Playing tones/messages over certain zones or zone combinations when used with a Viking Model ZPI-4

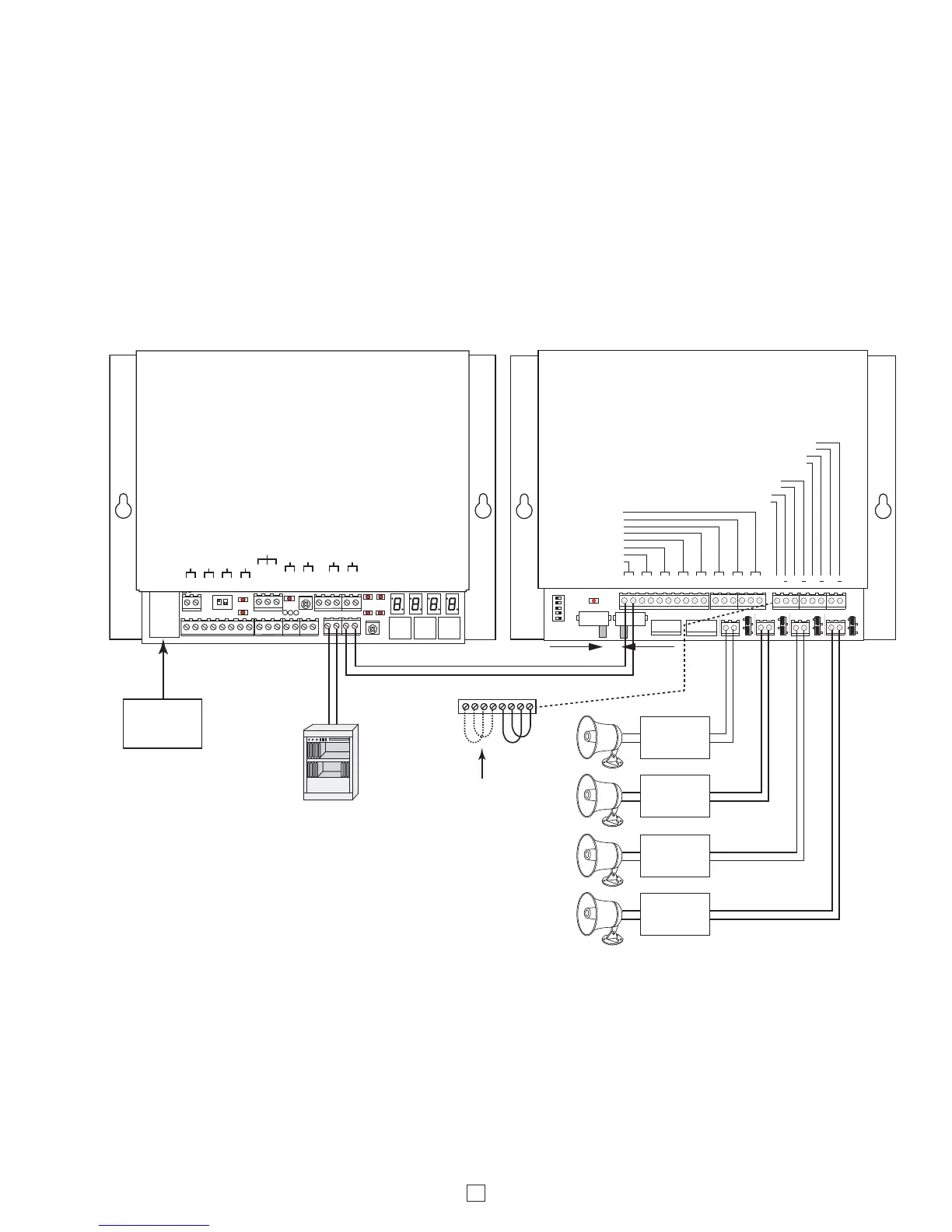

1. Diagram 1 - Page Port
©
MODEL ZPI-4
VIKING
ELECTRONICS
HUDSON, WI 54016
FOUR ZONE PAGING INTERFACE
OPTIONAL MUSIC AMP
OUT TO AMP'S (+) INPUT
OUT TO AMP'S (-) INPUT
IN FROM AMP'S (+) OUTPUT
IN FROM AMP'S (-) OUTPUT
TELCO IN
TELCO OUT
MUSIC IN
MUSIC OUT
INPUT CONTACTS
OUTPUT CONTACTS
NIGHT RING
NIGHT CONTACTS
POWER
13.8 VAC
PWR
NIGHT
WARBLE
VOLUME
PAGE
ALERT
VOLUME
PAGE
VOLUME
MUSIC
VOLUME
++++
12345678910111213141516
OPTIONAL PAGING AMP
OUT TO AMP'S (+) INPUT
OUT TO AMP'S (-) INPUT
IN FROM AMP'S (+) OUTPUT
IN FROM AMP'S (-) OUTPUT
VIKING
Paging
Amplifier
(not included)
Paging
Amplifier
(not included)
1 2 3 4 5 6 7 8
Paging
Amplifier
Jumpers
Optional
Background
Music Amplifier
Jumpers
VIKING
©
MODEL CTG-2A
VIKING
ELECTRONICS
HUDSON, WI 54016
NETWORKED CLOCK CONTROLLED
TONE / MESSAGE GENERATOR
PWR 13.8 VAC
N.C.
COM
N.0.
1 2 3 4 5 6 9 1011 12 13
PAGE TRIGGER CONTACTS
PAGE TRIGGER 12VDC OUTPUT
NETWORK
TRIGGER INPUT 1 TRIGGER INPUT 2
TRIGGER INPUT 3
P.M.
14 15
SPEAKER OUTPUT
18 19
AUDIO OUTPUT
16 17
-+-+ -+-+
AUDIO INPUT
7 8
TRIGGER INPUT 4
Paging Port
of PABX/KSU
NETWORK
Paging
Amplifier
(not included)
Paging
Amplifier
(not included)
The CTG-2A can play wave files to send timed tones/messages to individual zones, a combination of zones or all zones.
You simply add a brief touch tone before each tone/message using Audacity or similar audio editing software. See the
“Creating Touch Tone Wave Files” application note, DOD# 898. Audacity can generate the required touch tones.
The CTG-2A’s connection to the ZPI-4 depends on the source of the voice paging. If the source of voice paging is a
paging port, the CTG-2A is wired as shown in Diagram 1. If paging from an unused trunk port, the CTG-2A is wired as
shown in Diagram 2. If paging from an analog extension, the two units are not directly connected together. A second
analog extension can be connected to the CTG-2A’s “telco page” screw terminals. The CTG-2A would call the ZPI-4’s
extension, pause and then dial a touch tone to select the zone or zone combination required (see section C. Connecting
the CTG-2A through a PABX / Dial Access Paging System for more details).
