Call
VIKING
©

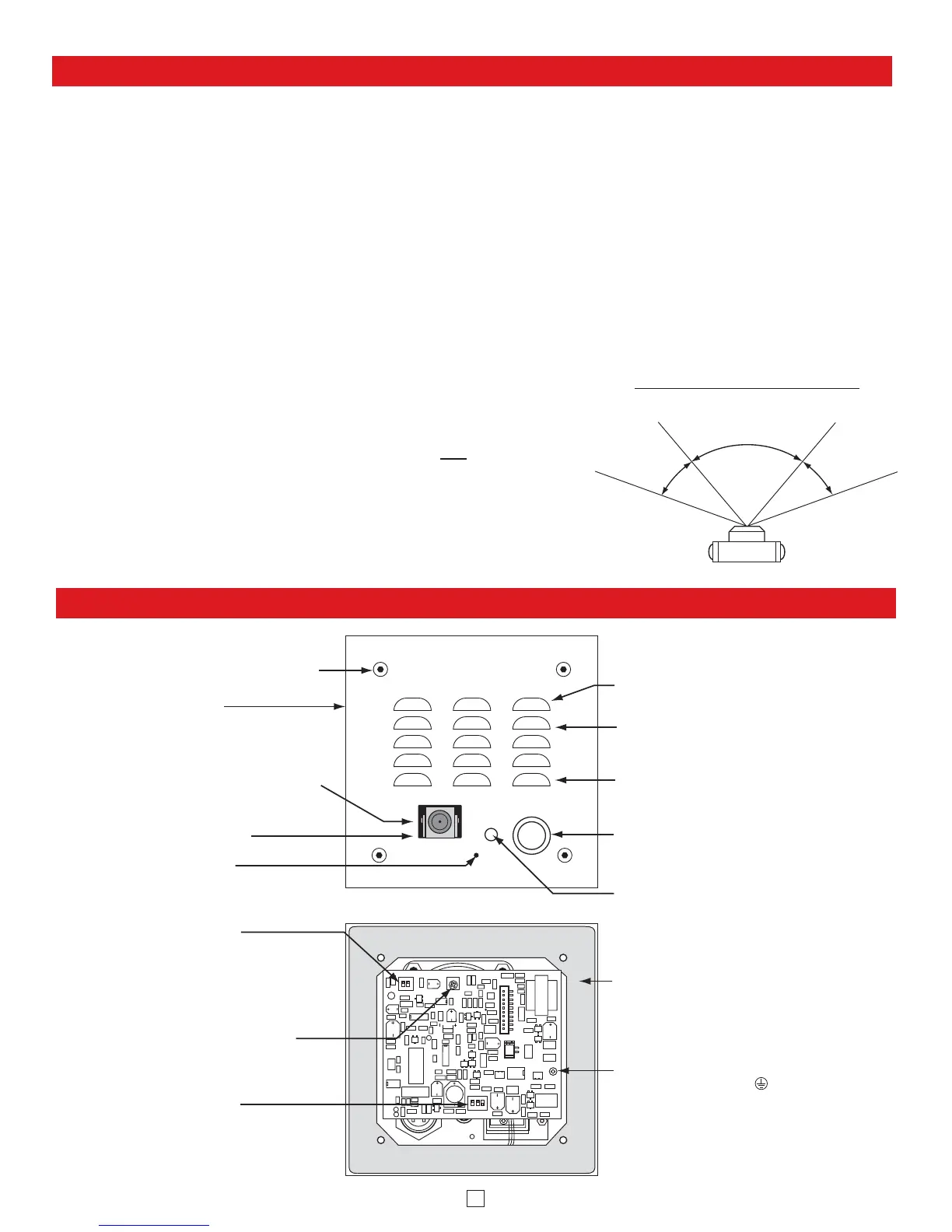

Push Button Switch: Push to initiate call,
push again to disconnect. Solid 316 stainless
steel internally sealed per IP67.
Color Video Camera: Wide operating
temperature range of -30°F to 150°F, NTSC
composite video output with 420 lines of
resolution, 70° wide viewing angle lens, tilt and
swivel adjustments for aiming towards visitors.
Speaker Screen: Stainless steel speaker
screen with 0.018" diameter holes to prevent
punctures from paperclips, etc.
Faceplate: 14 gauge Marine grade 316
stainless steel faceplate.
Protective Camera Window: Impact resistant
polycarbonate lens with scratch resistant
coating and water-tight gasket.
Speaker: Mylar speaker with rubber gasket to
maintain water-tight seal and eliminate water
deterioration.
Condensation Drain Hole
Mounting Screws: (4) 6-32 x 3/4" Marine
grade 316 stainless steel, flat head,
T-10
Torx Security Screws and Drive Bit (included)
LED: Lights blue for "In-Use" indication.
Microphone: Omni-directional microphone
with protective water-resistant cloth.
1
2
ON
1
3
2
ON
1
2
ON
Faceplate Gasket: 1/8" thick closed cell PVC
to provide a water-tight seal.
Earth Ground: To increase surge protection,
loosen the screw labeled (as shown) and
fasten a wire with ring terminal (included) from
the mounting screw to Earth Ground (grounding
rod, water pipe, etc.)
Speaker Volume
DIP Switches (see page 7):
1: Push Button Feature (connect / disconnect)
2: Auto Answer Feature (on/off)
3: Programming Switch (normal/programming)
DIP Switches (see page 7):
1: Normal Audio Detection
2: Increased Audio Detection
Specifications
Camera Specifications
Power: 6-22V DC 150mA (12V DC UL Listed adapter included)
Image Sensor: 1/4” color CMOS
Video Output: 1 VP-P composite, NTSC, 75 ohms
Resolution: 420 lines (640 x 480 @ 30fps / 307,200 pixels)
Sensitivity: 0.025 LUX (50 IRE) F 1.2 3200K
Lens: 2.1mm, conical pinhole
FOV (Field of View): 80° Horizontal, 60° Vertical, 100° Diagonal
Tilt/Swivel Adjustment: Vertical +/- 20°, horizontal +/- 30° (see Diagram A)
IR Compatibility: This camera is equipped with an OLP (Optical Low Pass) filter to maintain
correct video color in outside applications. The standard camera is NOT
compatible with IR
illuminators. If IR illumination is required, you will need to replace the existing camera with a
Viking model VCAM-1IR. For more information, see DOD# 190.
Maximum Wire Run Length: 1000 ft with *RG59/RG6 for video and CAT5 for power (1 pair)
and entry phone audio (1 pair). 150 ft with CAT5E for video, power and entry phone audio (longer
video runs are possible by using video balun transceivers, see Installation C, 2, page 5).
* Note: RG59 or RG6 with solid center conductor and 95% bare copper braid shield.
Entry Phone Specifications
Power: Telephone line powered. Minimum 24V DC talk battery voltage, with a
minimum loop current of 20mA loop. Loop current may be boosted on low current
lines with a Viking Model TBB-1B talk battery booster (DOD# 632).
Dimensions: Overall: 127mm x 127mm x 57mm (5” x 5” x 2.25”), Plastic
electrical box: 102mm x 102mm x 54mm (4” x 4” x 2.12”)
Speaker Volume: Approximately 70 db maximum @1m
Ring Voltage: 25V AC RMS minimum (for auto answer)
CPC Disconnect Time: 500ms minimum
REN #: 0.5 A
Entry Phone / Camera Specifications
Humidity: Standard model: 5% to 95% non-condensing, EWP
model: Up to 100%
Shipping Weight: 1.6 kg (3.5 lbs)
Connections: (5) gel-filled butt connectors (3M Scotchlok UR2)
Recommended Surface Mount Box: Viking model VE-5x5, see
DOD# 424 for more information.
80° Lens FOV
Rotate
Left 30°
Rotate
Right 30°
Camera Lens
Diagram A
Camera Horizontal Field of View:
