Viking FGNI515 - Drain;Electrical Locations; Air Flow

8
Air
intake
Warm
air out
2-3/4”
(7.0 cm)
5-1/8”
(13.0 cm)
1/4” (0.6 cm)
O.D. Copper Water
Inlet Compression
Fitting Provided
2-1/2”
(6.4 cm)
7-1/2”
(19.1 cm)
11-5/8”
(29.5 cm)
115V
Power Cord
3-1/4”
(8.3 cm)
Drain Access - Flexible Tubing
3/8” (.95 cm) I.D. Pump Model (included)
5/8” (1.6 cm) I.D. Gravity Model (not included)

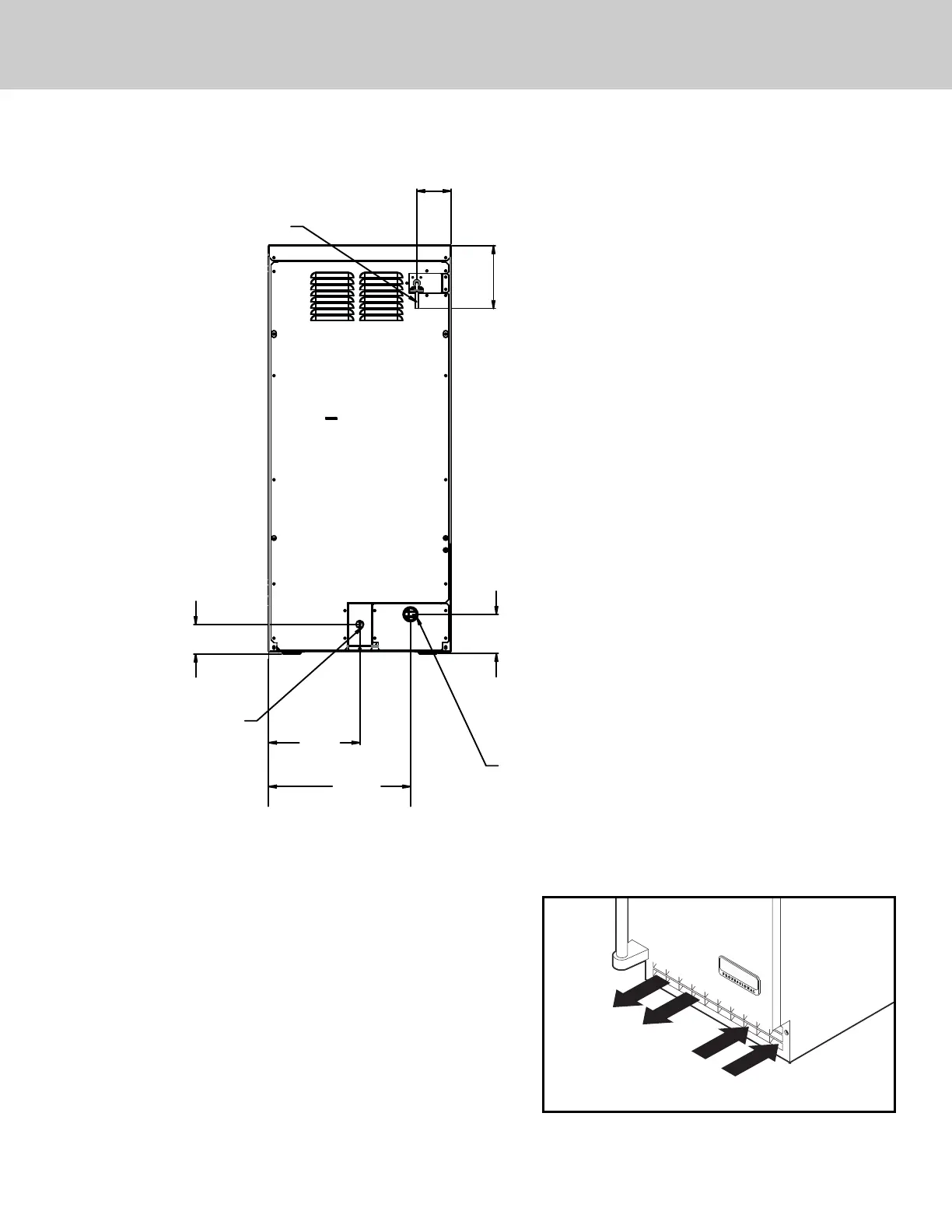

Drain / Electrical Location
AIR FLOW
The machine takes in room temperature air at the lower right
front and forces warm air out the lower left front. Restricting the
airflow will adversely affect the ability of the ice machine to
make ice.
