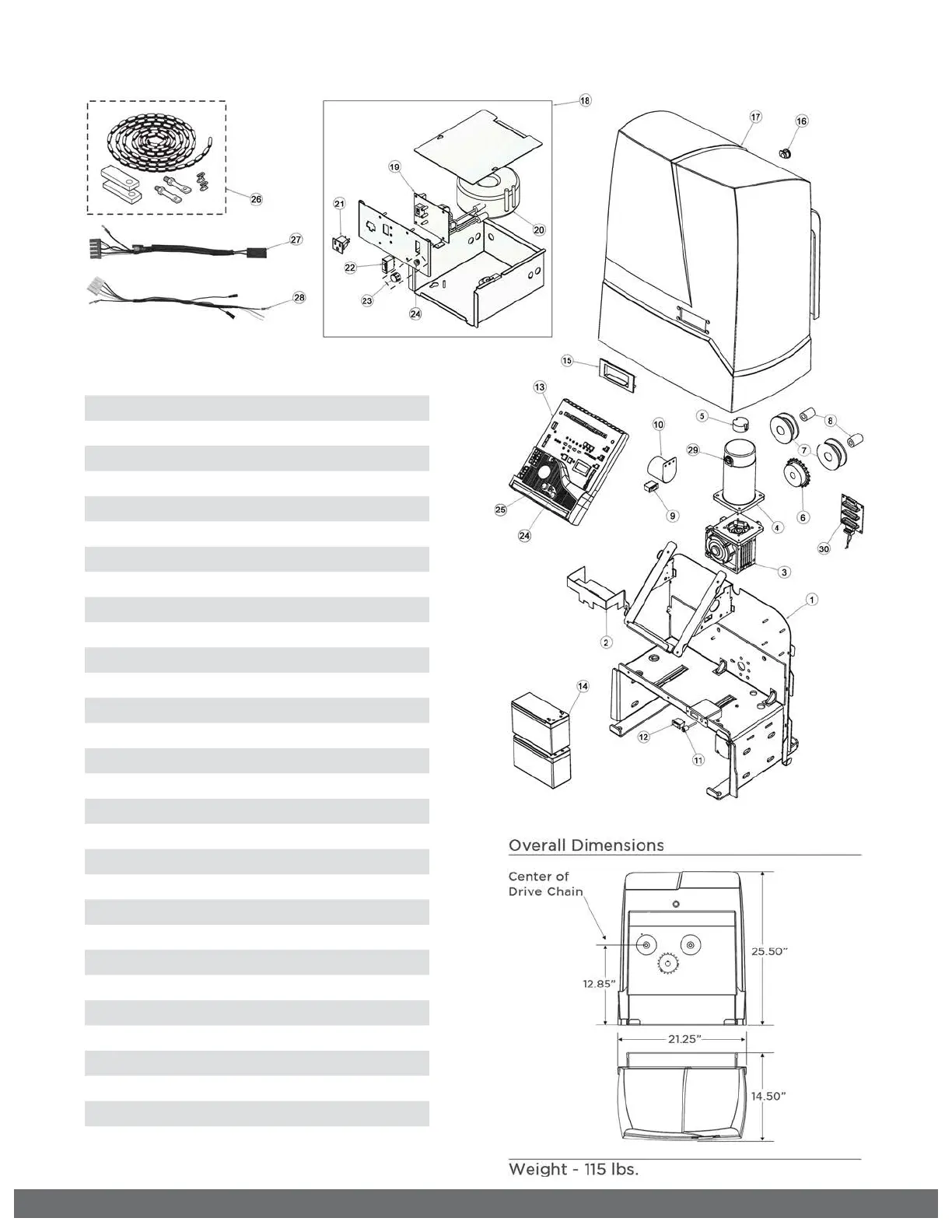

PARTS DIAGRAM:
Item Description Part No.
1 Chassis VNXL3CH
2 Chassis Battery Bracket VNXCHBBRK
3 Gear Box VNXL3GB
4 Motor VNXH10MO
5 Electronic Positioning Sensor (EPS) VNXL3EPS
6 40B17 Sprocket VAL3SP17
7 Idler Pulley DSIP10
8 Idler Bushing (w/hardware) DSIB10
9 Battery Switch DUMRS20
10 Alarm DUAL10
11 Alarm Reset Switch VNXDUARS
12 Manual Release Switch DUMRS20
13 Control Board VFLEXPCB-H10
14 Battery DUBA12
15 Access Door VNXAD
16 Key and Lock VNXSLCL
17 Operator Cover VNXCV
18 Modular Power Box Assembly VNXMPB
19 EMI Board VNXDUEMI
20 Toroid Transformer - 15 amp DUTT15
21 120V Receptacle DUOL120
22 120VAC Power Switch DUMRS10
23 EMI Fuse Holder & Harness VNXEFHH
24 Fuse - 4 amp VNXF4A
25 Fuse - 20 amp VNXF20A
26 25’ #40 Chain Kit, Nickle Coated VAL3CKN
27 Motor Harness VNXH10MH
28 Power Harness VNXL3PH
29 Brush Kit VAMBK
30 Loop Rack VA-LR
