Cabinet Information (Professional)
19
Top View
Top View
Door
Wall
1–13/16”
(4.6 cm)
Space if 24”
standard
cabinet
depth is
used
3/4”
(1.9 cm)
Full End
Panel
24”
(61.0 cm)
Standard
Cabinet
Depth
2–1/2”
(6.4 cm) Offset
5/16”
(0.8 cm)
1–13/16”
(4.6 cm)
Space if 24”
standard
cabinet
depth is
used
Door
24”
(61.0 cm)
Standard
Cabinet
Depth
Wall
3/4”
(1.9 cm)
Full End
Panel
2–1/2”
(6.4 cm) Offset
Partial Overlay
Cabinet Door
Cabinet Information (Professional)
18

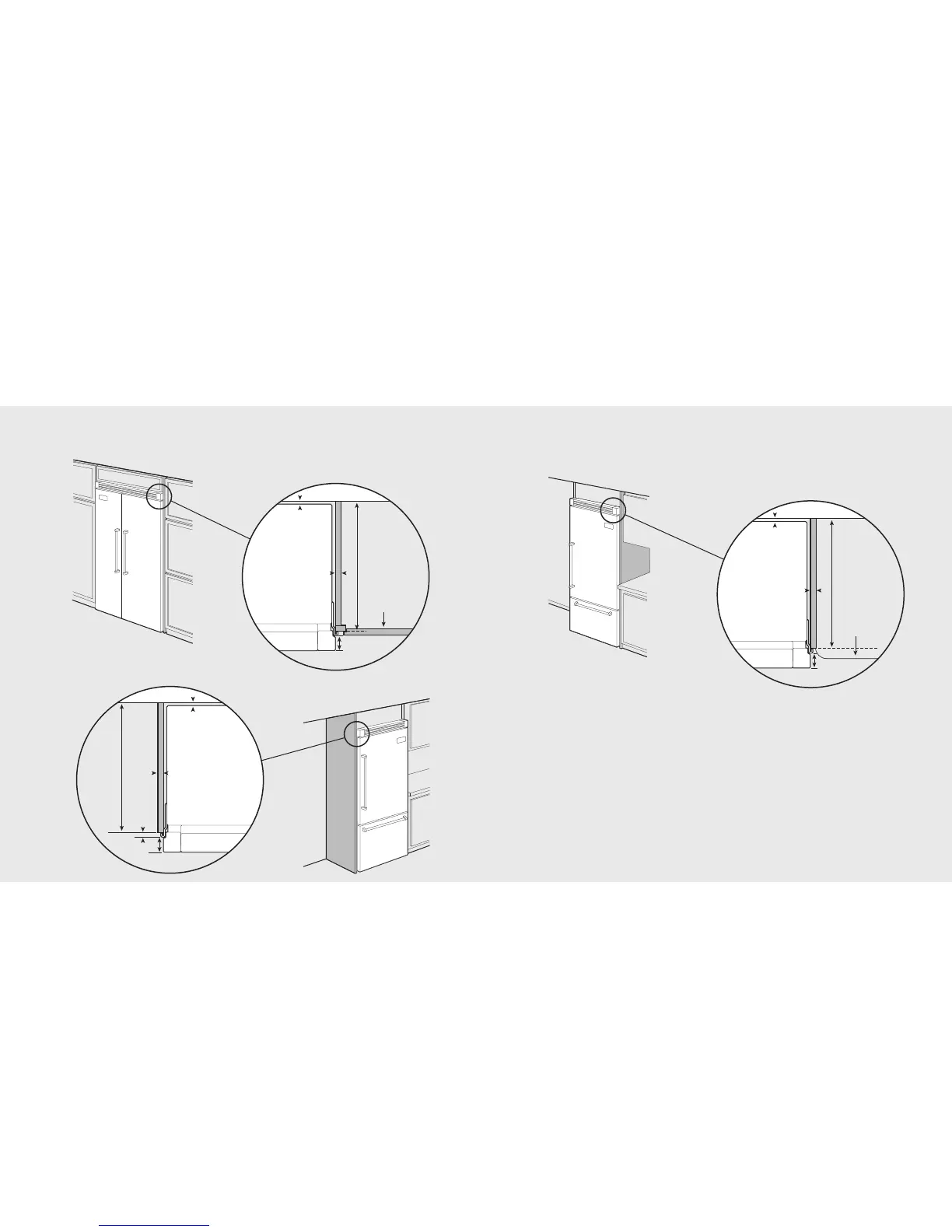

Professional models fit “semi-flush” in standard 24” (61.0 cm) deep cabinet openings. The door
face protrudes 2-1/2” (6.4 cm) from the cabinet face. The handle protrudes an additional
2
-1/2” (6.4 cm) into the room.
Professional models fit “semi-flush” in standard 24” (61.0 cm) deep cabinet openings. The door
face protrudes 2-1/2” (6.4 cm) from the cabinet face. The handles protrude an additional
2-1/2” (6.4 cm) into the room.
