Viking VGR30 - Control Panel Removal; Landing Ledge Removal

24

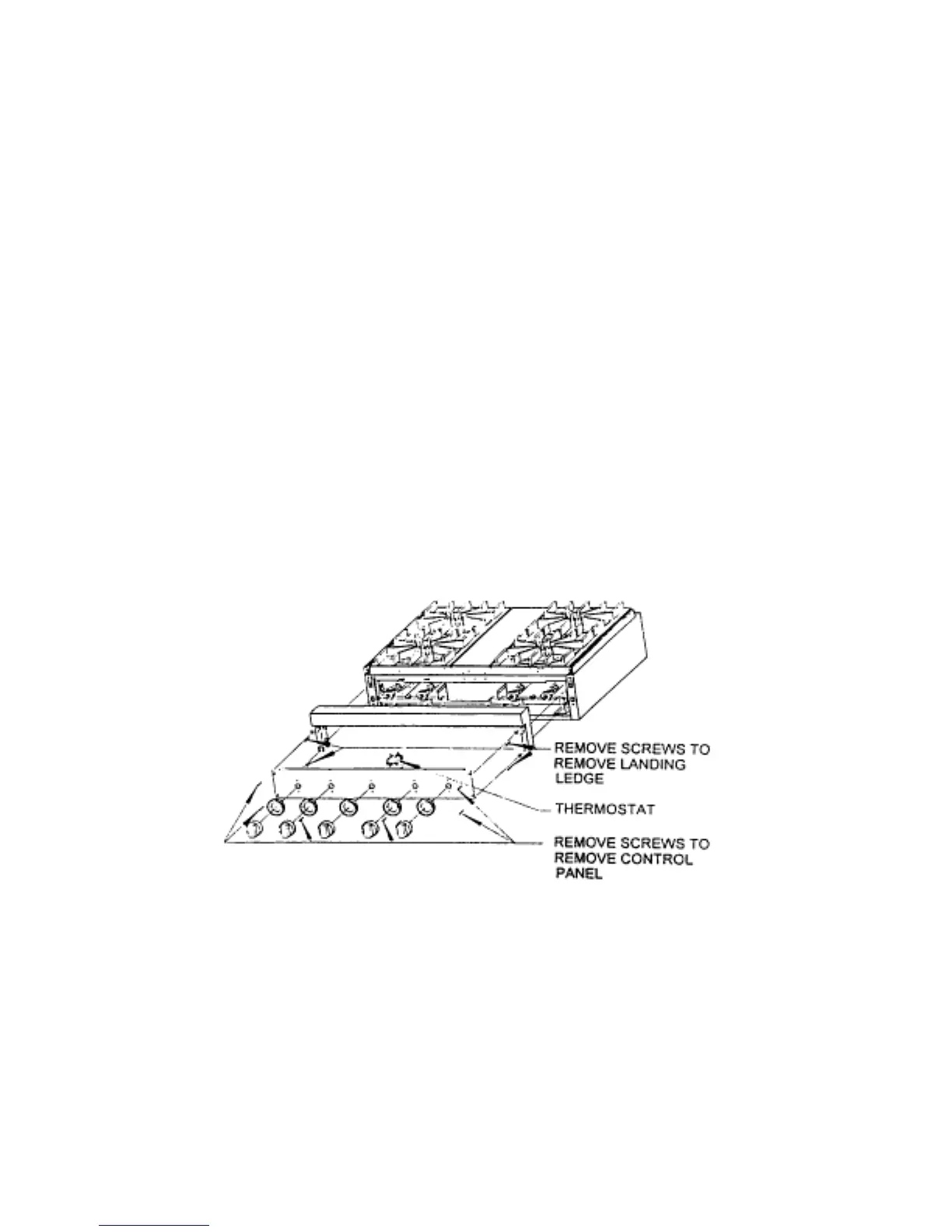

CONTROL PANEL and LANDING LEDGE REMOVAL
CONTROL PANEL REMOVAL
1. Shut off power to the unit.
2. Remove all top burner and grill knobs.
3. Remove lower bezel screw from the second burner
control from each end of the control panel.
(Remove lower bezel screw from grill control on
grill models.)
4. Remove two decorative screws at both ends of the
control panel.
5. It is not necessary to remove bezels.
LANDING LEDGE REMOVAL
1. Shut off power to the unit.
2, remove the control panel. (See control panel
removal.)
3. Remove grates, burner bowls and grate supports.
4. Remove griddle and grill grates and grate supports.
5. Remove the screws along the back of the landing
ledge.
6. Remove the two (2) screws at each end of the front
of the landing ledge.
7. Remove the landing ledge.
