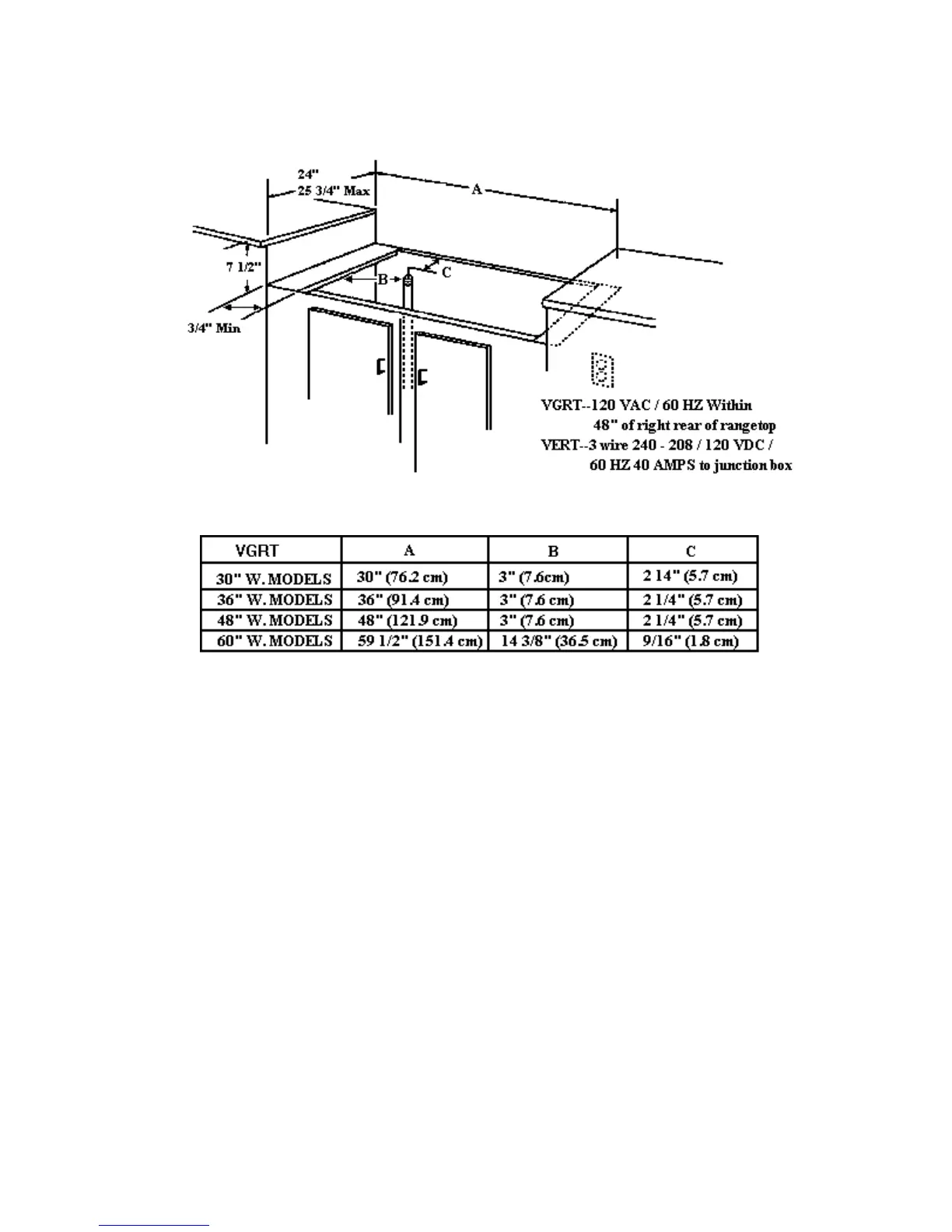

RANGETOP CUTOUT and SPECIFICATIONS
1. Gas Line Requirements:
a. Gas pipe size should be 3/4" (½" inside diameter)
b. Gas pipe should be 3" or less from floor and 6" from left to center of unit to allow for the
flex line.
i.e. 30" range 6"-15" from left 48" range 6"-24" from left
36" range 6"-15" from left 60" range 6"-30" from left
If it is higher than 3" from the floor, the range will not fit flush against the wall and
The shutoff valve will not be accessible.
2. Electrical Requirements: Gas ranges, gas rangetops, and Gas cooktops require a 120 volt
electrical outlet (GFI ground fault outlet not recommended).
a. 3" or less from the floor and 6" from the right to center of the unit.
i.e. 30" range 6"-15" from right 48" range 6"-24" from right
36" range 6"-18" from right 60" range 6"-30" from right
