Installation

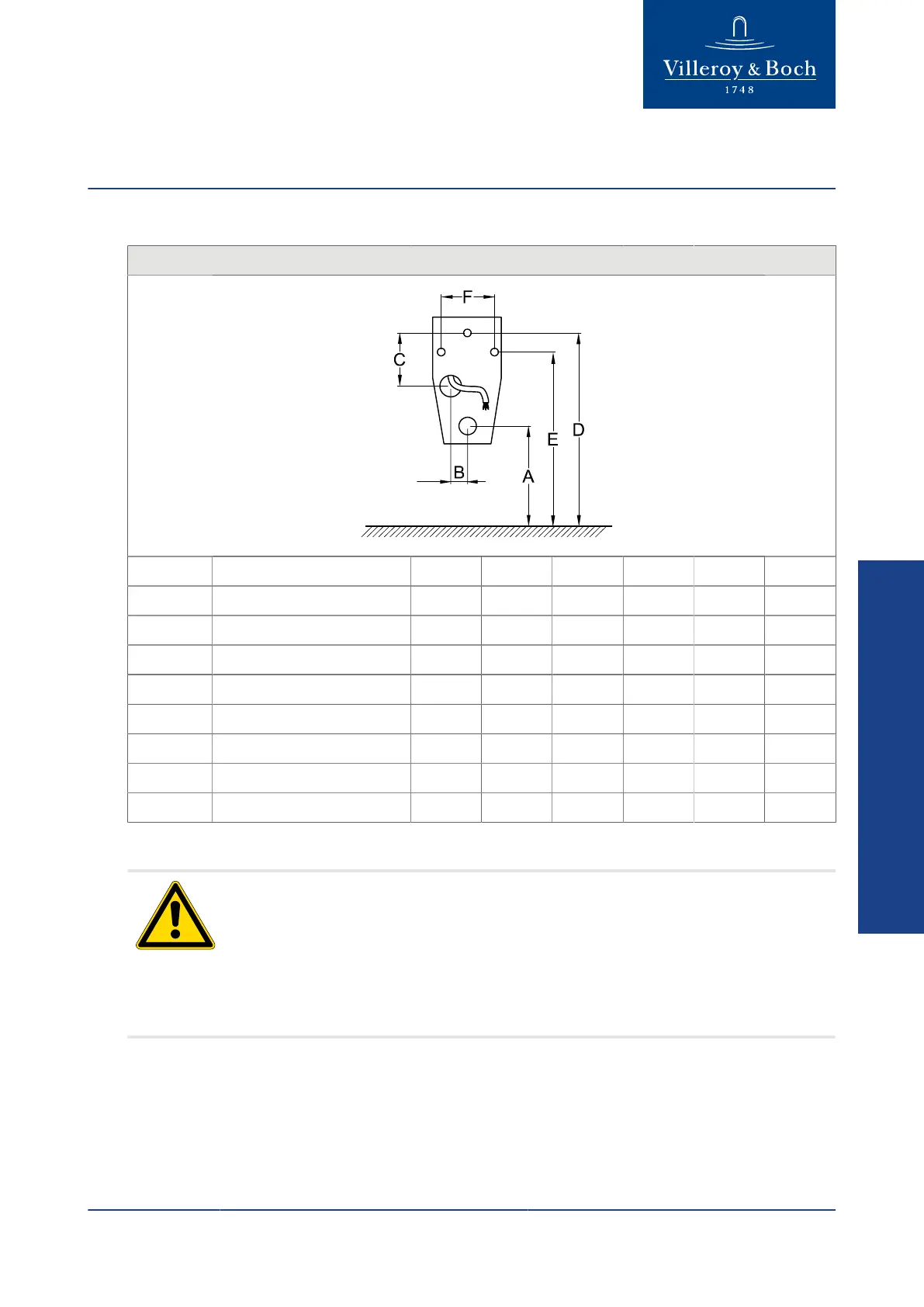

Mounting dimensions for mains power supply
Mounting dimensions + position of power outlet for mains model
Art. no. Collection A [mm] B [mm] C [mm] D [mm] E [mm] F [mm]
5586 Architectura 350 70 300 825 675 235
5587 Architectura 350 70 300 825 675 235
5574 Architectura 390 70 300 870 685 260
7507 O.novo / Omnia 390 70 110 815 635 245
7557 O.novo / Omnia 430 60 200 800 720 200
7527 O.novo / Omnia 395 50 240 815 740 210
7513 Subway 405 50 260 825 680 180
5504 Venticello 405 50 260 825 680 190
Connecting to the mains power supply
Warning!
Electrocution from touching live components!
Severe injury and even death can be the consequences.
For a mains model, the mains connection must be made exclusively by electricians.
Do not insert or pull out the mains plug with wet hands.
When carrying out work, make sure that the power lead is disconnected from the mains and
secured against reconnection.
Connect power supply unit to the 220V power supply. We recommend connecting via the separately-available
adapter art. no. 91905700 (optional).
EN
S. 57
