Vimar Elvox Giotto Series User Manual

Monitor technical specifications
- Wall-mounted monitor in ABS
- Backing plate and plugs for wall-mounted fixture or 3-module
box.
- TFT LCD 3,5”
- Electronic circuit on interchangeable cards.
- Standard video signal CCIR 625 lines 50 squares for 6329
and PAL for 6329/C, 6329/CD.
- Video pass band 4 MHz
- Operating temperature from 0° to +40° C.
- Electronic ringtone.
- Input for door calls with different ringtone from panel calls.
- Output for additional ringtone type 860A.
- Supply of data from bus.
- Input for additional power supply (type 6923) if the system is
configured to enable simultaneous activation of more than
two monitors.

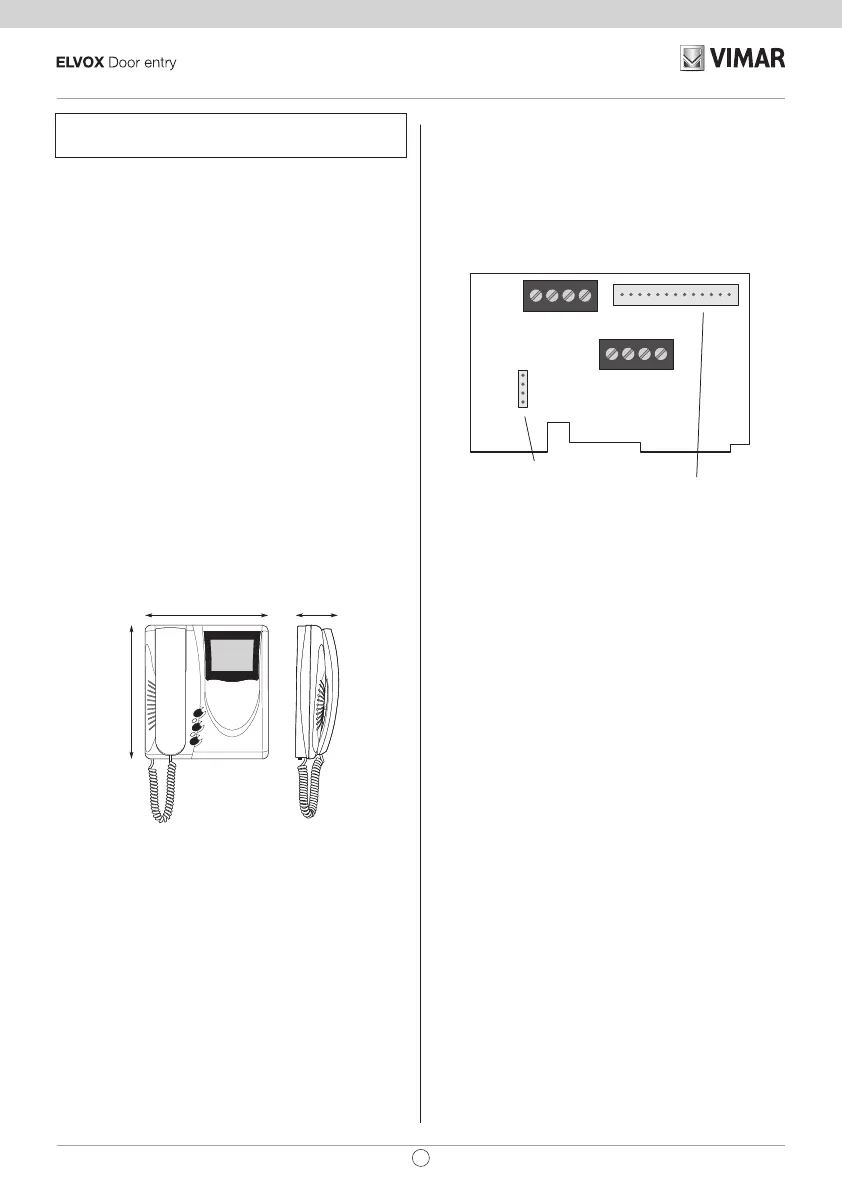

Fig. 1
DESCRIPTION
Type 6329 and 6329/C and 6329/CD are interphones in the
Giotto series respectively with B/W (6329) and colour screen
(6329/C, 6329/CD) for Due Fili Plus video door entry systems.
They are supplied as standard with 3 pushbuttons, one for lock
release, one for self-start of the monitor in the system even
when not called, and one for the auxiliary “stair light” service.
Supplied with call volume adjustment on 3 levels and call mute.
The luminous indicators of: call signal mute, unanswered calls,
services not available and gate/door open, are signalled by
means of two LEDs (red and green) present on the monitor.
The monitor can be installed as a wall-mounted version, by
means of the bracket (R684) supplied with the monitor, or desk-
top version by means of the conversion kit type 661A or 661F.
* The item 6329/CD is designed for use with hearing aids used
by hearing impaired people. To activate it, select the “T” po-
sition on the hearing aid.
BL BIRO A+ CAA- VARIAT.
SERR.
SERIALE
PRG.
T1
T2
T3
T4
VIDEO
ELVOX
CS2350
271103
4 3 2 1
A S + BUS
12 13 V3 M
EXT. 24V
F.P.
+ -
CN2
C
B
A
CN1
1
1
2
4
5
6S
6P
-
+
T1
T2
T3
T4
Per art. 6153/682
RESET
SERRATURA
Per art. 6009 o
6009/C
Stabilizzazione
segnale video
TR1
TR2
Video signal
stabilization
For monitor
R684
Connection and connector terminal board
3, 4) Additional ringtone connection
1, 2) BUS line.
12 +, 13 -) Additional power supply for monitor with power sup-
ply type 6923.
V3, M) Connection for door call pushbutton.
CN1) Connection for monitor.
The instruction manual is downloadable from the site www.
vimar.com
