TAB: 40505
EN

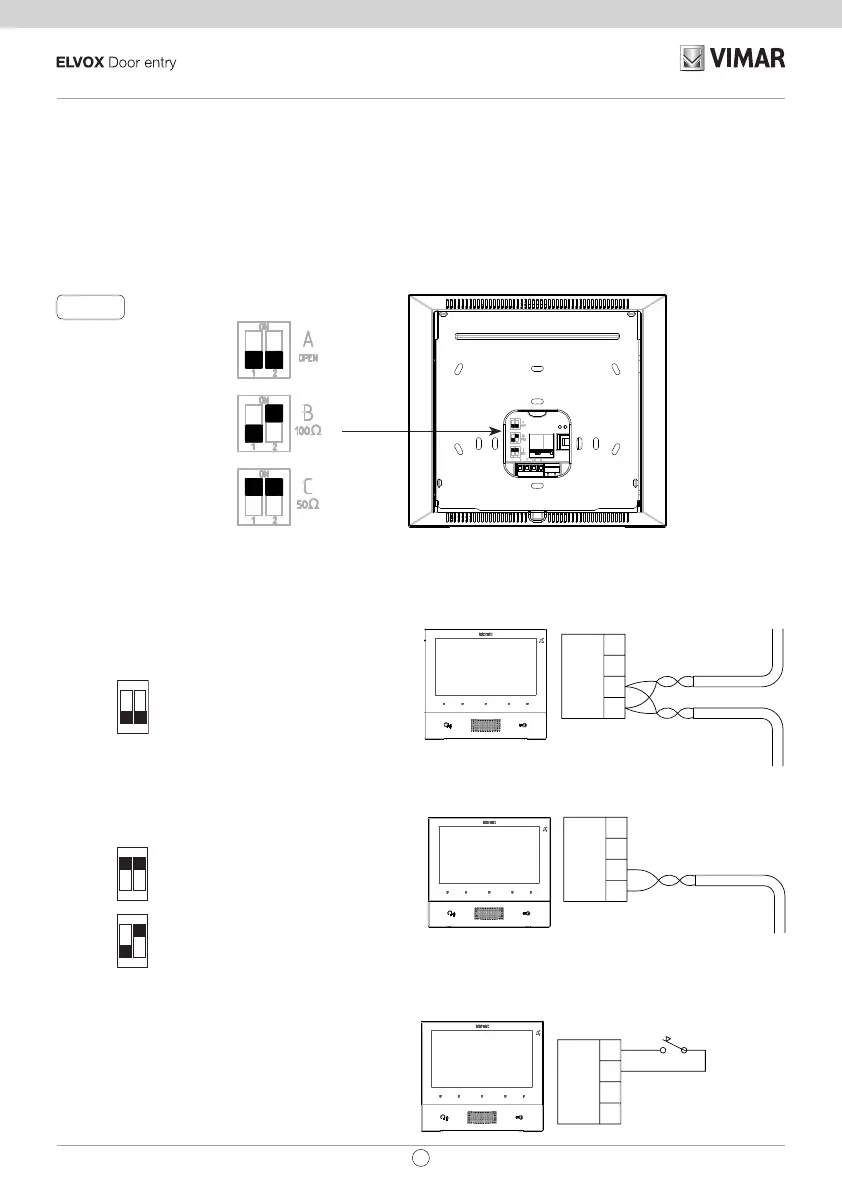

Video Termination
Select DIP switch to terminate the video signal
A) if the BUS cable enters terminals 1, 2 and continues to another indoor station.
B) when a BUS cable with a characteristic impedance of 100 Ohms(Elvox 732I or 732H cable) enters terminals 1, 2 and
the riser stops in the indoor station
C) when a BUS cable with characteristic impedance of 50 Ohms (Cat. 5 or Cat. 6 twisted pair cable) enters terminals 1, 2
and the riser stops in the indoor station.
Fig. 6
Connection
Connecting the indoor station 40505 in the in/out configuration
Cable riser
In/out wiring diagram
Wiring diagram with cable terminating in the indoor station
Variant for connecting the landing or alert push button
Connecting the FP/M terminal
2
1
FP
M
2
1
FP
M
K
C
50Ω
B
100Ω
A
OPEN
ON
12
ON
12
ON
12
C
50Ω
B
100
Ω
A
OPEN
ON
12
ON
12
ON
12
Termination to apply
Termination to be applied depending
on the characteristic impedance of
the cable
2
1
FP
M
Cable riser
Connecting the indoor station 40505 in terminal conguration
