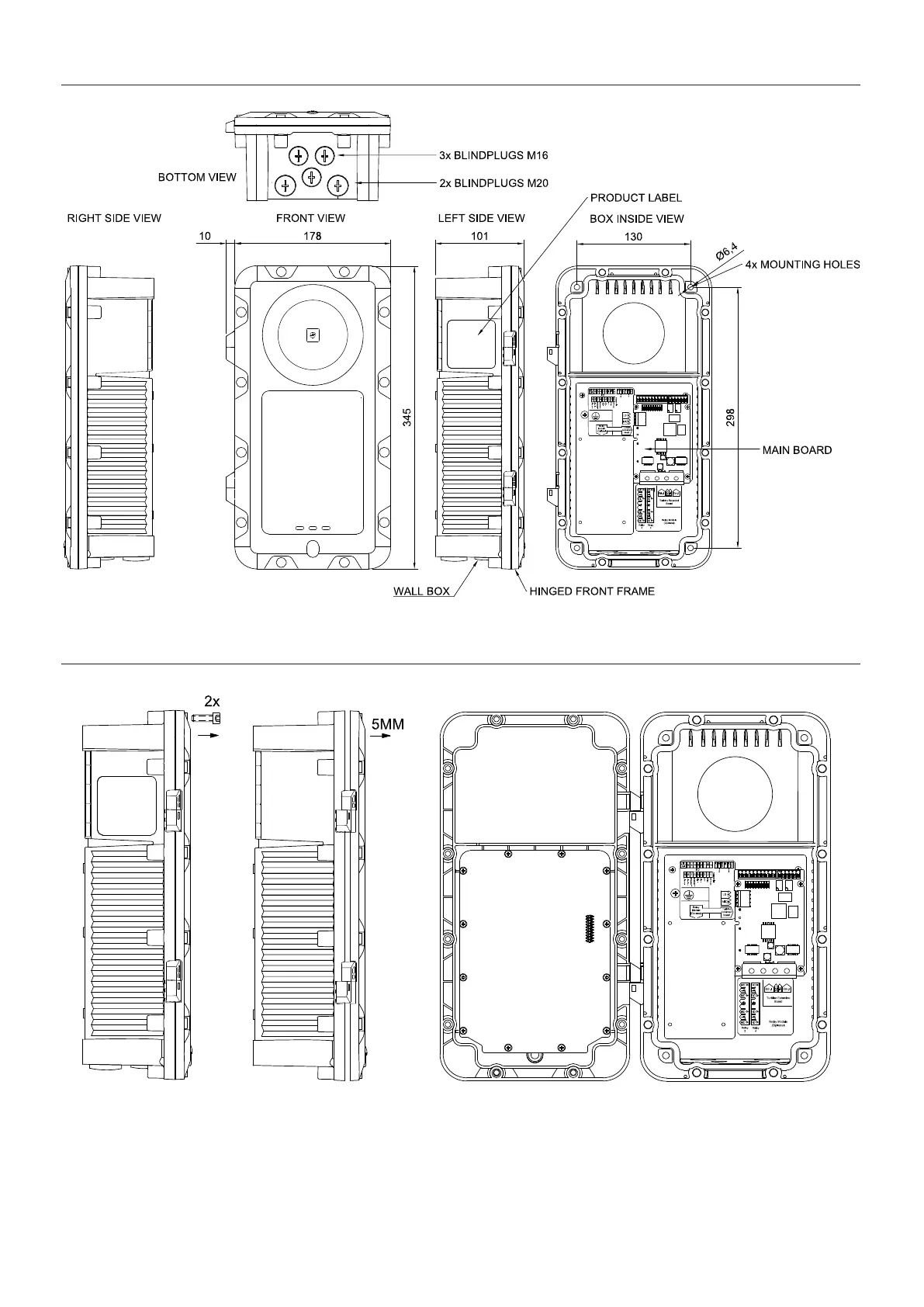

Dimensions
1 Loosen the 2 screws
securing the front frame
to the on-wall box.
2 Open the enclosure by
pulling the front frame out 5
mm, keeping it parallel to the
on-wall box. This is necessary
to get clearing for the hinges.
3 Pull the right side of the front
frame to fully open the enclosure.
Do NOT open the enclosure to the
extent that cables between the front
and back parts are pulled tight.
