Mounting the Unit

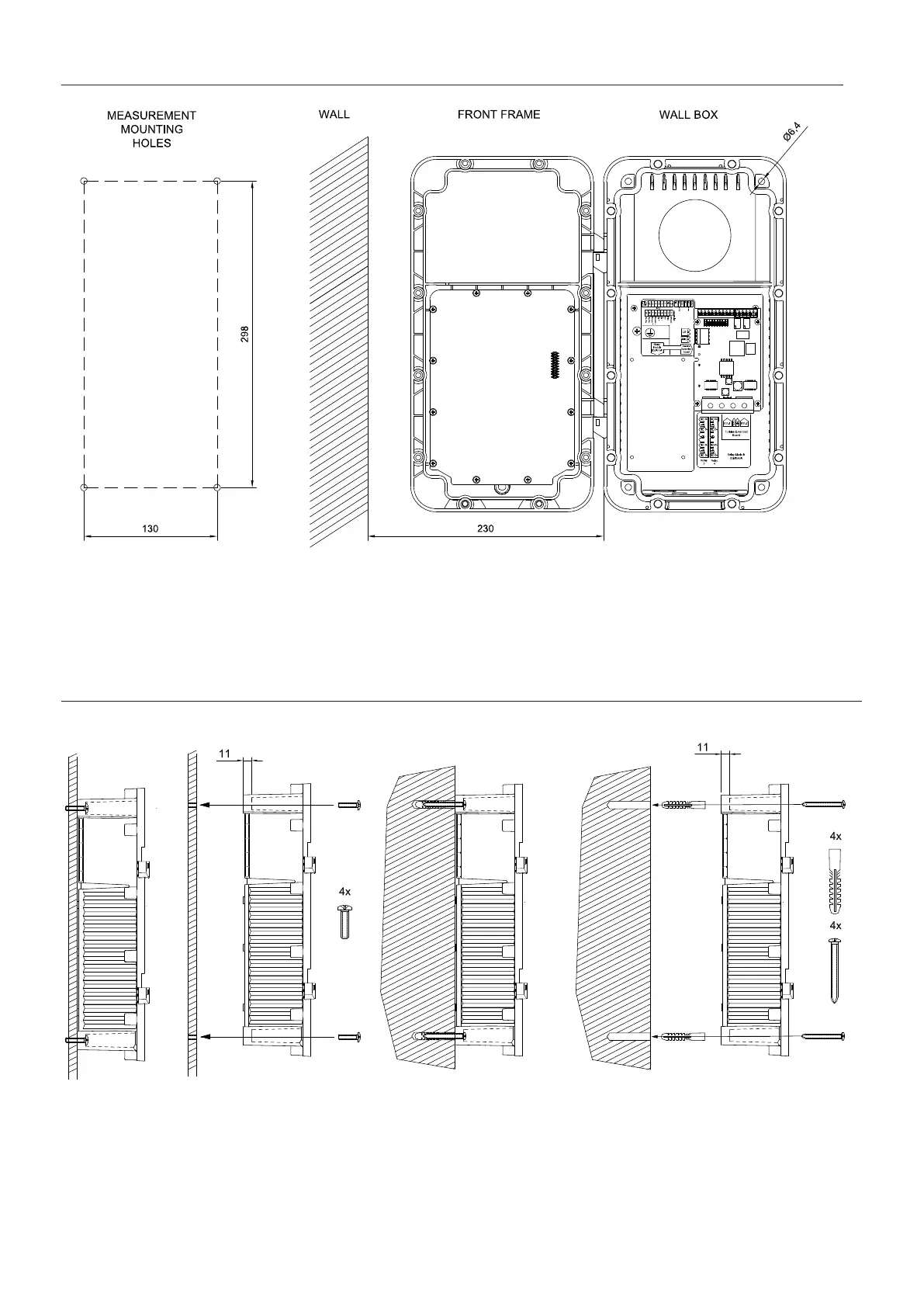

4 Preparation for Drilling
The four mounting holes in the on-
wall box are Ø6.4 mm. Distance: 298
x 130 mm. Size of hole to be drilled
depends on whether it is wall or
column mounting.
7 Wall
Fix the unit to the wall with 4 screws that t the
4 screw holes in each corner of the on-wall box
(6.4 mm diameter). Use Panhead – DIN7981
screw for plug or wooden wall.
Head diameter: 10.8 B5.5 x 38 or 45 mm.
6 Mounting Plate or Column
Fix the unit to mounting plate or
column with 4 screws that t the 4
screw holes in each corner of on-wall
box (6.4 mm diameter). Use M5 x 20
or 25 with Philips head DIN7985 or
Torx. Head diameter: 10 mm.
5 Location
Make sure there is a clearance of
minimum 230 mm on the left for
frame movement.
