Electrical Connections & Configuration

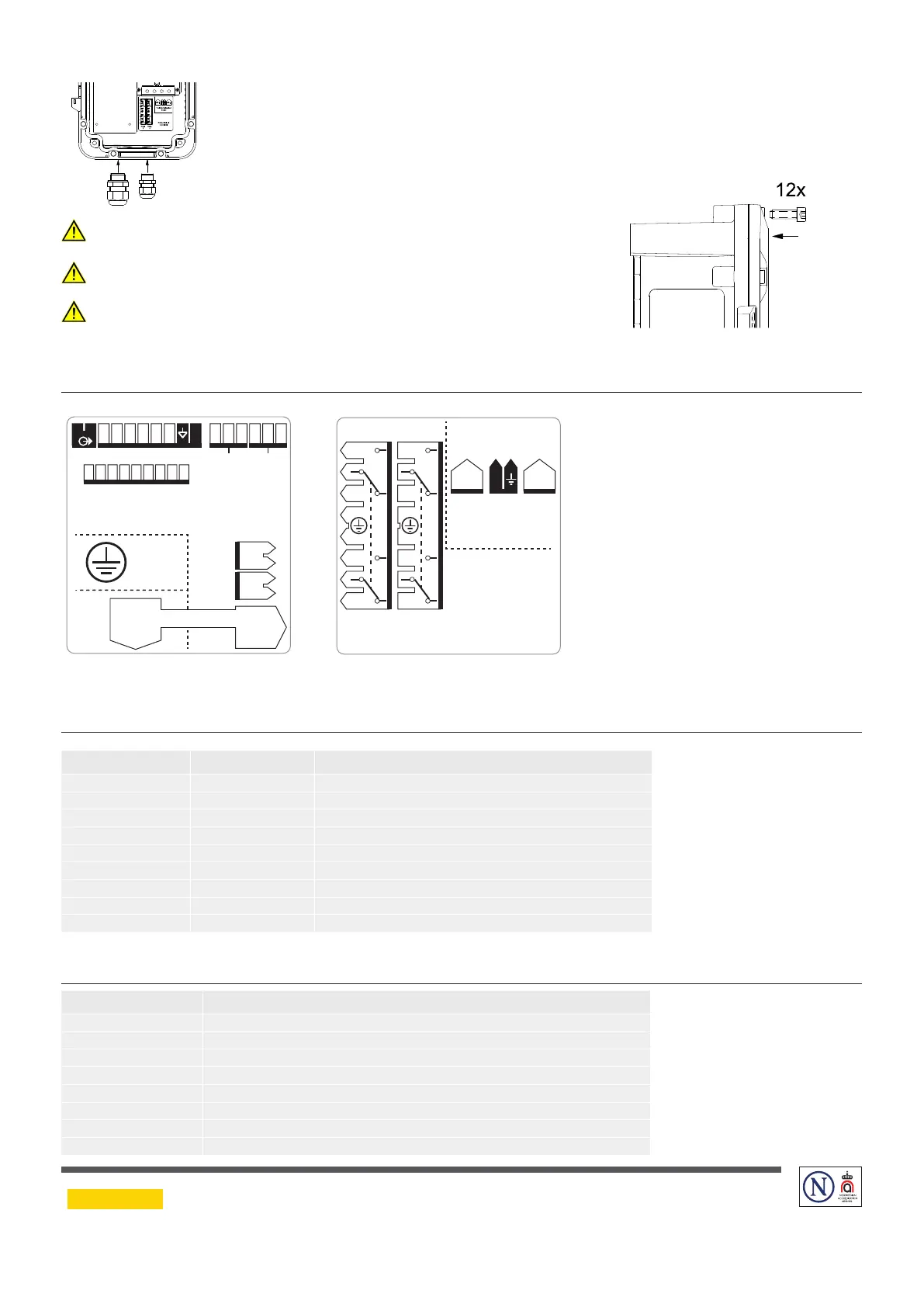

8 Mounting Cable Gland
Remove two blind plugs and insert one
M16 and one M20 cable glands. Make
sure to tighten su󰀩ciently to attain IP66
rating for watertightness but be aware
of plastic material limitations.
For complete documentation on
TFIE intercom connections and
conguration, see Turbine Stations
Conguration Manual, Doc. no.
A100K11194.
Related Documentation
Document No. Documentation
A100K11194 Turbine Stations Conguration Manual
A100K11564 TA-22B Connection Manual
A100K11565 EMMAI-1H Connection Manual
A100K11566 EMMAI-2H Connection Manual
A100K11567 TA-23 Connection Manual
A100K11457 AutoCAD Dwg. TFIE-1 Turbine Industrial IP and SIP Intercom Station
A100K11503 AutoCAD Dwg. TFIE-2 Turbine Industrial IP and SIP Intercom Station
A100K11754 AutoCAD Dwg. TFIE-6 Turbine Industrial IP and SIP Intercom Station
Accessories & Spare Parts
Item Number Item Name Item Description
2330040026 AK5850HS Ex-Approved Headset with plug
1008140225 TA-22B Plugbox with PTT Button and 10m Cable for Headset
1008140230 TA-23 Handset with PTT for TFIE/EAPII
1023533311 EMMAI-1H Exigo Handheld Industrial Microphone
1023533312 EMMAI-2H Exigo Handheld Industrial Microphone - Compact
1008140100 TA-10 Connection board with relays for TFIE/EAPII
1008140260 TA-26 Cable gland kit (10x) for TFIE/EAPII
1023594100 EGA-1 Button Protection Covers (10x) for TFIE/EAPII
1008140250 TA-25 M6 screw kit for TFIE/EAPII
In order to ensure the required minimum degree of protection,
the cable glands must be tightened securely.
Over-tightening can impair the degree of protection and damage
the unit.
When tightening the cap nut of a cable gland, a suitable tool
shall be used to prevent the gland from twisting.
A100K11575
9 Fastening Front Frame
Do NOT use more than 2.5 Nm
torque when fastening the 12
screws into the front frame.
Turbine
Extended
board
+5
6 5 4 3 2 1
+-
2 1
NC NO COM NC NO COM
I/O
LS
MIC
+
-
+
-
Relay
Module
(Optional)
Accessories
9 17 6 5 4 3 28
Ohook GND PTT Mic + Mic - Speaker + Speaker - Line in + Line in -
Eth. 1 Eth. 2
Turbine Extended
Board
Relay Module
(Optional)
Relay
3
NO
NC
NO
NC
Relay
4
NO
NC
NO
NC
+24
