Vintec V40SG 2e - Dimensional Drawings for Built-in Installation; V50 Built-in Installation Requirements

18

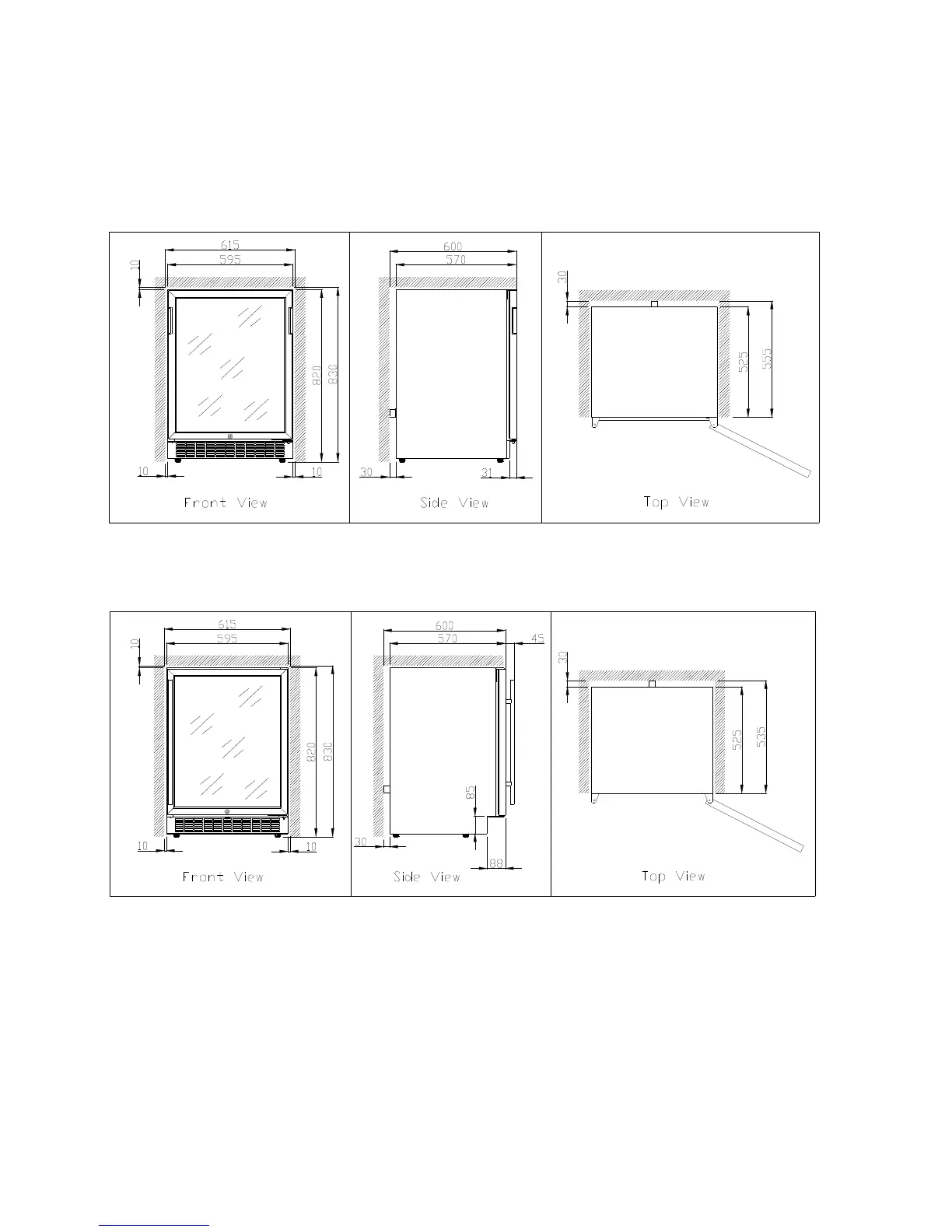

Dimensional drawings:
V40’s (30mm recess plinth)
V40’s (85mm recess plinth)
V50’s Installation instructions
1. Wine Cabinet dimensions :
Height 874mm – 880mm
Width 605mm
Depth 598.5mm
2. This wine cabinet is not designed to be fully integrated behind a joinery door.
