Vintec V50DG 2e - Dimensional Drawings and Specifications; V40 Plinth Recess Dimensions; V50 Cabinet Dimensions and Integration

18

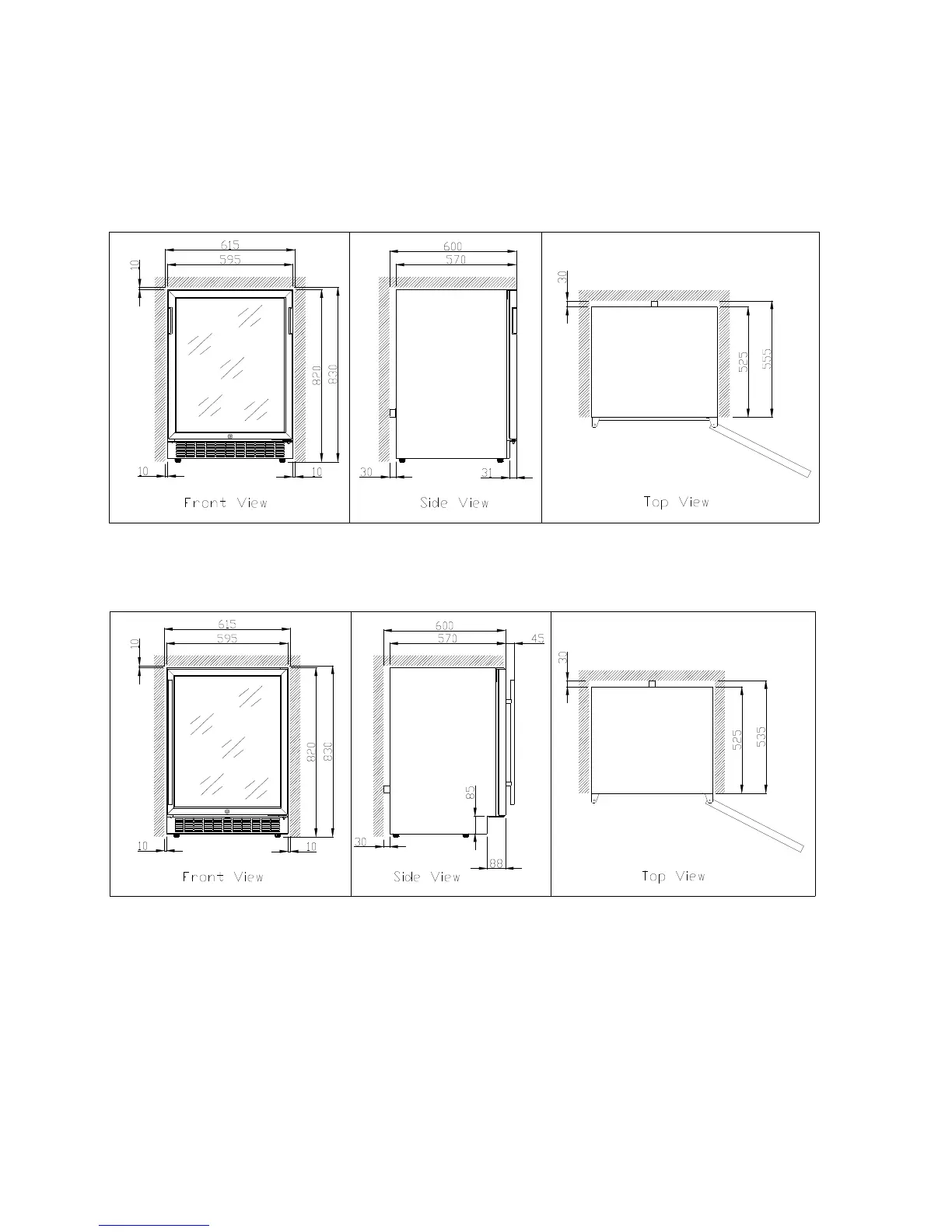

Dimensional drawings:
V40’s (30mm recess plinth)
V40’s (85mm recess plinth)
V50’s Installation instructions
1. Wine Cabinet dimensions :
Height 874mm – 880mm
Width 605mm
Depth 598.5mm
2. This wine cabinet is not designed to be fully integrated behind a joinery door.
