Operators guide
23
Repositioning the wedge adaptor
The wedge adaptor (see ‘Fitting the camera’ on page 14) is secured by four cap-head screws
which pass through the wedge adaptor into the slide plate.
To reposition the wedge adaptor [26], proceed as follows:
Engage the centre lock [22] (see (Fig. 5) on page 16) and remove the payload.
Hold the body of the wedge adaptor [26] and use a hexagon wrench (4 mm) to remove
the four securing screws [28].
Reposition the wedge adaptor [26] on the slide plate [17], ensuring that the narrow end
of the wedge adaptor faces forwards.
Insert the four screws [28] in the holes in the wedge adaptor and tighten.
Pan and tilt brake adjustment
The pan and tilt brakes should be set so that the brakes begin to be applied after approximately
one-third of the lever travel (Fig. 11).
The tilt brake is adjusted by inserting a hexagon wrench (2 mm) through the hole in the bottom
of the tilt unit cover and turning the grub screw [4.1].
To adjust the tilt brake, proceed as follows:
Warning!
Overlong screws will prevent the slide plate from operating. Always use
the screws provided (M6 x 30 mm).

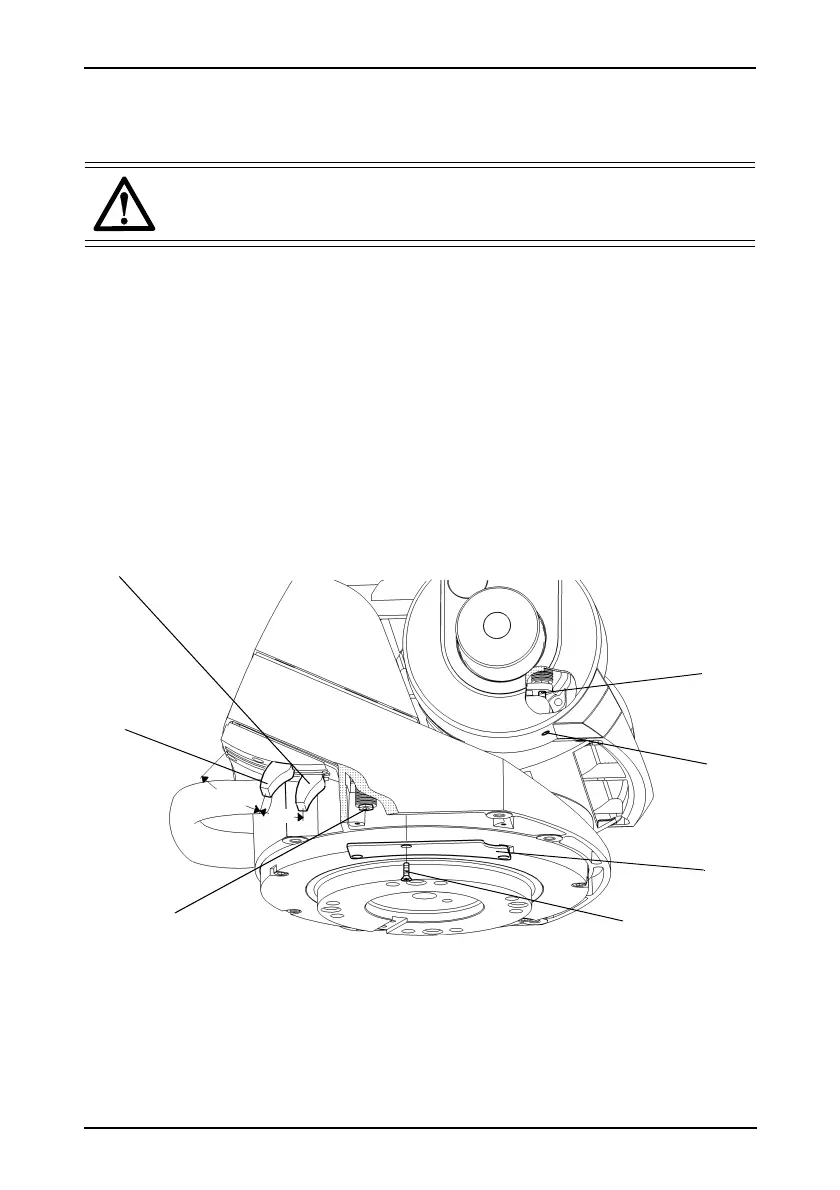

Fig. 11 Adjusting the pan and tilt brakes
2/3
[4.1]
[4.2]
[3.1]
[3.2]
[3.3]
[[4]
[3]
1/3
