Pull the hose (P.4) out of its stowage (P.2). Connect the hose to the pedestal charging valve
(21).
Position the pump between the legs, standing with both feet on the fold-down feet (P.3).
Grip the handle (P.1) with both hands and, using full steady strokes, pressurize the pedestal
to the required pressure. Do not exceed the maximum working pressure, indicated by the
leading edge of the red sector on the gauge (22).
Disconnect the hose (P.4) from the pedestal charging valve, but do not refit the Schrader
valve cap at this stage. Fit the hose in its stowage (P.2).
Push the pump plunger fully down, push in the handle release button (P.5) and move the
handle (P.1) to the vertical position, where it will lock the pump plunger in the closed posi-
tion.
Fold up both the feet (P.3).

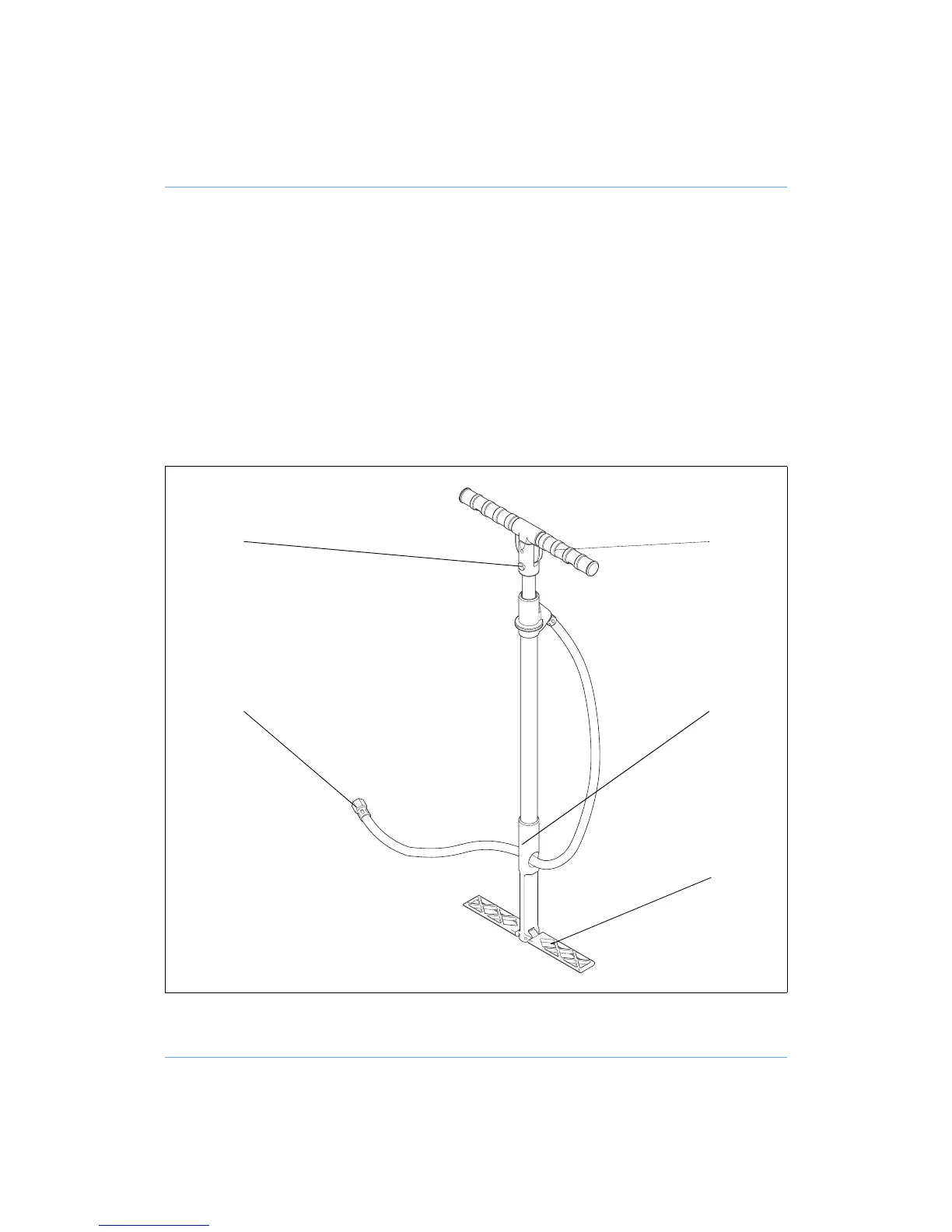

Vinten portable pump
(P.1)
(P.5)
(P.2)
(P.4)
(P.3)
