Vinten Vision Ped Plus - Bottom Clamp Adjustment

18
Bottom clamp adjustment
When applied finger-tight, the ‘V’ notch on the bottom clamp knob (18) should be within the limits
shown. To adjust the bottom clamp:
Remove the hole plug (18.3). Remove the screw (18.2) and washer (18.1) securing knob
(18) to the spindle (18.4).
Remove the knob and turn the spindle (18.4) clockwise until finger-tight.
Replace the knob (18) on the spindle (18.4) so that the ‘V’ notch on the clamp knob is within
the limits shown.
Degrease screw (18.2), coat with Loctite 222E and secure knob with washer (18.1) and
screw (18.2). Replace hole plug (18.3).

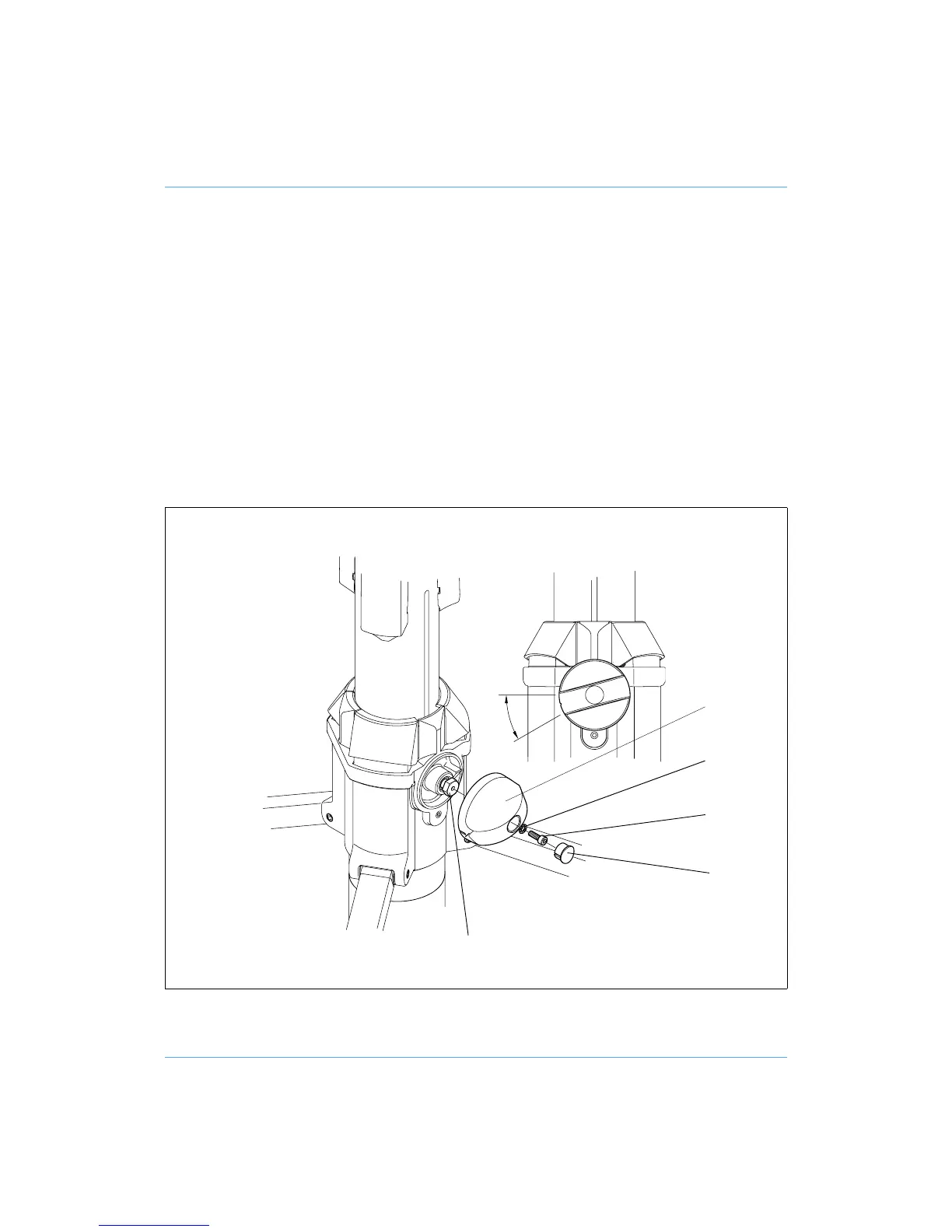

Bottom clamp adjustment
(18)
(18.4)
(18.2)
(18.3)
(18.1)
30°
