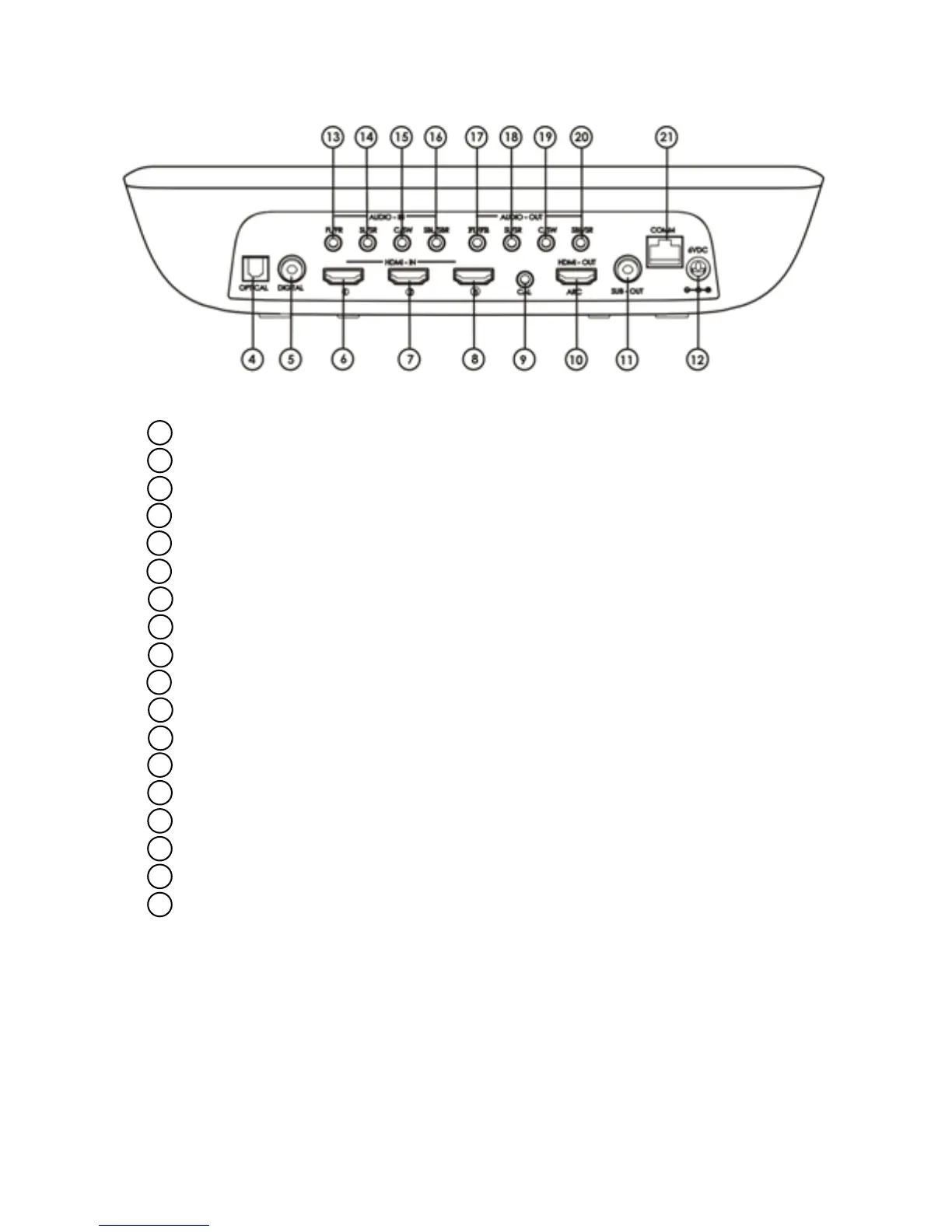

4 Optical input (TOS link cable)
5 Coaxial input (RCA cable)
6 HDMI input 1
7 HDMI input 2
8 HDMI input 3
9 Calibration input (to be used only during setup)
10 HDMI output
11 Subwoofer output (RCA cable)
12 Power input
13 FL/FR Stereo input (3.5mm connector) for 8 channel analog
14 SL/SR Stereo input (3.5mm connector) for 8 channel analog
15 C/SUBW Stereo input (3.5mm connector) for 8 channel analog
16 BL/BR Stereo input (3.5mm connector) for 8 channel analog
17 FL/FR Stereo output (3.5mm connector) for 8 channel analog
18 SL/SR Stereo output (3.5mm connector) for 8 channel analog
19 C/SUBW Stereo output (3.5mm connector) for 8 channel analog
20 BL/BR Stereo output (3.5mm connector) for 8 channel analog
21 COMM port (for debug only)
