Viora Pristine - Diamond Tip TM Hand Piece; Systems Block Diagram

Service and Maintenance
Version: F
Field: Service Documents
Number : MK- 028
Page 11 of 23
Subject: Pristine Service Manual
3.1.3. Diamond Tip
TM
Hand Piece
The Diamond Tip
TM
hand piece is equipped with a variety of treatment tips featuring
different coarseness and exfoliation grades to enable a specified treatment per patient.
The User Manual provides detailed explanations about each tip and its uses.

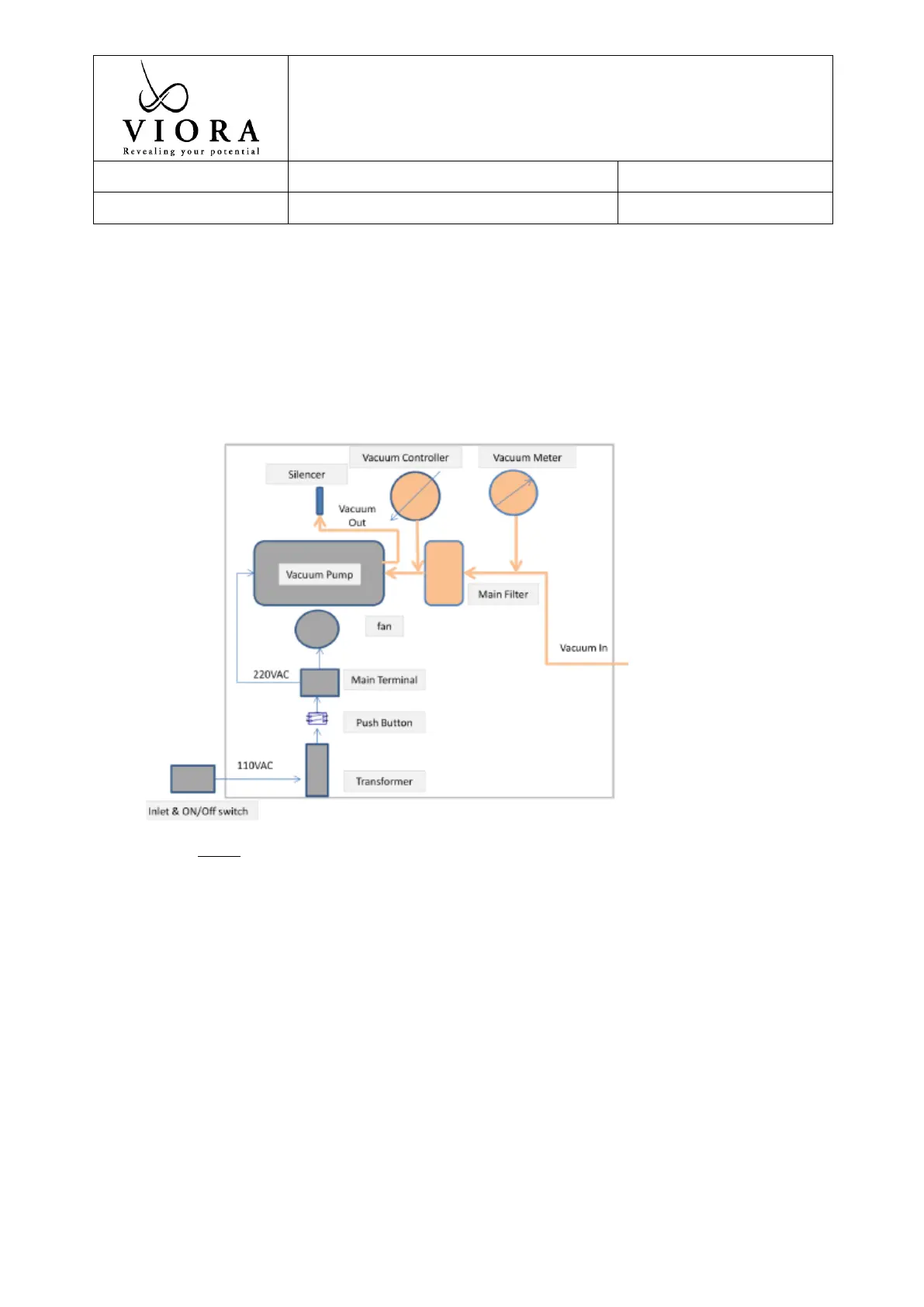

3.2.1. System Block Diagram
Note: The above block diagram defines 110V AC systems. In 220VAC systems there
is no transformer.
