Subject: Pristine Service Manual
6.3. Replacing the back On/Off Rocker Switch
- Disconnect the internal wires that are connected to the switch from the inside of the system (Figure
14).
- Push out the switch (from the internal side of the system towards outside), using a thin flat
screwdriver.
- Put in a new switch and connect the internal wires from the inside the system.

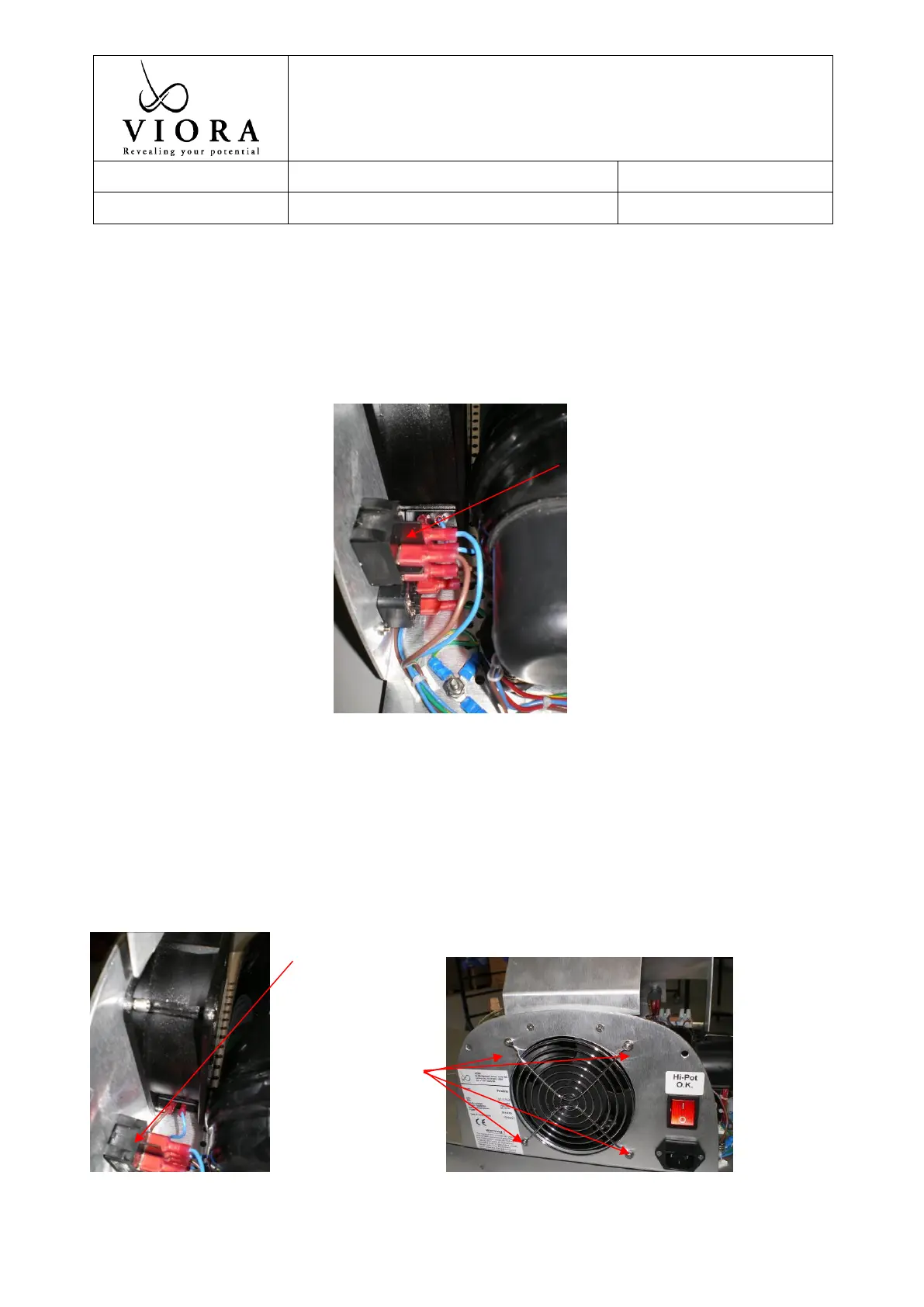

Figure 14. On/Off Rocker switch wires
6.4. Replacing the fan
- Disconnect the fan wires from the block terminal (Figure 15).
- Unscrew the four 8-32 screws securing the fan into place (Figure 16).
- Replace the fan with a new one.
- Screw on the four screws.
- Reconnect the 2 fan wires to the terminal block
Figure 15. Fan terminal block Figure 16. Location of fan screws
On/Off Rocker
switch wires
