6.5. Replacing the compressor
- Disconnect the compressor electricity harness connection (blue and brown wires), from the terminal
block and the ground (green and yellow wires) from the compressor (Figure 17).
- Loosen the screw of the compressor capacitor from inside the system (Figure 18).
- Disconnect the vacuum system from the compressor vacuum inlet by pulling the pipe out of the
vacuum inlet.
- Loosen the 4 X M8 nylock nuts (Figure 19) that connect the compressor to the system’s body, and
replace the compressor with a new one.

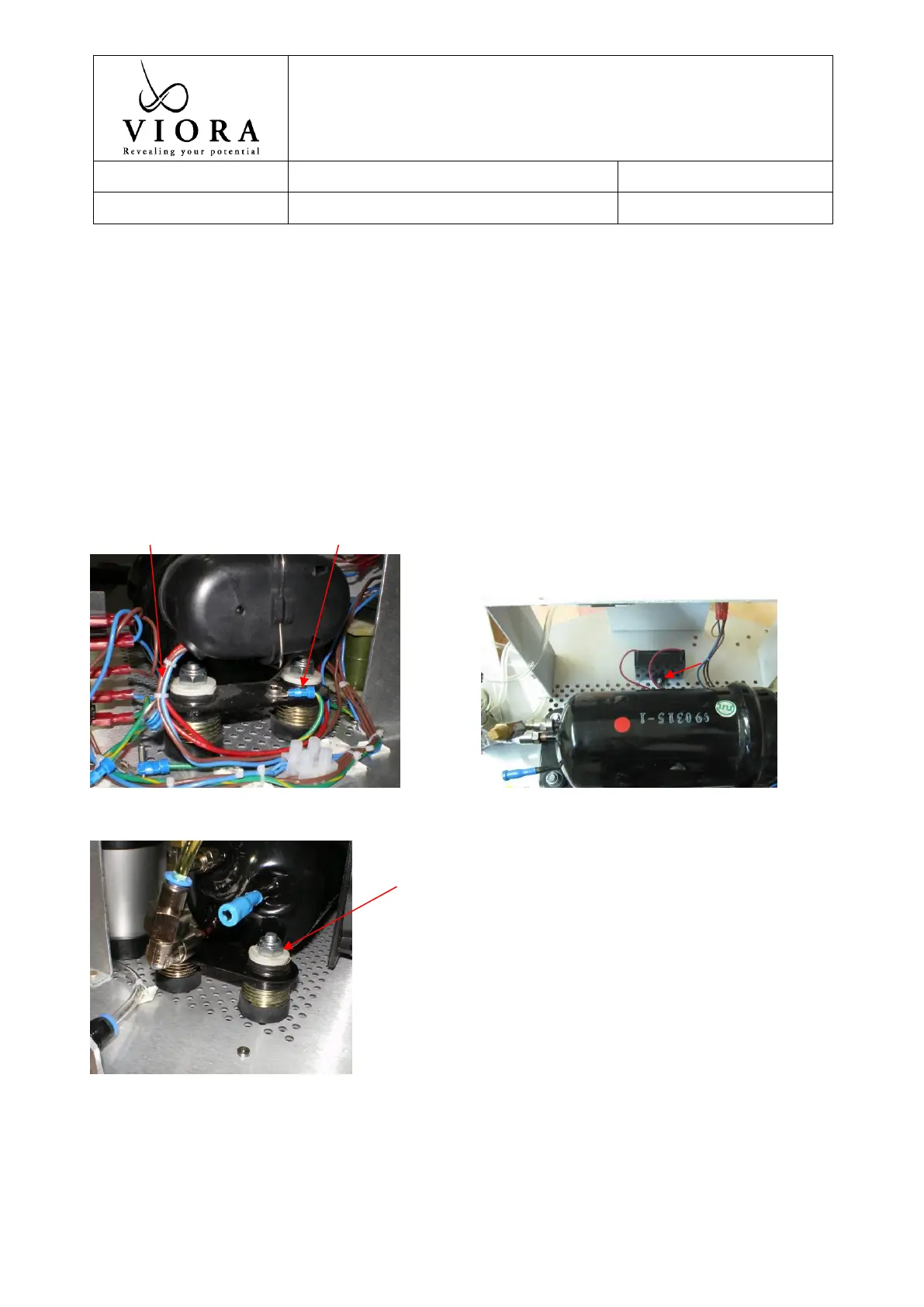

Figure 17. Compressor harness and ground Figure 18. Location of capacitor screw
Figure 19. Location of M8 nylock nuts
